WR340 Waveguide Coaxial Adapter Flange: UDR, 2.2GHZ to 3.3GHz, 716-Female Connector
FT-RF Horn Antenna
10 out of
10
-
Description & Specification

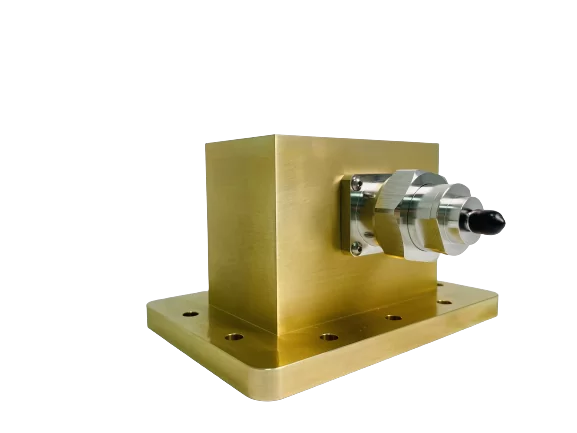

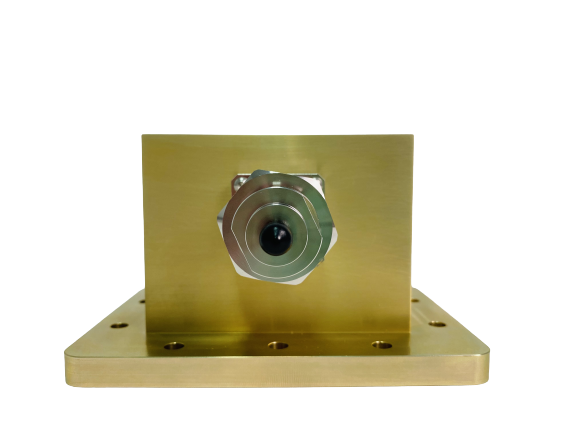

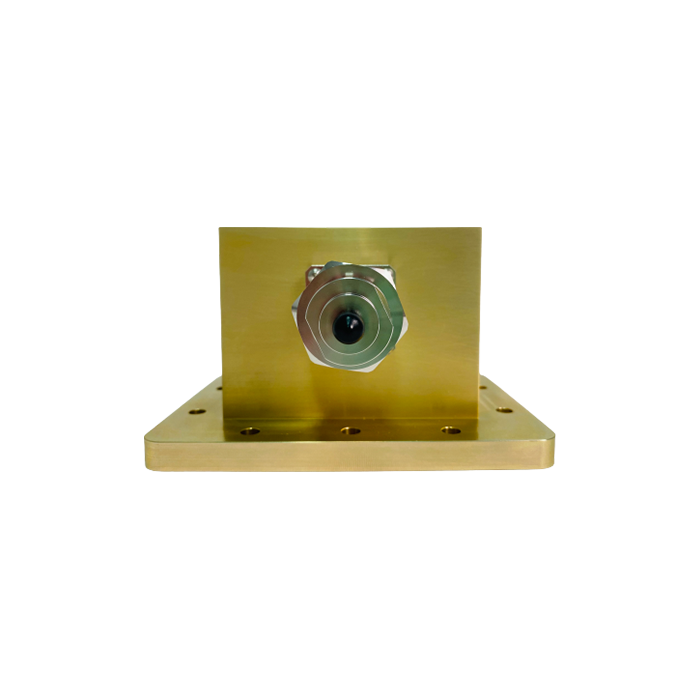

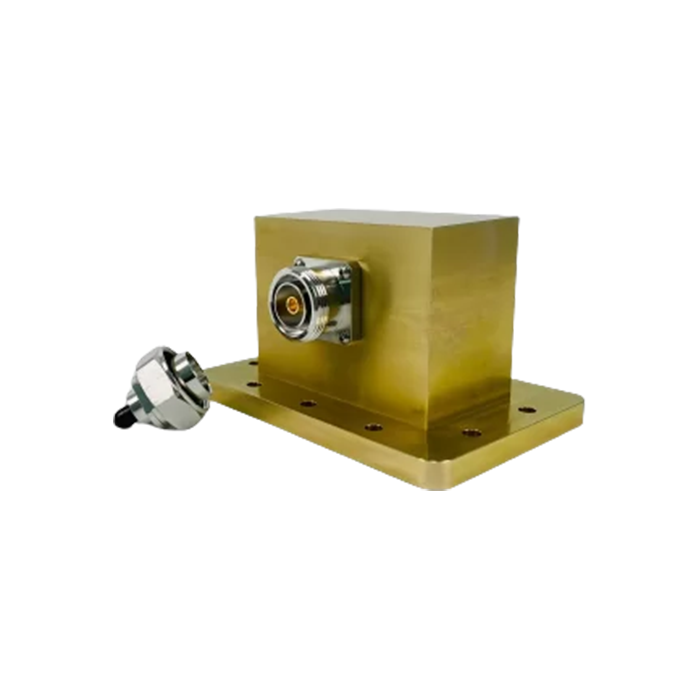

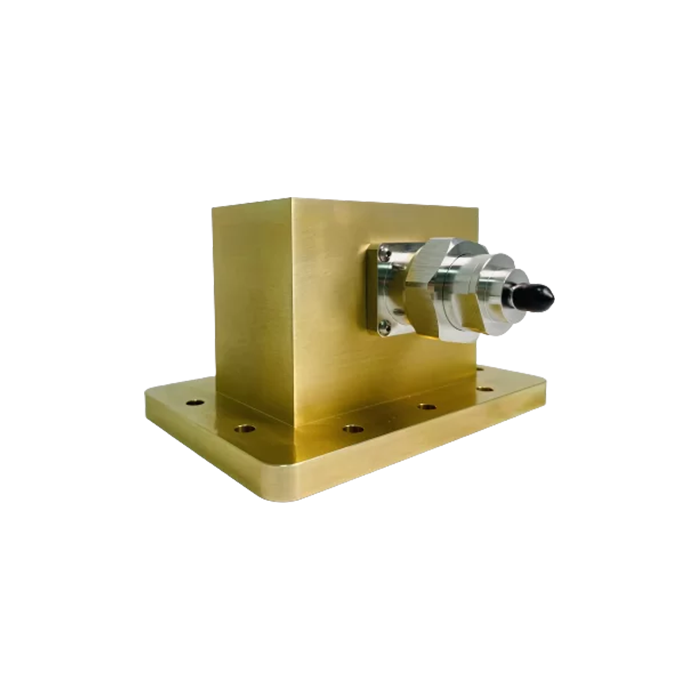

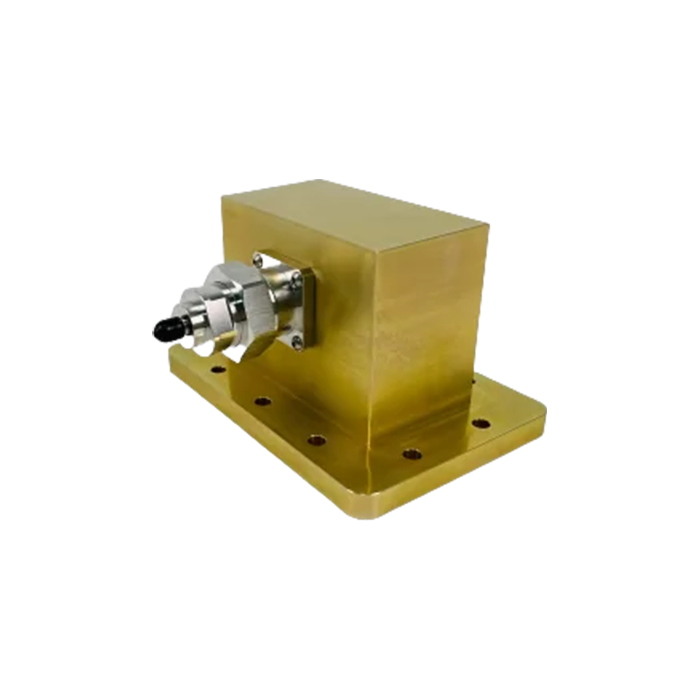

WC-340-PDR-716F Waveguide to Coaxial Adapter
Precision S-Band Transition | High-Power WR-340 Standard | 2.2 to 3.3 GHz
The WC-340-PDR-716F is a high-performance Waveguide to Coaxial Adapter professionally optimized for the WR-340 standard. Operating within the 2.2 GHz to 3.3 GHz frequency spectrum (S-Band), this precision component ensures an ultra-low-loss transition for superior Signal Integrity. Featuring a heavy-duty 7/16-Female connector interface and a standardized PDR Flange configuration, it reliably handles high-power continuous wave inputs up to 1000 Watts (1kW CW) with an optimized maximum VSWR of 1.25. Expertly CNC-machined from premium high-conductivity aluminum alloy in Taiwan, it is engineered as the definitive choice for radar system integration, satellite communications links, and advanced RF laboratory measurement fields.
RF & Power Performance
| Frequency Range | 2.2 to 3.3 GHz (S-Band) |
| V.S.W.R (Max) | 1.25 |
| Maximum Power Handling | 1000 Watts (CW) |
Mechanical & Construction Data

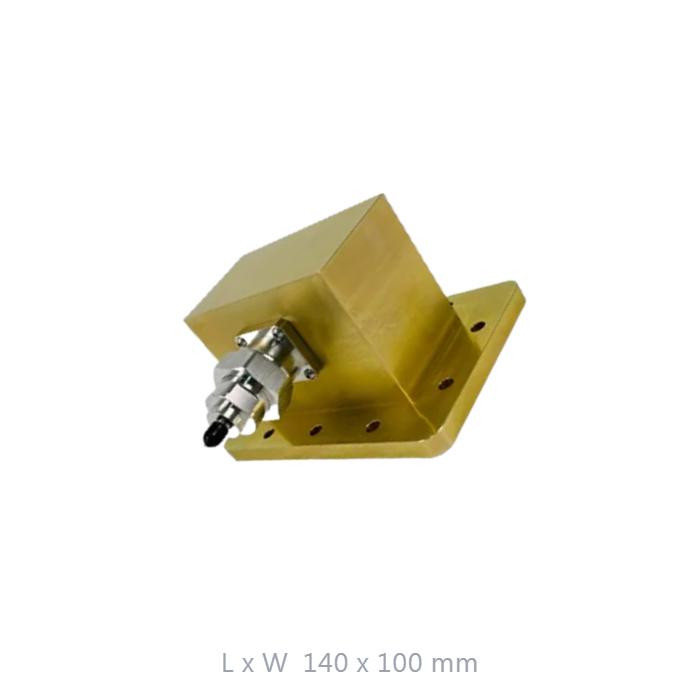

| Waveguide Size / Standard | WR-340 (WG9A / R26) |
| Waveguide Flange Interface | PDR Style (Rectangular) |
| Coaxial Connector Port | 7/16-Female |
| Dimensions (W x H x L) | 95.3 x 138.1 x 80 mm |
| Net Weight | 520 g |
| Body Material | High-Conductivity Aluminum Alloy |
| Manufacturing Origin | Taiwan Design & Manufactured (FT-RF) |
S-Band Optimization
Specifically calibrated for the 2.2 to 3.3 GHz range to provide stable power transition and low insertion loss, critical for high-fidelity microwave measurements.
High-Power 7/16 DIN Port
Equipped with a robust 7/16-Female connector to ensure superior RF signal integrity, lower intermodulation distortion, and extreme power handling up to 1kW.
Taiwanese Engineering Excellence
Precision designed and manufactured in Taiwan under strict quality controls, providing dependable structural flatness and enduring phase consistency.
Standard WR-340 PDR Flange
Precisely machined to meet standard rectangular WR-340 flange geometries, ensuring secure, low-leakage mechanical coupling into existing RF hardware systems.
Inquire About S-Band Solutions
Contact our engineering team to request individualized data plots, custom flange alignments, or alternative coaxial connector setups.
