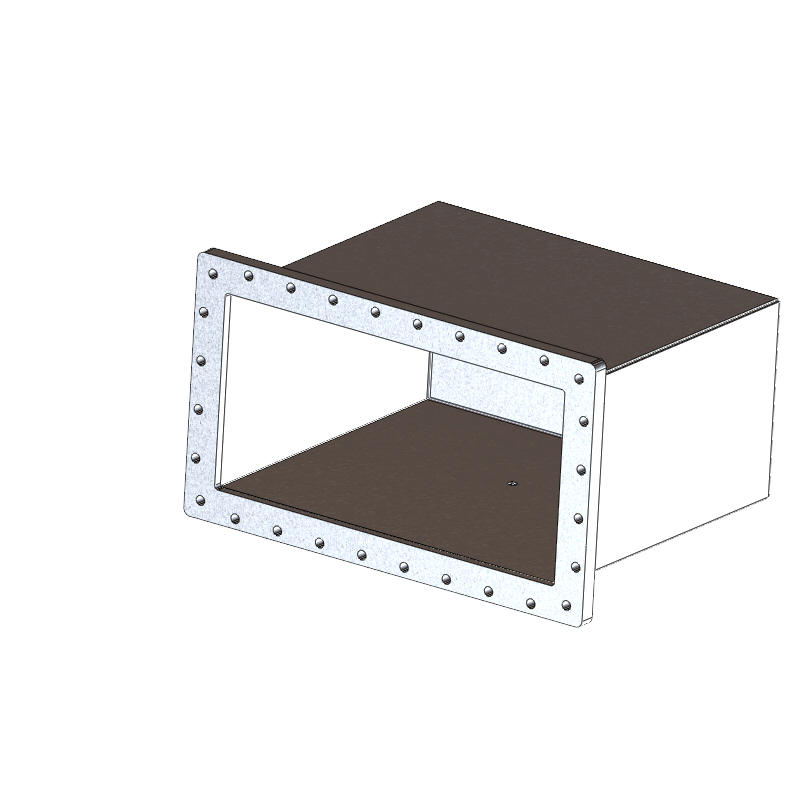

WC-2100-UDR-NF Waveguide to Coaxial Adapter
13KG Infrastructure Class | Precision WR-2100 UHF Architecture | 350 MHz – 530 MHz
The WC-2100-UDR-NF represents the pinnacle of large-scale RF engineering. Built for the WR2100 waveguide standard, this adapter operates in the ultra-low UHF frequency range of 350 MHz to 530 MHz. It is a colossal unit, weighing 13kg and exceeding 60cm in width, designed to serve as a foundational component for WR2100 Standard Gain Horn Antennas. With a power handling capacity of 3000 Watts (3KW CW), its massive aluminum body ensures exceptional thermal management and structural rigidity for high-power physics research, military radar, and heavy-duty broadcast applications. Expertly developed and manufactured in Taiwan, it is built to satisfy the most demanding industrial and high-power scientific measurement benchmarks.
Electrical Specifications
| Frequency Range | 350 MHz to 530 MHz (UHF / P-Band Overlap) |
| V.S.W.R (Max) | 1.3 : 1 |
| Maximum Power Handling | 3000 Watts (3KW CW) |
Env. & Mechanical Specifications
| Waveguide Size | WR-2100 (R4) |
| Flange Type | UDR (Standard Rectangular) |
| Coaxial Connector Type | N-Female |

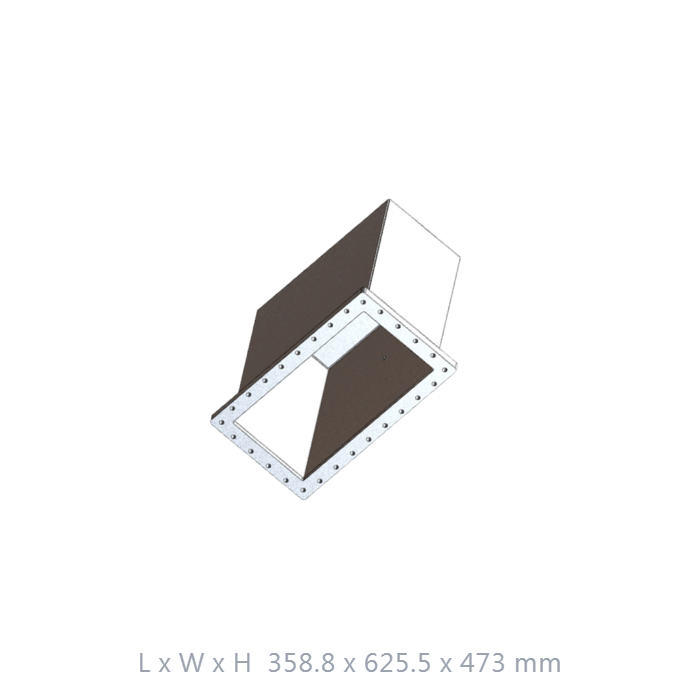

| Dimensions (L x W x H) | 358.8 x 625.5 x 473 mm |
| Net Weight | 13000 g (13 kg) |
| Body Material | High-Grade Machined Aluminum |
| Manufacturing Origin | Taiwan Design / Made in Taiwan (FT-RF) |
The WR2100 Titan
Specifically machined to interface with the enormous standardized apertures of WR2100 waveguides, enabling seamless transmission of long-wavelength signals (350+ MHz).
3KW Power Capacity
Engineered to safely transmit 3000 Watts of continuous power, critical for high-energy radar systems and broadcast transmitters.
Taiwanese Engineering Excellence
Precision-manufactured in Taiwan with rigorous quality control, providing reliable phase stability and enduring laboratory-grade consistency.
13KG Structural Anchor
The 13kg mass acts as a stable anchor for large antenna systems, minimizing vibration and ensuring precise mechanical alignment over long-term operations.
Get a Quote / Customization
Contact our engineering team to discuss specialized logistics regarding heavy cargo shipping, alternative interface ports, or customized structural modifications.
