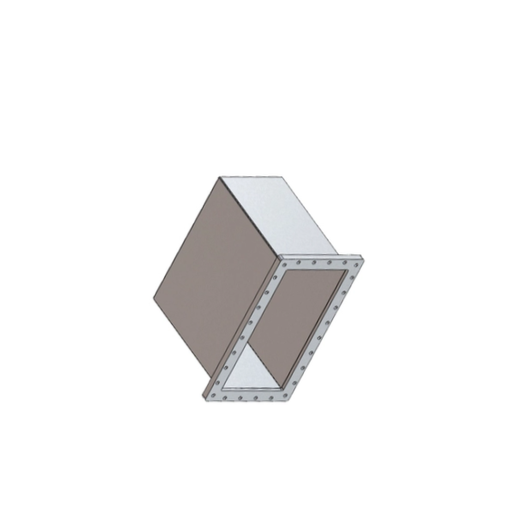

WC-2100-UDR-716 Waveguide to Coaxial Adapter
7/16 DIN High-Power Interface | Heavy-Duty WR-2100 Standard | 350 MHz – 530 MHz
The WC-2100-UDR-716 is an industrial-grade Waveguide to Coaxial Adapter specifically engineered for the WR-2100 standard. Operating within the 350 MHz to 530 MHz UHF band, this heavy-duty 13kg component is ideal for pairing with standard gain horn antennas in professional EMI/EMC testing and antenna measurement ranges. Featuring a robust 7/16 DIN Female connector, it manages continuous power loads up to 3000 Watts (3kW CW) with a maximum VSWR of 1.3 : 1, ensuring high-fidelity Signal Integrity for large-scale RF systems. Expertly manufactured in Taiwan, it is built to satisfy the most demanding high-power industrial and scientific measurement standards.
Electrical & RF Performance
| Frequency Range | 350 MHz to 530 MHz |
| V.S.W.R (Max) | 1.3 : 1 |
| Maximum Power Handling | 3000 Watts (3kW CW) |
| Impedance | 50 Ohm |
Mechanical & Construction
| Waveguide Standard | WR-2100 / R4 / WG2 |
| Waveguide Flange | UDR Style (Universal) |
| Coaxial Connector Type | 7/16 DIN Female |

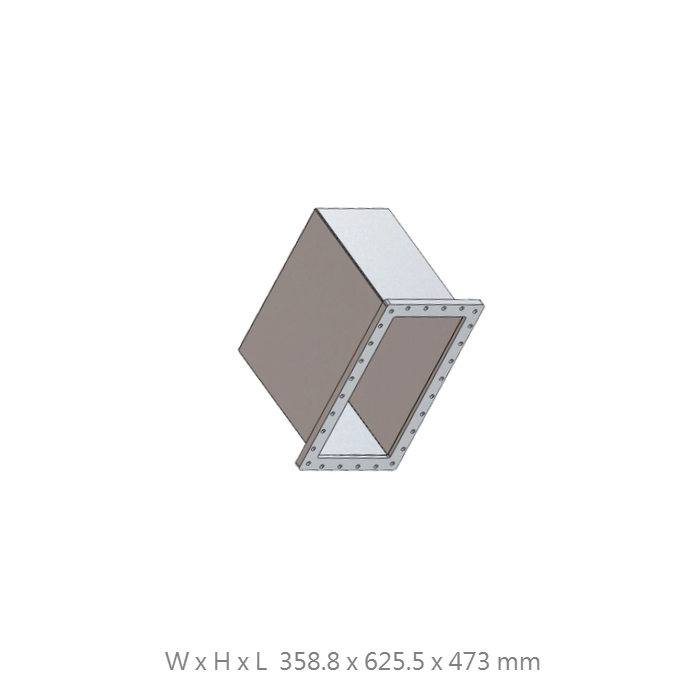

| Dimensions (W x H x L) | 358.8 x 625.5 x 473 mm |
| Net Weight | 13,000 g (13 kg) |
| Body Material | High-Grade Machined Aluminum |
| Manufacturing Origin | Taiwan Design / Made in Taiwan (FT-RF) |
3kW High-Power Domination
Designed to handle massive continuous power loads, providing a robust transition for high-power UHF broadcast station feeds and industrial RF transmitter sub-systems.
Low-Loss 7/16 DIN Interface
Equipped with a precision 7/16 DIN Female connector for superior power handling and lower intermodulation distortion compared to standard coaxial interfaces.
Taiwanese Engineering Excellence
Precision-manufactured in Taiwan with rigorous quality control, providing reliable phase stability and enduring laboratory-grade consistency.
Heavy-Duty Build Quality
Weighing 13kg with high-fidelity machining, this adapter ensures maximum mechanical stability and long-term structural durability in demanding high-power environments.
Request a Professional Quote
Contact our engineering team to obtain individual V.S.W.R plots, customized flange drilling, or alternative waveguide adapter designs.
