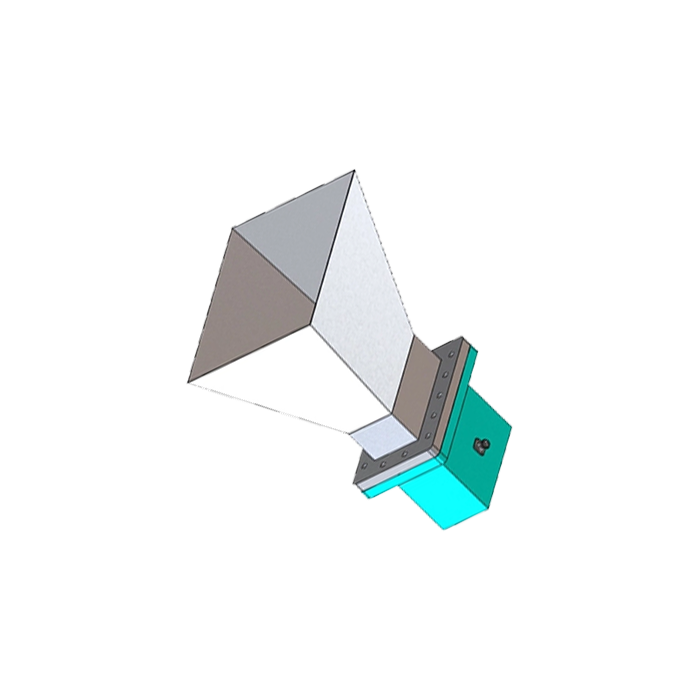

HS-770-UDR-10A-NF Standard Gain Horn Antenna
0.97 GHz to 1.45 GHz | 10 dBi Gain | WR-770 Waveguide
The HS-770-UDR-10A-NF is a high-precision Standard Gain Waveguide Horn Antenna professionally engineered by Fei Teng Wireless Technology Co., Ltd. (FT-RF). Operating within the 0.97 GHz to 1.45 GHz frequency range , it delivers a stable directional gain of 10 dBi. This antenna consists of the WI-770-UDR-10 horn input and the WC-770-UDR-NF coaxial adapter. Manufactured in Taiwan , it features a WR-770 waveguide styling with a UDR flange and a premium SUS-303 Stainless Steel N-Female connector, ensuring high reliability for radar systems and wireless communication testing.
Technical Specifications
Electrical Specifications
| Frequency Range | 0.97 GHz - 1.45 GHz |
| Gain | 10 dBi |
| V.S.W.R | 1.3 : 1 |
| -3dB Beam-width (H-plane) | 56° |
| -3dB Beam-width (E-plane) | 56° |
| Maximum Power Handling | 2000 W |
| Connector | Stainless Steel N-Female (SUS-303) |
Mechanical Specifications

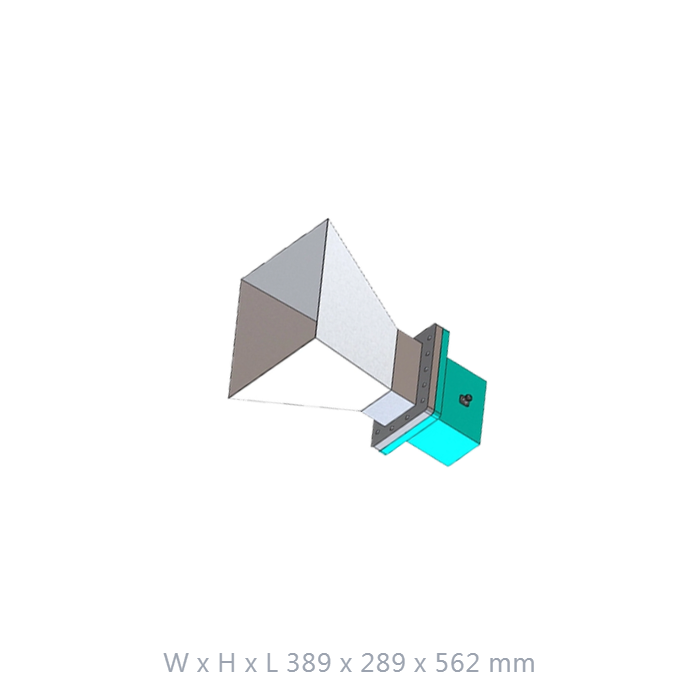

| Dimensions (W x H x L) | 389 x 289 x 562 mm |
| Weight | 6800 g (6.8 kg) |
| Waveguide Size | WR-770 (EIA Standard) |
| Waveguide Flange | UDR |
| Body Material | High-Grade Aluminium Alloy |
| Origin | Taiwan Design, Made in Taiwan |
Key Features
Broadband Microwave Coverage
Seamlessly covers the 0.97 - 1.45 GHz range, making it ideal for L-band radar and communication calibration.
Seamlessly covers the 0.97 - 1.45 GHz range, making it ideal for L-band radar and communication calibration.
High Power Capability
Reliably manages up to 2000W of power, suitable for active high-intensity signal transmission testing.
Reliably manages up to 2000W of power, suitable for active high-intensity signal transmission testing.
Stable Directional Performance
Engineered for uniform gain and balanced 56° beamwidths across the operating bandwidth.
Engineered for uniform gain and balanced 56° beamwidths across the operating bandwidth.
Rugged Construction
Built with a durable aluminum body and stainless steel connectors to ensure mechanical stability in laboratory environments.
Built with a durable aluminum body and stainless steel connectors to ensure mechanical stability in laboratory environments.
Linear Polarization
Supports both vertical and horizontal polarization to meet diverse measurement requirements.
Supports both vertical and horizontal polarization to meet diverse measurement requirements.
Precision Engineering
Designed and manufactured in Taiwan to meet stringent industrial RF testing standards.
Designed and manufactured in Taiwan to meet stringent industrial RF testing standards.
