HS-770-UDR-15A-NF Standard Gain Horn Antenna
0.97 GHz to 1.45 GHz | 15 dBi High Gain | WR-770 Waveguide

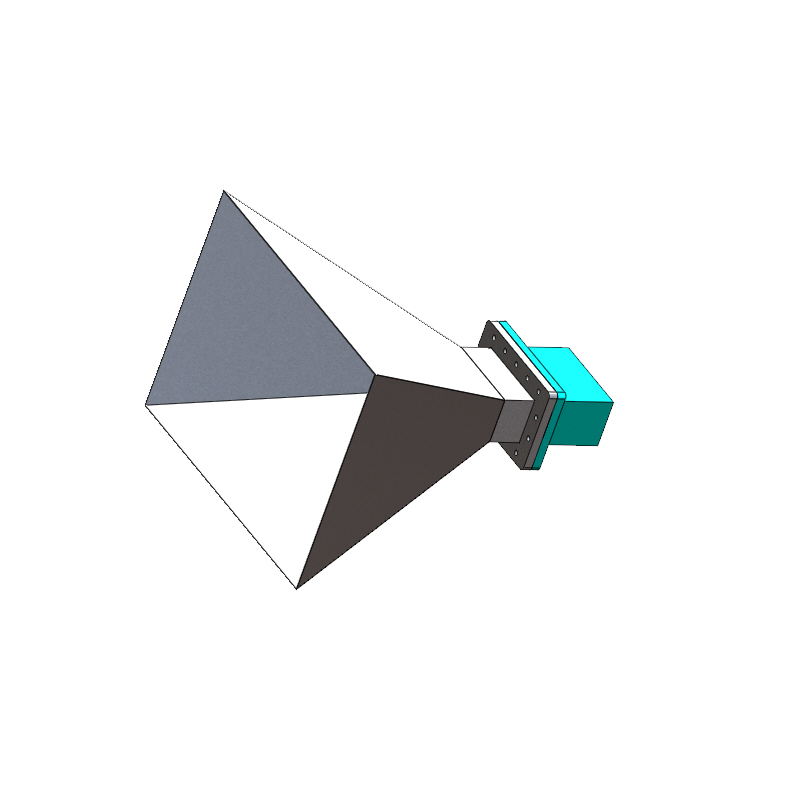

The HS-770-UDR-15A-NF is a precision-engineered Standard Gain Waveguide Horn Antenna developed by Fei Teng Wireless Technology Co., Ltd. (FT-RF). Optimized for the 0.97 GHz to 1.45 GHz frequency range, this antenna provides a high directional gain of 15 dBi. Constructed in Taiwan, it features a WR-770 waveguide styling with a UDR flange and is equipped with a premium WC-770-UDR-NF coaxial adapter featuring a high-integrity N-Female (SUS-303) connector. It is designed for maximum structural integrity and reliable performance in high-power applications up to 2000W.
Technical Specifications
Electrical Specifications
| Frequency Range | 0.97 GHz - 1.45 GHz |
| Gain | 15 dBi |
| V.S.W.R | 1.3 : 1 |
| Polarization | Vertical or Horizontal |
| Maximum Power Handling | 2000 W |
| Connector | N-Female (SUS-303 Stainless Steel) |
Mechanical Specifications

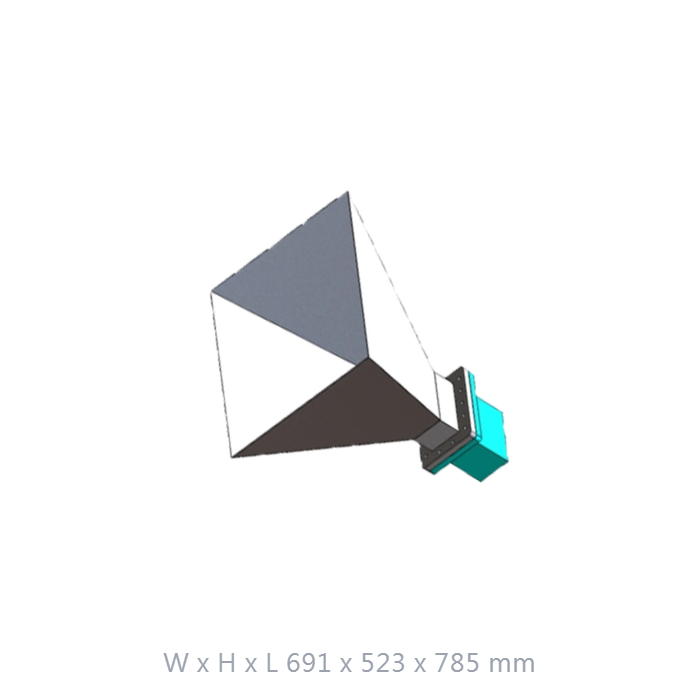

| Dimensions (W x H x L) | 691 x 523 x 785 mm |
| Weight | 8900 g (8.9 kg) |
| Waveguide Size | WR-770 |
| Waveguide Flange | UDR |
| Body Material | High-Grade Aluminum Alloy |
| Origin | Taiwan Design, Made in Taiwan |
Key Features
L-Band Navigation Optimization
Specifically tuned for the 0.97 - 1.45 GHz spectrum, providing high accuracy for L-band radar and satellite testing.
Specifically tuned for the 0.97 - 1.45 GHz spectrum, providing high accuracy for L-band radar and satellite testing.
Superior High Gain
Delivers a reliable 15 dBi gain profile, making it an ideal reference antenna for precision laboratory measurements.
Delivers a reliable 15 dBi gain profile, making it an ideal reference antenna for precision laboratory measurements.
Ultra-High Power Tolerance
Reliably manages up to 2000W of power, suitable for active high-intensity signal transmission and jamming simulations.
Reliably manages up to 2000W of power, suitable for active high-intensity signal transmission and jamming simulations.
Rugged SUS-303 Connector
Equipped with a premium stainless steel N-Female connector to ensure stable signal integrity and long-term durability.
Equipped with a premium stainless steel N-Female connector to ensure stable signal integrity and long-term durability.
Robust Aluminum Build
Manufactured with a durable aluminum alloy body to ensure mechanical stability in professional lab and field environments.
Manufactured with a durable aluminum alloy body to ensure mechanical stability in professional lab and field environments.
Taiwan Engineering
Precision designed and manufactured in Taiwan to meet the highest international RF testing standards.
Precision designed and manufactured in Taiwan to meet the highest international RF testing standards.
Contact Us
For pricing, data sheets, or technical support regarding the HS-770-UDR-15A-NF, please contact us:
