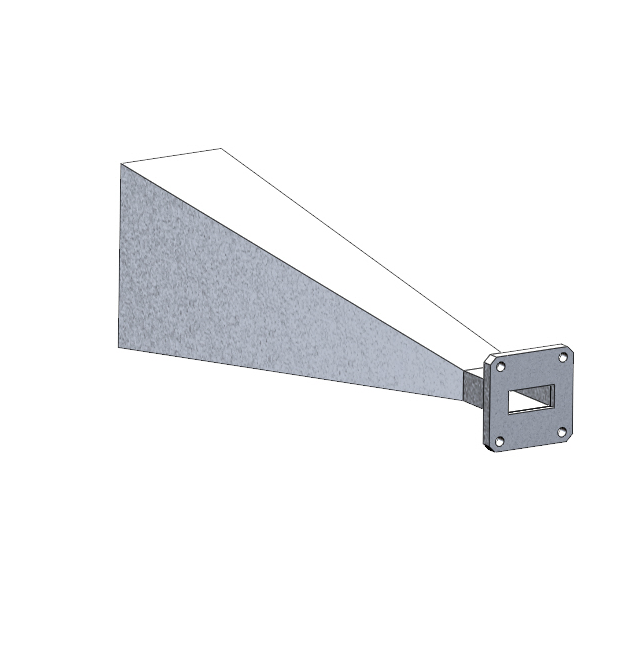

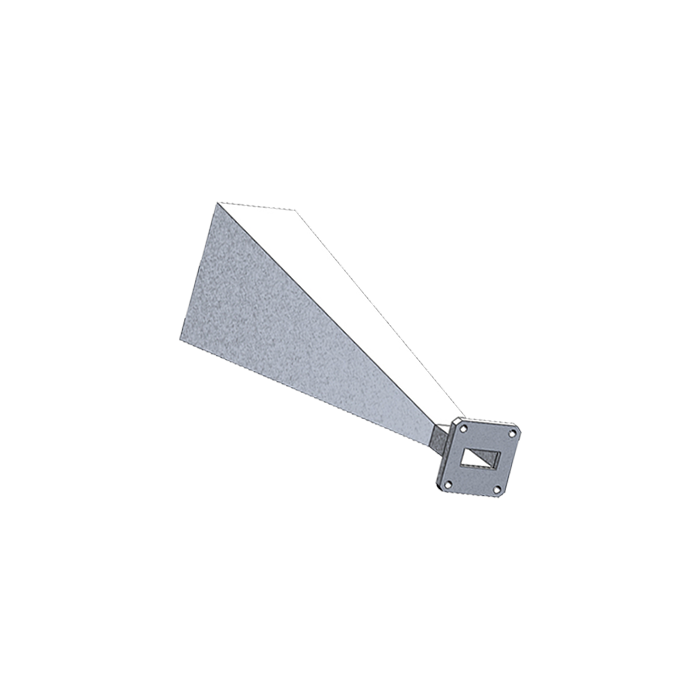

8.2 GHz to 12.4 GHz WR-90 Sectoral Horn Antenna
Model: WI-90-UBR-20 | 20 dBi Gain | 500W CW Power
The WI-90-UBR-20 is a high-performance Sectoral Waveguide Horn Antenna professionally engineered by Fei Teng Wireless Technology Co., Ltd. (FT-RF) for strict compliance with the WR-90 standard. Operating within the 8.2 GHz to 12.4 GHz X-Band spectrum, this antenna delivers a consistent and precision-calibrated 20 dBi gain. Featuring a Direct Waveguide Input with a standardized UBR UG-39/U flange, it ensures low-loss power transfer for high-energy applications up to 500 Watts (CW). Manufactured from high-grade structural aluminum alloy via precision CNC machining in Taiwan, it exhibits exceptional electromechanical longevity and excellent pattern stability. It stands as an essential instrument for EMI/EMC testing, antenna gain characterization, and precision radar calibration setups demanding uncompromised performance parameters.
Electrical & RF Performance
| Frequency Range | 8.2 to 12.4GHz |
| Waveguide Standard | WR-90 / R100 / WG16 Layout Architecture |
| Nominal Gain | 20 dBi |
| V.S.W.R (Max) | 1.3 : 1 |
| -3dB Beamwidth (H-Plane) | 12° |
| -3dB Beamwidth (E-Plane) | 91° |
| Maximum Power Handling | 500 Watts (CW) |
| Impedance | 50 Ohm |
Mechanical & Construction Data

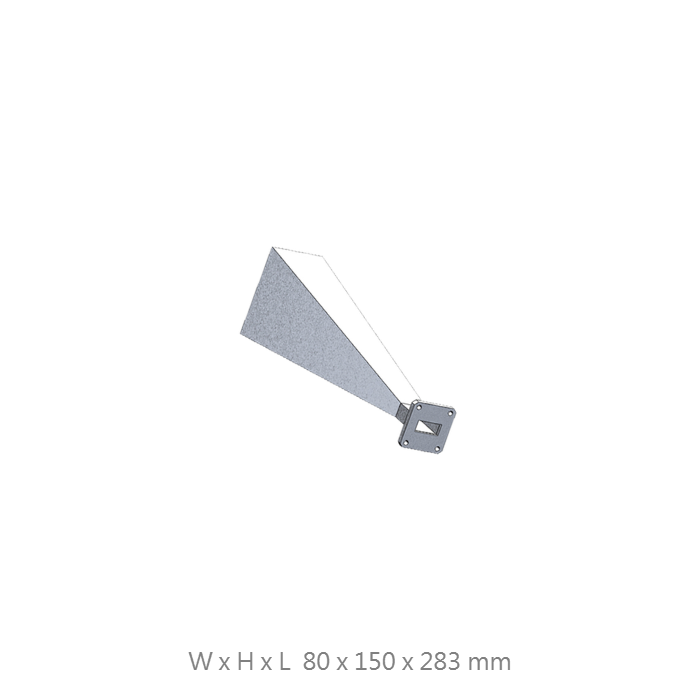

| Dimensions (W x H x L) | 80 x 150 x 283 mm |
| Waveguide Flange | UBR UG-39/U Standard Layout |
| Net Weight | 195 g (Precision Lightweight Build) |
| Body Material | High-Grade Machined Aluminum |
| Input Interface | Direct Waveguide (No Adapter) |
| Manufacturing Origin | Taiwan Design / Made in Taiwan (FT-RF) |
Broad Band Precision
Optimized for the 8.2-12.4 GHz band, delivering the boresight accuracy and gain flatness required for advanced microwave link analysis and professional Signal Defense research.
Direct Waveguide Integration
Designed with a direct WR-90 interface for ultra-low-loss power transfer, eliminating transition losses associated with adapters in high-precision measurement setups.
500W High-Power Stability
Robustly machined from premium aluminum to handle high 500W CW power loads while maintaining structural integrity during intensive laboratory or field operations.
Compact Mechanical Footprint
Features a highly compact aperture layout tailored for structural density, making it ideal for space-constrained measurement chambers and portable scanning infrastructures.
Contact FT-RF Engineering Team
Contact our engineering team for specialized gain calibration data, custom mounting solutions, or technical support regarding high-gain broadband setups.
⚠️ Security Notice
Our official emails are sent exclusively from @ft168.com.tw. Please note that we only accept payments processed through Taiwanese banks: CTBC Bank Co., Ltd and MEGA INTERNATIONAL COMMERCIAL BANK. Always verify any suspicious communications before taking action.New Products
