K-Band Standard Gain Horn
WR-42 Waveguide | 18 GHz – 26.5 GHz | 10 dBi
The HS-042-UBR-10A-KF is a high-precision K-band standard gain horn antenna professionally engineered for microwave RF measurement and antenna gain verification. Operating across the 18 GHz to 26.5 GHz spectrum, it features a standardized WR-42 waveguide interface with a UBR flange. Delivering a stable nominal gain of 10 dBi with uniform radiation patterns, this antenna is an essential instrument for Signal Integrity verification, gain calibration, and professional EMI/EMC testing where high-frequency accuracy and mechanical structural reliability are paramount.
Technical Specifications
Electrical RF Performance
| Frequency Range | 18 GHz - 26.5 GHz (K-Band) |
| Antenna Type | Standard Gain Horn |
| Nominal Gain | 10 dBi |
| V.S.W.R | < 1.25 : 1 (Typical) |
| -3dB Beamwidth | H-Plane: 54° | E-Plane: 54° |
| Maximum Input Power | 200 Watts |
Mechanical & Interface Data
| Connector Type | Precision Stainless Steel 2.92mm-Female (K) |
| Waveguide / Flange | WR-42 / UBR |

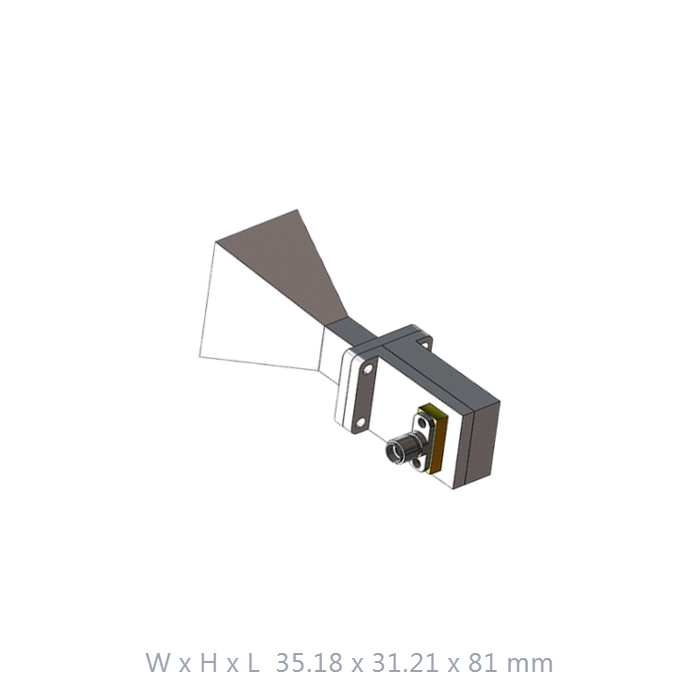

| Dimensions (L x W x H) | 81 x 35.18 x 31.21 mm |
| Antenna Weight | 45 g (Precision Aluminum Alloy) |
| Manufacturing Origin | Taiwan Design & Made in Taiwan |
Professional Tactical Features
K-Band Precision Beam
Specifically engineered for the 18-26.5 GHz spectrum, providing stable electrical performance and minimal losses for critical Signal Integrity measurements in microwave systems.
Superior Gain Consistency
Delivers a uniform gain profile for high-accuracy antenna calibration, making it an ideal reference device for measuring the gain of secondary microwave systems.
Stainless Steel K Interface
Equipped with a high-durability stainless steel 2.92mm-Female (K) connector to ensure reliable mating cycles and low-loss transition for standardized test equipment.
Custom Engineering Flexibility
Available for specialized modifications including waterproof structures, PTZ control integration, and customized color finishes to meet specific project requirements.
Inquire About K-Band Solutions
Contact our engineering team for specialized gain calibration data, consolidated performance databases, or technical support regarding high-frequency measurement setups.
