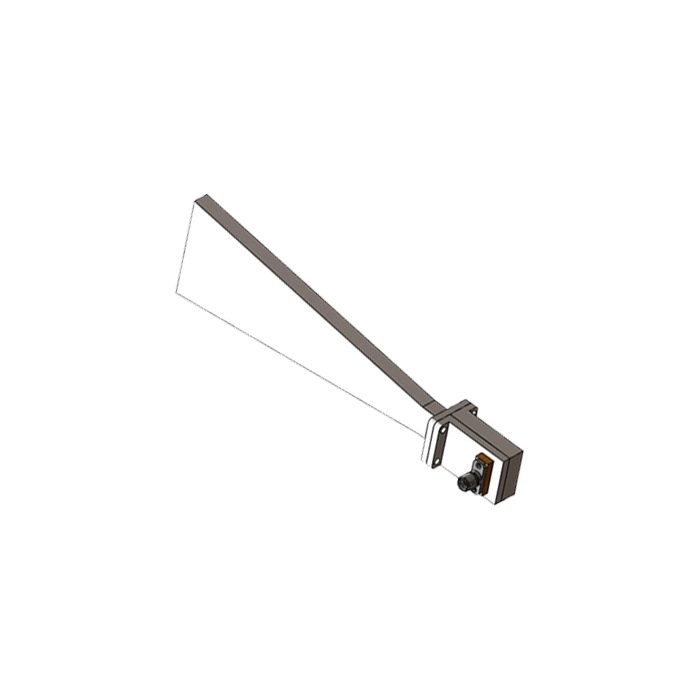

WR42 18 GHz to 26.5 GHz 10 dbi Standard Gain Waveguide Horn Antenna, H-plane sectoral Horn Antenna, UBR Flange, K-Female Connector

Applications:

• WR42 18 GHz to 26.5 GHz 10 dbi Standard Gain Waveguide Horn Antenna, H-plane sectoral Horn Antenna, UBR Flange, K-Female Connector

  EMI/EMC testing, direction finding, surveillance, and antenna gain measurements.
• Calibration devices that measure the gain of other antennas

Features:

• Uniform Gain
• Aluminum metal alloy
• Consolidated performance database

Custom design: (Please contact us: info-tw@ft168.com.tw)

• Waterproof structure
• PTZ Controlling function
• Tripod or antenna mounting design
• Customize Color

Mechanical Specifications

• Model: HS-042-UBR-10H-KF
• Waveguide: WR-42
• Frequency:18 to 26.5GHz
• Gain: 10 dbi
• Max Power(W): 200W
• H-plane(-3db): 12
• E-plane(-3db): 110
• Size(mm): 29.85x47.48x175.7
• Weight(g): 70
• Waveguide Flange: UBR
• Connector: K-Female
• V.S.W.R:1.25
