HS-042-UBR-25-KF Standard Gain Horn Antenna
18 to 26.5GHz | High Gain 25 dBi | WR42 Waveguide
The HS-042-UBR-25-KF is a precision WR42 Standard Gain Horn Antenna engineered for high-frequency millimeter-wave applications. Operating within the 18 to 26.5 GHz range, it delivers a sharp, directional beam with 25 dBi gain. This antenna is an essential calibration device for measuring the gain of other antennas and is widely used in EMI/EMC testing, direction finding, and surveillance. Crafted from high-grade aluminum with a K-Female connector and UBR flange, it ensures ultra-low signal reflection (V.S.W.R 1.25) and consistent laboratory performance.
Technical Specifications
Electrical Specifications
[Image of WR42 standard gain horn antenna radiation pattern for K-band]| Frequency Range | 18 GHz - 26.5 GHz |
| Waveguide Size | EIA WR42 |
| Gain | 25 dBi |
| V.S.W.R | 1.25 : 1 |
| H-plane Beamwidth (-3dB) | 12° |
| E-plane Beamwidth (-3dB) | 11° |
| Maximum Power Handling | 200 W |
| Waveguide Flange | UBR |
| Connector | K-Female (Stainless Steel) |
Mechanical & Environmental Specifications

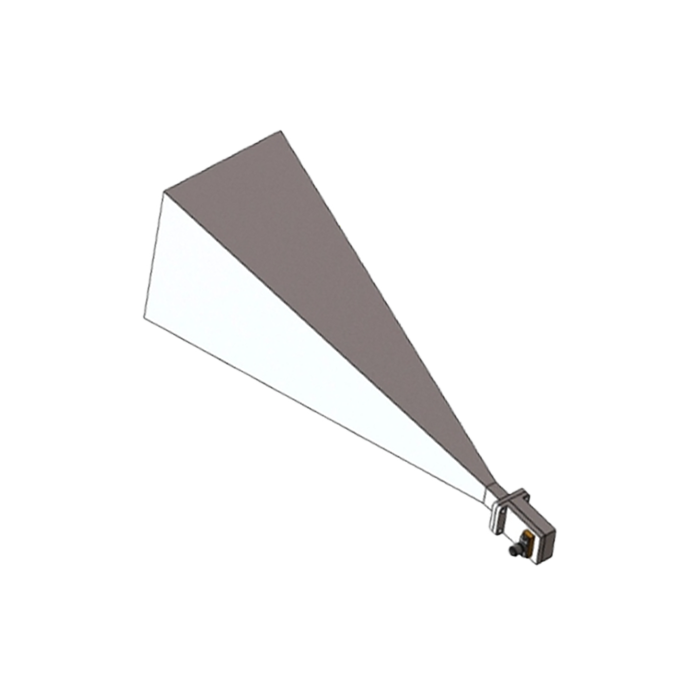

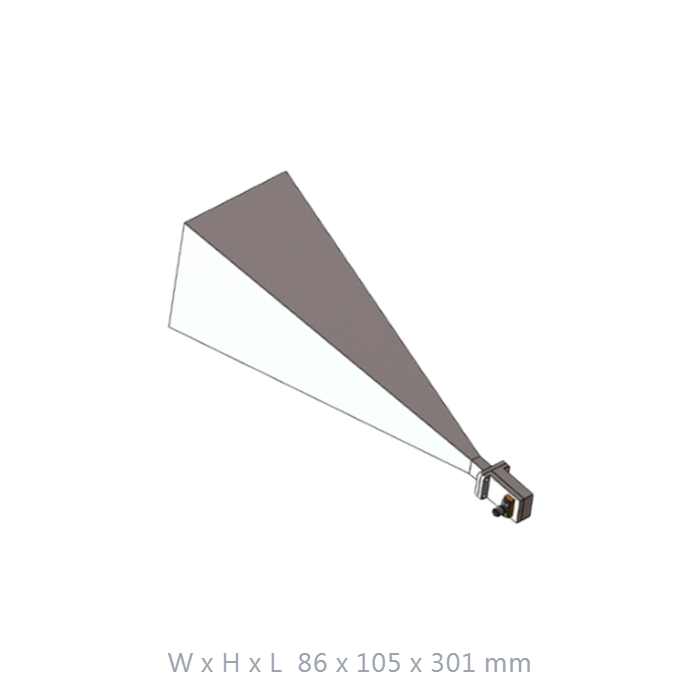

[Image of HS-042-UBR-25-KF horn antenna mechanical drawing and dimensions]| Dimensions (W x H x L) | 86 x 105 x 301 mm |
| Antenna Weight | 260 g |
| Material | High-Grade Aluminum Alloy |
| Design & Manufacturing | Taiwan Design, Made in Taiwan |
Key Features
High Precision Calibration
Ideal for use as a reference antenna to measure and calibrate the gain of other RF systems.
Ideal for use as a reference antenna to measure and calibrate the gain of other RF systems.
Narrow Beamwidth
Exceptionally directional beam (11°-12°) for precise target focus in direction finding and surveillance.
Exceptionally directional beam (11°-12°) for precise target focus in direction finding and surveillance.
Millimeter-Wave Optimization
K-band specialized design with stainless steel K-Female connectors for superior signal integrity.
K-band specialized design with stainless steel K-Female connectors for superior signal integrity.
Low Reflection (V.S.W.R 1.25)
Minimizes signal bounce and maximizes efficiency for consistent, repeatable laboratory results.
Minimizes signal bounce and maximizes efficiency for consistent, repeatable laboratory results.
Custom Integration Support
Optional waterproof structures, PTZ control, and custom color/mounting designs available upon request.
Optional waterproof structures, PTZ control, and custom color/mounting designs available upon request.
Consolidated Database
Performance is backed by a verified performance database for accurate calibration reference.
Performance is backed by a verified performance database for accurate calibration reference.
Contact Us
For quotes, custom waveguide flanges, or technical support regarding the HS-042-UBR-25-KF, please contact us:
Email: info-tw@ft168.com.twNew Products
