Description & Specification

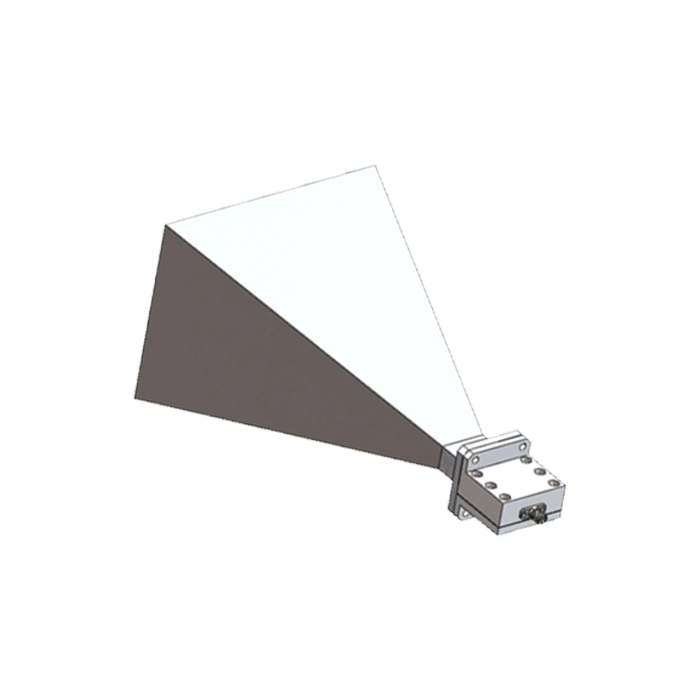

WR-90 End Launch Standard Gain Horn Antenna
End Launch Inline Configuration | 8.2 - 12.4 GHz | Model: HS-090-UBR-20A-E-SF
The HS-090-UBR-20A-E-SF is a high-performance End Launch Standard Gain Horn Antenna professionally engineered and manufactured by Fei Teng Wireless Technology Co., Ltd. (FT-RF) for the WR-90 standard. Operating within the high-frequency X-Band spectrum across the continuous 8.2 GHz to 12.4 GHz band, this premium antenna features a specialized inline coaxial-to-waveguide transition, making it ideal for linear system integration where right-angle space is limited. Delivering a stable nominal gain of 20 dBi with exceptional radiation symmetry, it features a standardized UG-39/U (UBR Style) flange mating face paired with a premium stainless steel SMA-Female interface port, ensuring flawless structural impedance coplanarity and ultra-low-loss power transfer. Safely managing continuous wave power loads up to 300 Watts (CW), this radiator is precision machined from high-grade structural aluminum alloy in Taiwan. It exhibits outstanding electromechanical longevity, a robust 380g profile, and a maximum V.S.W.R threshold of 1.25 : 1, making it the definitive choice for EMI/EMC Testing, high-fidelity antenna calibration ranges, and mission-critical Signal Integrity measurements.
Electrical & RF Performance
| Frequency Range Class | 8.2 GHz to 12.4 GHz (Continuous X-Band Spectral Optimization) |
| Waveguide Standard Size | EIA WR-90 / R100 Layout Geometry |
| Standard Gain (Typical) | 20 dBi |
| V.S.W.R Profile (Max) | ≤ 1.25 : 1 (Precision Minimal Reflection Performance) |
| Maximum Power Handling | 300 Watts (CW Continuous Wave Limit) |
| -3dB Beamwidth (H-Plane) | 18° |
| -3dB Beamwidth (E-Plane) | 17° |
| Nominal System Impedance | 50 Ohms |
Mechanical & Physical Specs

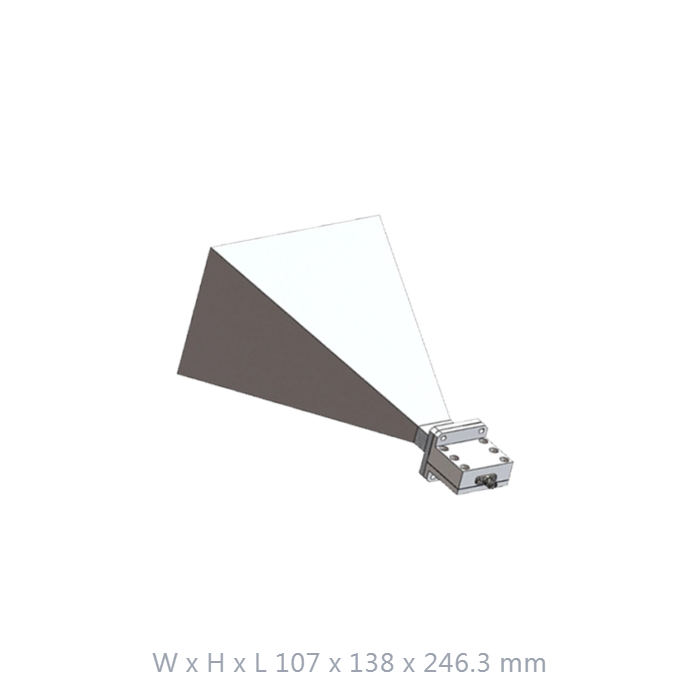

| Physical Dimensions (W x H x L) | 107 x 138 x 246.3 mm |
| Net Weight Profile | 380 g (Precision Mechanical Construction) |
| Waveguide Connection Flange | Standardized UG-39/U (UBR Style Flange Interface Layout) |
| Coaxial Connector Port | Stainless Steel SMA-Female (End Launch Configuration) |
| Structural Body Material | High-Grade Aluminum Alloy |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF Professional Grade) |
End Launch Inline Configuration
Equipped with an inline transition from waveguide to coaxial SMA, facilitating streamlined mechanical mounting and structural cabling in space-constrained layouts.
X-Band Pattern Stability
Optimized for the 8.2-12.4 GHz band, delivering the uncompromised boresight accuracy and gain flatness required for high-fidelity antenna calibration and spectrum monitoring.
300W High-Power Stability
Designed to handle up to 300W continuous power, providing a highly reliable and stable radiator for high-intensity laboratory testing and tactical signal protection.
Customizable Infrastructure Ready
Fully adaptable architecture with advanced options for automated PTZ control integration, specialized non-reflective tripod mounting, or custom color coatings.
Contact FT-RF Engineering Team
Contact our technical engineering division today to request official quote sheets, individual certified radiation patterns, specialized PTZ control layout options, or customized waterproof builds.
