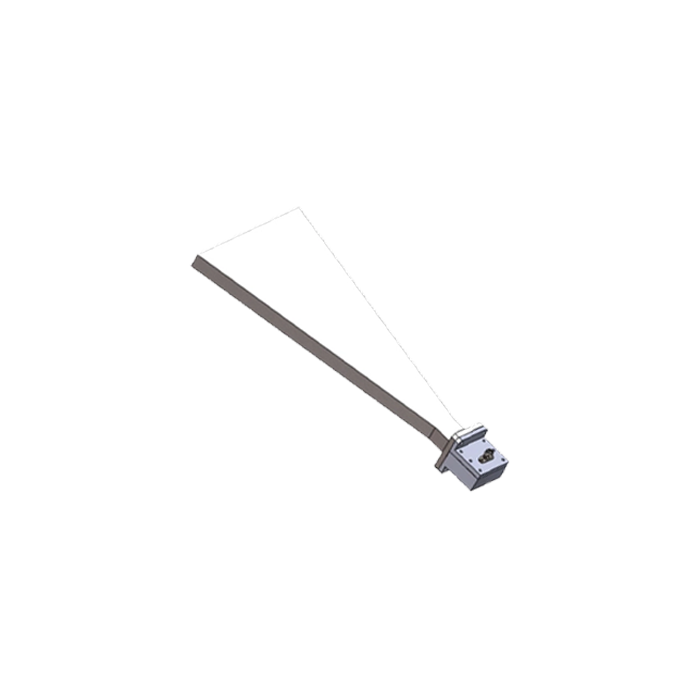

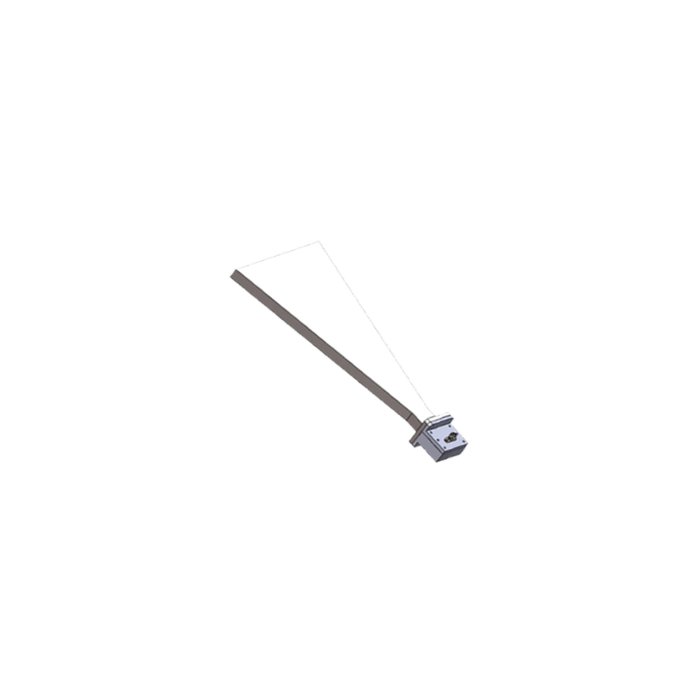

WR-90 H-Plane Sectoral Horn Antenna with SMA Adapter
Model: HS-090-UBR-10H-SF | 8.2 - 12.4 GHz | 10 dBi | 250W
The HS-090-UBR-10H-SF is a high-precision WR-90 H-Plane Sectoral Waveguide Horn Antenna professionally integrated with a low-loss waveguide-to-coaxial adapter, engineered and manufactured by Fei Teng Wireless Technology Co., Ltd. (FT-RF). Operating within the high-frequency X-Band spectrum across the continuous 8.2 GHz to 12.4 GHz range, this premium antenna is expertly flared in the H-plane to yield an expansive wide sectoral coverage of 106° in the E-plane, ideal for broad-area illumination field scanning. Featuring a standardized UG-39/U (UBR Style) flange interface face paired with a precision stainless steel SMA-Female coaxial transition port, it ensures flawless structural impedance integration and ultra-low-loss power transfer. Safely managing continuous wave power loads up to 250 Watts (CW), this radiator is precision structured from high-grade aluminum alloy in Taiwan, yielding a highly stable physical profile paired with a maximum V.S.W.R threshold of 1.25 : 1. It stands as an essential instrument for high-fidelity laboratory EMI/EMC Testing, wide-angle field generation, automated antenna gain calibration ranges, and multi-point surveillance infrastructure setups.
Electrical & RF Performance
| Frequency Range Class | 8.2 GHz to 12.4 GHz (Continuous X-Band Spectral Optimization) |
| Waveguide Standard Size | EIA WR-90 / R100 Geometry Layout |
| Antenna Radiation Type | H-Plane Sectoral Horn |
| Nominal Gain Baseline | 10 dBi |
| V.S.W.R Profile (Max) | 1.25 : 1 (Precision Minimal Reflection Performance) |
| Maximum Power Handling | 250 Watts (CW Continuous Wave Limit) |
| -3dB Beamwidth (H-Plane / E-Plane) | 16° / 106° (Wide Sectoral Fan-Beam Pattern) |
| Nominal System Impedance | 50 Ohms |
Mechanical & Physical Specs
| Length Overall | ~360 mm |
| Waveguide Mating Flange | Standardized UG-39/U (UBR Style Flange Layout face) |
| Coaxial Connector Type | SMA-Female (Precision Stainless Steel / SUS Core) |
| Structural Body Material | High-Grade Structural Aluminum Alloy |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF Professional Grade) |
Wide E-Plane Coverage
The specialized H-plane flare design yields an expansive 106° sectoral coverage in the E-plane, ideal for broad-area illumination in EMC susceptibility testing or multi-point field surveillance.
Heavy-Duty SUS Interface
Equipped with a high-durability stainless steel SMA connector layout interface, ensuring reliable electrical contact and structural wear resistance for repeated laboratory use.
X-Band Pattern Stability
Precision optimized for the continuous 8.2-12.4 GHz band, ensuring consistent boresight accuracy, flat trace gain, and minimal signal leakage in mission-critical testing environments.
Customizable Infrastructure Ready
Fully adaptable architectural framework with advanced options for automated PTZ control integration, specialized non-reflective tripod mounting layouts, and custom color coatings.
Contact FT-RF Engineering Team
Contact our technical engineering division today to request official quote sheets, individual certified radiation patterns, specialized PTZ control functions, or custom mounting interfaces.
