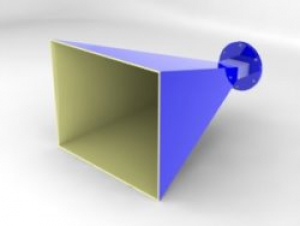

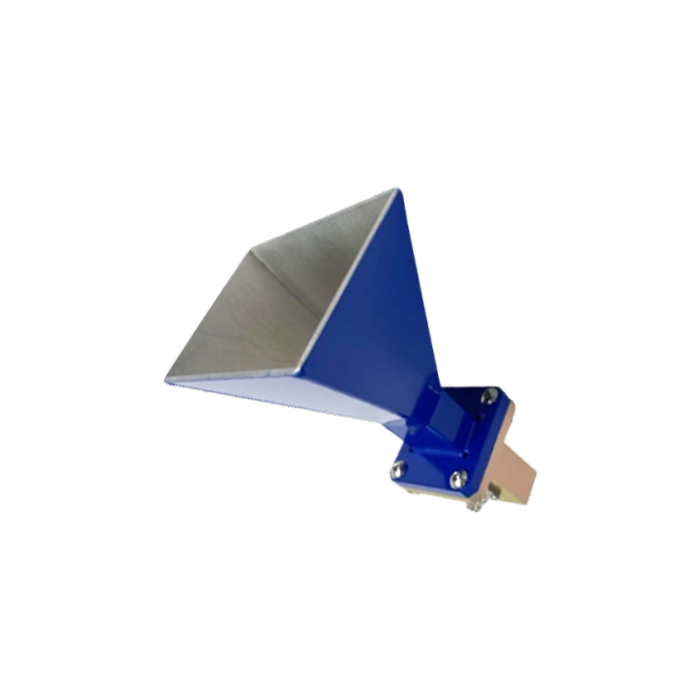

WR90 Standard Gain Waveguide Horn Antenna, 8.2 to 12.4GHz, 15dbi, SMA-Female connector, UBR Flange

WR90 Standard Gain Waveguide Horn Antenna, 8.2 to 12.4GHz, 15dbi, SMA-Female connector, UBR Flange

Model No: HS-090-UBR-15A-SF

Product Datasheet: Download

Mechanical Drawing: Download

  • Waveguide Type: WR-90
  • Frequency: 8.2GHz to 12.4GHz
  • Waveguide Coaxial Adapter Model: WC-090-UBR-A2-SF
  • Waveguide input Model: WI-90-UBR-15
  • Connector: SMA-Female(SUS)
  • V.S.W.R: 1.25
  • Gain: 15 dBi
  • Width(g):180
  • Size(mm): 60x88x126
Quantity:
INQUIRY

  • Description & Specification

Applications:

  • WR90 Standard Gain Waveguide Horn Antenna, 8.2 to 12.4GHz, 15dbi, SMA-Female connector, UBR Flange
  • EMI/EMC testing, direction finding, surveillance, and antenna gain measurements.
  • Calibration devices that measure the gain of other antennas

Features:

  • Uniform Gain
  • Aluminum metal alloy
  • Consolidated performance database
  • Stainless steel SMA-Female

Electrical Specifications

Frequency Range

8.2GHz - 12.4GHz

VSWR

<1.5: 1

Antenna Type

Horn

Radiation

Directional

Gain

15 dBi

Polarization

Vertical or Horizontal

Maximum Power

250 Watts

Vertical Beamwidth

27 Deg

Horizontal Beamwidth

27 Deg

Impedance

50 Ohm

Antenna Design

Waveguide Horn

Connector

SMA-Female

 Mechanical Specifications

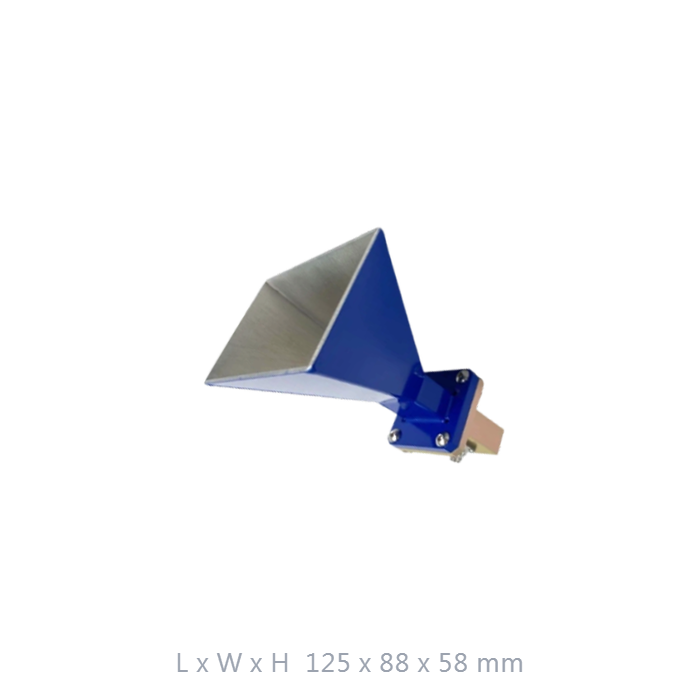

Length

125mm

Width & Height

88x58mm

Antenna Weight

140 g

Application

Indoor

Parts Material

Aluminum

Mounting

Optional

Storage Temperature

-20 to +100

Operating Temperature

-20 to +80

Operating Humidity

10%~70% non-condensing

Storage Humidity

5%~50% non-condensing

Safety, Emission, and other

RoHS
