Description & Specification

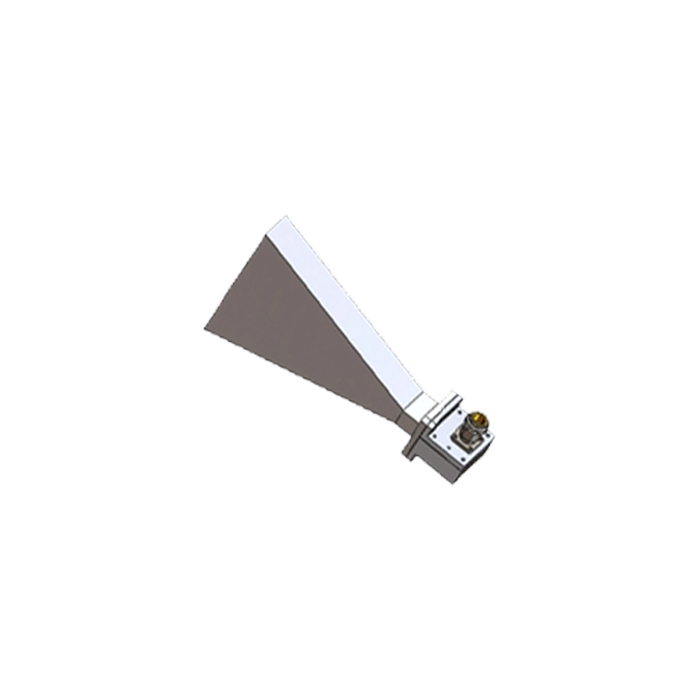

WR-90 E-Plane Sectoral Horn Antenna with N-Type Adapter
Model: HS-090-PBR-10E-NF | 8.2 - 12.4 GHz | 10 dBi | 300W
The HS-090-PBR-10E-NF is a high-precision WR-90 E-Plane Sectoral Waveguide Horn Antenna professionally integrated with a low-loss waveguide-to-coaxial adapter, engineered and manufactured by Fei Teng Wireless Technology Co., Ltd. (FT-RF). Operating within the high-frequency X-Band spectrum across the continuous 8.2 GHz to 12.4 GHz range, this premium antenna system is expertly flared in the E-plane to deliver an exceptionally wide fan-beam coverage of 112° in the H-plane, making it highly optimized for broad-area illumination. Featuring a standardized UG-39/U (PBR Style) waveguide flange mating face paired with a heavy-duty stainless steel N-Female coaxial transition connector, it ensures flawless structural impedance coplanarity, minimal return loss, and ultra-low-loss power transfer. Safely managing continuous wave power loads up to 300 Watts (CW), this radiator is precision structured from high-grade aluminum alloy in Taiwan, yielding a highly stable, lightweight 160g configuration footprint paired with a maximum V.S.W.R threshold of 1.25 : 1. It stands as an essential radiator for high-fidelity laboratory EMI/EMC Testing, wide-angle field generation scanning, automated antenna gain calibration ranges, and professional surveillance infrastructure networks.
Electrical & RF Performance
| Frequency Range Class | 8.2 GHz to 12.4 GHz (Continuous X-Band Spectral Optimization) |
| Waveguide Standard Size | EIA WR-90 / R100 Geometry Layout |
| Antenna Radiation Type | E-Plane Sectoral Horn |
| Nominal Gain Baseline | 10 dBi |
| V.S.W.R Profile (Max) | 1.25 : 1 (Precision Minimal Reflection Performance) |
| Maximum Power Handling | 300 Watts (CW Continuous Wave Limit) |
| -3dB Beamwidth (H-Plane / E-Plane) | 112° / 38° (Massive Wide Sectoral H-Plane Envelope) |
| Nominal System Impedance | 50 Ohms |
Mechanical & Physical Specs

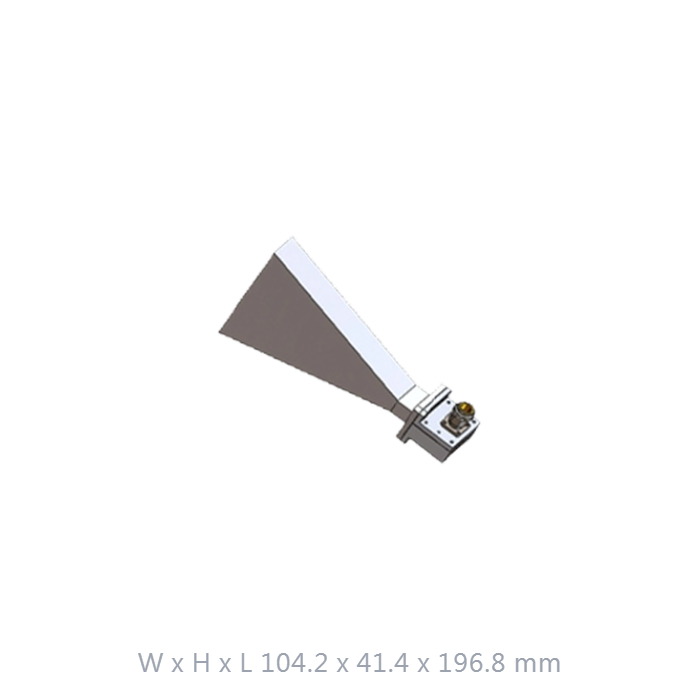

| Physical Dimensions (W x H x L) | 104.2 x 41.4 x 196.8 mm |
| Antenna Net Weight Profile | 160 g (Precision Lightweight Structural Design) |
| Waveguide Connection Flange | Standardized UG-39/U (PBR Style Flange Layout face) |
| Coaxial Connector Type | N-Female (Precision Stainless Steel / SUS Core) |
| Structural Body Material | High-Grade Structural Aluminum |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF Professional Grade) |
Extreme H-Plane Coverage
The specialized E-plane flare design yields a massive 112° sectoral coverage in the H-plane, ideal for broad-area illumination in EMC susceptibility testing or wide-angle surveillance setups.
Heavy-Duty SUS Interface
Equipped with a high-durability stainless steel N-Type interface connector layout, ensuring reliable electrical contact and structural wear resistance for repeated long-cycle laboratory use.
X-Band Pattern Stability
Precision optimized for the continuous 8.2-12.4 GHz band, ensuring consistent boresight accuracy, flat trace gain, and minimal signal leakage in mission-critical environments.
Customizable Infrastructure Ready
Fully adaptable architectural framework with advanced options for automated PTZ control integration, specialized non-reflective tripod mounting layouts, and custom outdoor color coatings.
Contact FT-RF Engineering Team
Contact our technical engineering division today to request official quote sheets, individual certified radiation patterns, specialized PTZ control functions, or custom mounting interfaces.
