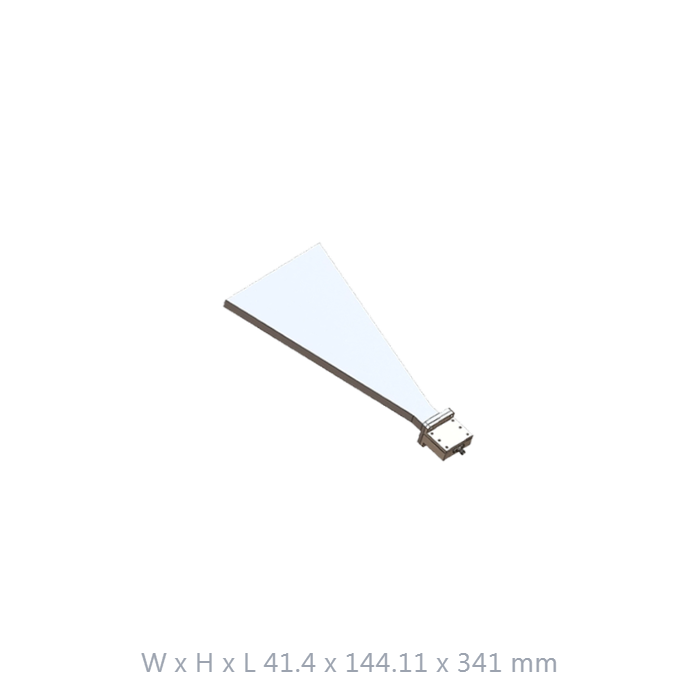

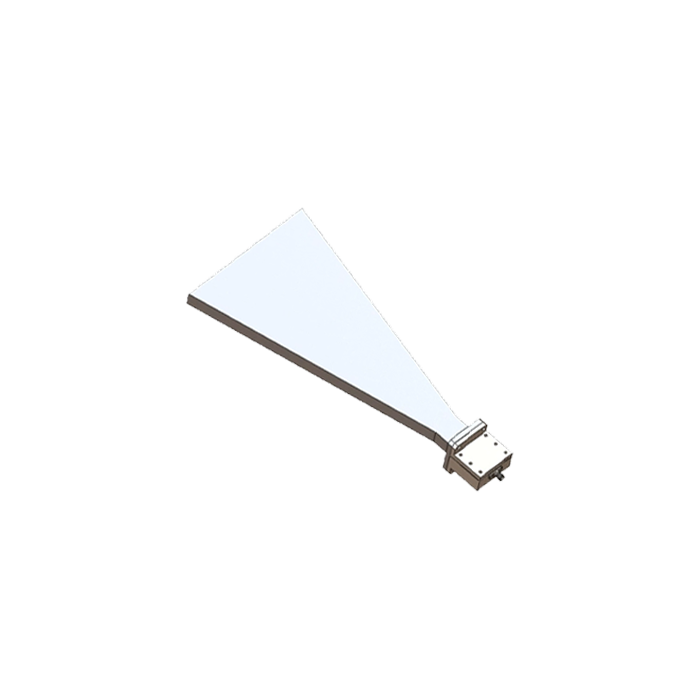

HS-090-UBR-10H-E-SF End Launch Horn Antenna
8.2 - 12.4 GHz | End Launch Design | 106° E-Plane Coverage
The HS-090-UBR-10H-E-SF is a high-precision Sectoral Horn Antenna expertly flared in the H-plane to provide an expansive E-plane coverage of 106°. Operating within the 8.2 GHz to 12.4 GHz X-Band spectrum, this antenna features a specialized End Launch inline transition, facilitating linear system integration in space-constrained environments. Precision-manufactured from high-grade aluminum with a durable stainless steel SMA-Female interface, it ensures exceptional return loss and manages power loads up to 250W, making it an essential radiator for EMI/EMC testing, wide-angle field generation, and antenna gain measurement.
Electrical & RF Performance
| Frequency Range | 8.2 GHz - 12.4 GHz |
| Waveguide Interface | WR-90 (UBR) |
| Nominal Gain | 10 dBi |
| Max Power Handling | 250 Watts (CW) |
| Beamwidth (H/E) | 16° / 106° |
Mechanical & Physical
| Dimensions | 41.4 x 144.11 x 341 mm |
| Weight | 380 g |
| Connector Type | SMA-Female (Stainless Steel) |
| Body Material | High-Grade Aluminum |
Wide E-Plane Coverage
Expansive 106° sectoral coverage in the E-plane, ideal for broad-area illumination in EMC susceptibility testing and multi-point surveillance.
End Launch Inline Design
Features an inline coaxial-to-waveguide transition, allowing for linear system integration and streamlined cabling in space-constrained laboratory setups.
X-Band Pattern Stability
Optimized for the 8.2-12.4 GHz band, ensuring consistent boresight accuracy and minimal signal leakage in mission-critical environments.
Heavy-Duty SUS Interface
Equipped with a high-durability stainless steel SMA-Female connector to ensure reliable electrical contact and structural wear resistance for repeated laboratory use.
Contact FT-RF Engineering Division
Contact our engineering team for specialized PTZ control, waterproof structures, or custom mounting interfaces.
