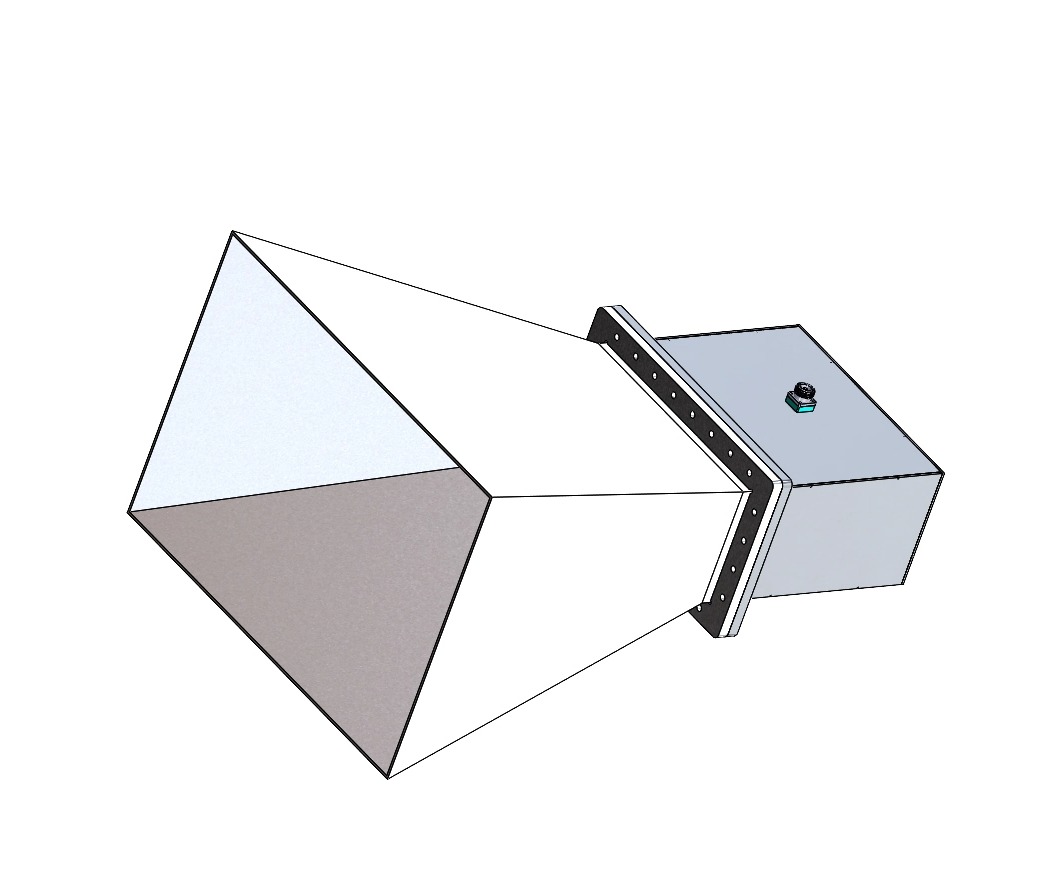

WR1500 490MHz to 750MHz 10dbi Standard Gain Waveguide Horn Antenna, UDR Flange, 7/16-Female Connector WR1500 490MHz to 750MHz 10dbi Standard Gain Waveguide Horn Antenna, UDR Flange, 7/16-Female Connector WR1500 490MHz to 750MHz 10dbi Standard Gain Waveguide Horn Antenna, UDR Flange, 7/16-Female Connector

Model No: HS-1500-UDR-10A-716

Mechanical Drawing: Download

  • Waveguide: WR-1500
  • Frequency: 490MHz to 750MHz
  • Gain: 10 dbi
  • Max Power (W): 3000W
Quantity:
INQUIRY

Application

  • WR1500 490MHz to 750MHz 10dbi Standard Gain Waveguide Horn Antenna, UDR Flange, 7/16-Female Connector
  • Antenna measurement
  • Electromagnetic interference Testing (EMI test)

Features

  • Low VSWR
  • Standard Gain

Specifications:

  • Model: HS-1500-UDR-10A-716
  • Waveguide: WR-1500
  • Frequency: 490MHz to 750MHz
  • Gain: 10 dbi
  • Max Power (W): 3000W
  • H-plane(-3db): 54
  • E-plane(-3db): 54
  • Size(mm): 584x698x1025
  • Weight(g): 25000
  • Waveguide Flange: UDR
  • Connector:7/16-Female
  • Material: Aluminum
