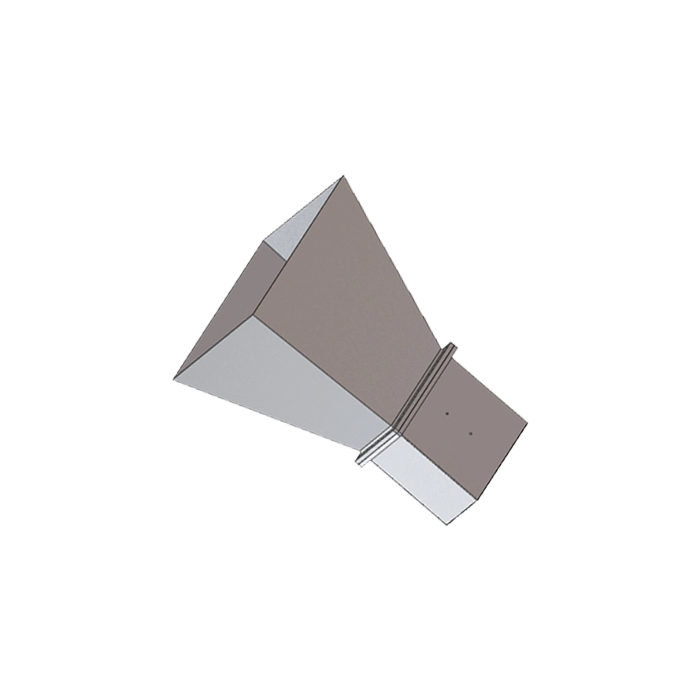

UHF-Band Ultra High Power Standard Horn
WR-2300 Waveguide | 320 MHz – 490 MHz | 3000W Capacity
The HS-2300-UDR-10A-716 is a massive-scale, high-precision standard gain horn antenna specifically engineered for ultra-high power applications in the UHF spectrum. Operating from 320 MHz to 490 MHz, this antenna utilizes a heavy-duty WR-2300 waveguide structure with a UDR flange. Delivering a stable 10 dBi gain and capable of handling an extraordinary peak power of 3000 Watts, it is a critical instrument for Signal Integrity verification in radar systems, spectrum surveillance, and high-intensity electromagnetic interference (EMI/EMC) testing where industrial structural reliability is paramount
Technical Specifications
Electrical RF Performance
| Frequency Range | 320 MHz - 490 MHz |
| Antenna Type | Standard Gain Horn |
| Nominal Gain | 10 dBi |
| V.S.W.R | 1.25 : 1 (Typical) |
| -3dB Beamwidth | H-Plane: 54° | E-Plane: 54° |
| Max Power Handling | 3000 Watts (High Capacity) |
Mechanical & Interface Data
| Waveguide Interface | WR-2300 |
| Flange Compatibility | UDR System |
| Connector Type | 7/16-Female (DIN Standard) |

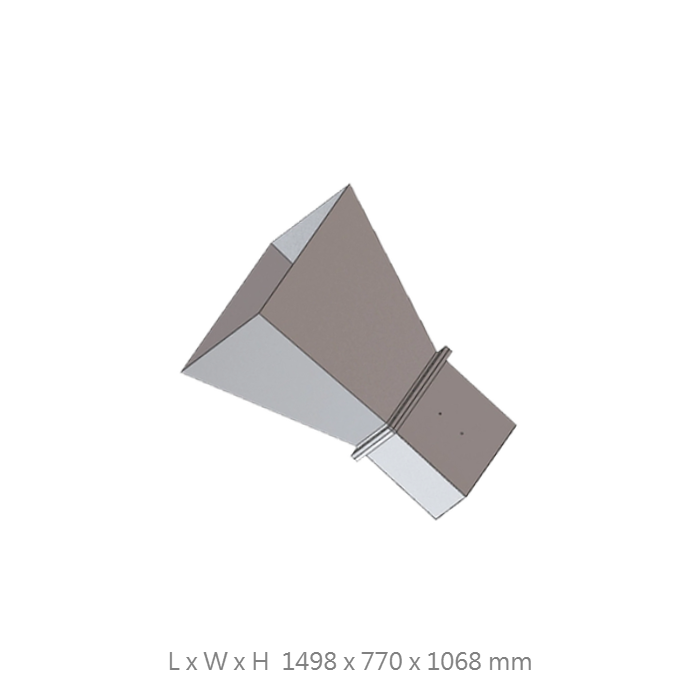

| Dimensions (WxHxL) | 770 x 1068 x 1498 mm |
| Antenna Weight (N.W.) | 54,000 g (54 kg) |
| Structural Material | Industrial Grade Aluminum |
Key Tactical Features
UHF Precision Engineering
Designed specifically for the 320-490 MHz spectrum, providing highly stable electrical performance and low loss for critical Signal Integrity measurements in massive RF systems.
3000W Ultra-High Power
Equipped with a specialized DIN 7/16 interface to support extreme power levels up to 3000W, making it ideal for radar detection and high-power broadcasting tests.
Robust Large-Scale Build
Constructed from premium structural aluminum with a net weight of 54 kg and a length of 1.5 meters, ensuring exceptional mechanical rigidity for fixed-site and laboratory duty cycles.
Mission-Critical Accuracy
Ensures repeatable gain performance across the UHF band, essential for spectrum monitoring, wireless communication analysis, and standardized antenna calibration.
Inquire About UHF Solutions
Contact our engineering team for specialized gain data, heavy-duty mounting options, or technical support regarding high-power UHF measurement setups.
