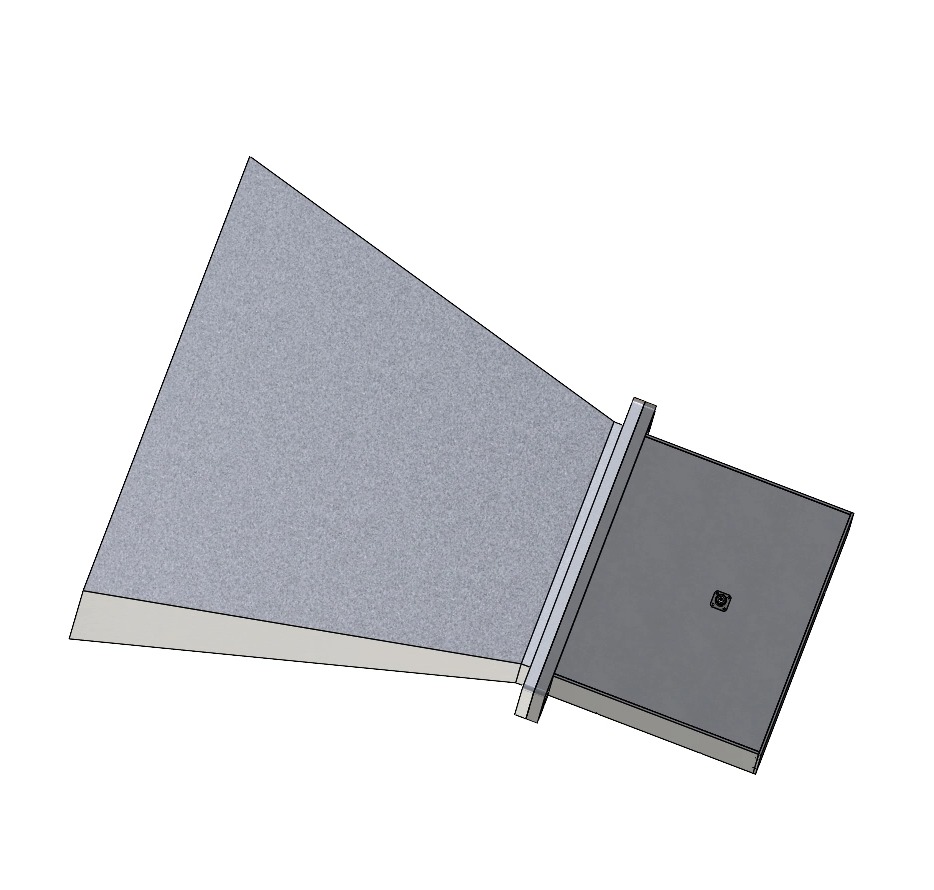

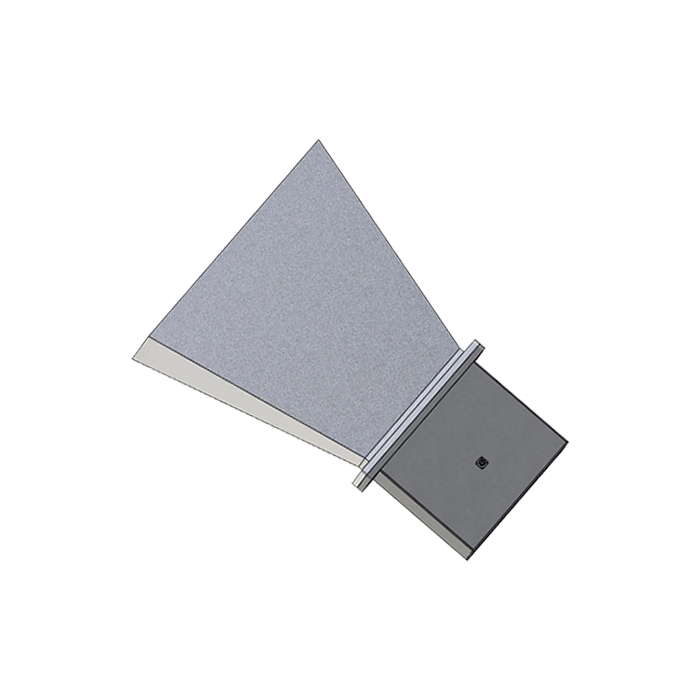

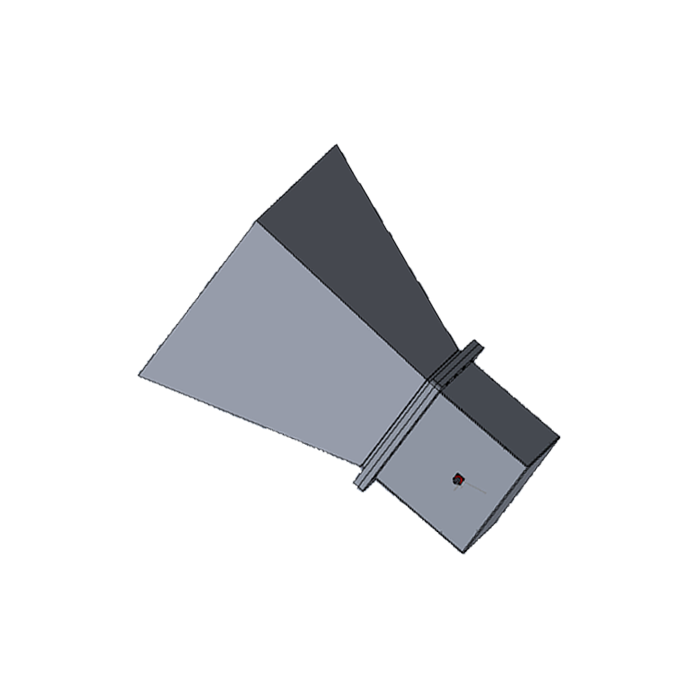

UHF Standard Gain Waveguide Horn
HS-1500-UDR-10A-NF | 490 MHz – 750 MHz | 1800W | 10 dBi
The HS-1500-UDR-10A-NF is a precision-engineered Standard Gain Horn Antenna designed for high-performance RF testing within the UHF spectrum. Operating across the waveguide range of 490 MHz to 750 MHz, it utilizes a robust WR-1500 interface with UDR flange compatibility. Delivering a stable nominal gain of 10 dBi and handling up to 1800 Watts of power, this antenna is an essential instrument for EMI/EMC testing, antenna measurements, and professional laboratory environments requiring superior Signal Integrity and long-term mechanical reliability.
Technical Specifications
Electrical RF Performance
| Model Number | HS-1500-UDR-10A-NF |
| Frequency Range | 490 MHz - 750 MHz (UHF Band) |
| Antenna Type | Standard Gain Horn |
| Nominal Gain | 10 dBi |
| V.S.W.R | Low VSWR Optimized |
| -3dB Beamwidth (Avg) | Horizontal: 54° | Vertical: 54° |
| Maximum CW Power | 1800 Watts |
Mechanical & Interface Data
| Waveguide Type | WR-1500 |
| Flange Type | UDR Flange |
| Connector Port | N-Female |

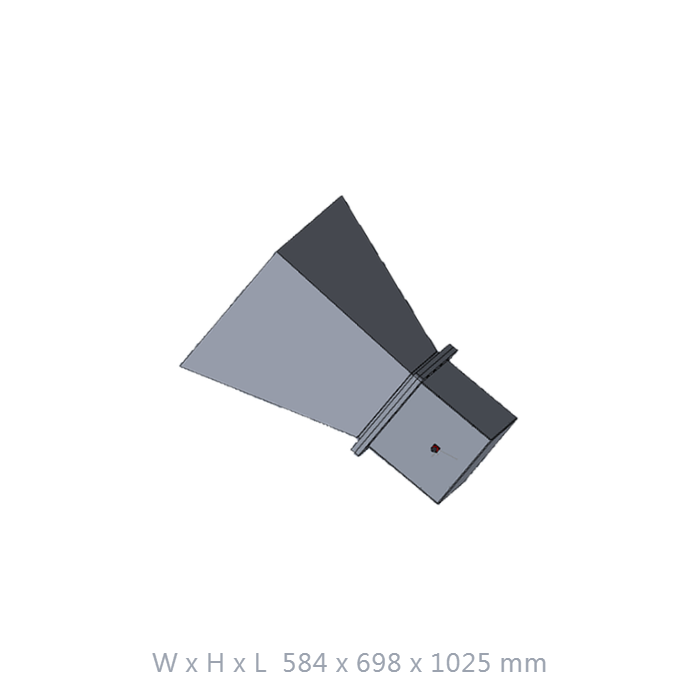

| Dimensions (W x H x L) | 584 x 698 x 1025 mm |
| Net Weight | 25,000 g (Industrial Aluminum Alloy) |
| Manufacturing Origin | Taiwan Design & Made in Taiwan |
Professional Tactical Features
UHF Spectrum Precision
Specifically optimized for the 490-750 MHz band, ensuring low insertion loss and high mechanical alignment accuracy for Signal Integrity measurements.
High-Power Reliability
Reliably manages up to 1800W of power handling, making it ideal for intensive EMI testing and high-field strength laboratory applications.
WR-1500 Waveguide Integration
Features a standardized WR-1500 structure with UDR flange interface, ensuring seamless compatibility with high-power UHF waveguide measurement systems.
Industrial Taiwan Build
Manufactured from high-grade structural aluminum alloy to provide a durable yet relatively lightweight solution for antenna calibration and monitoring setups.
Inquire About UHF Horn Solutions
Contact our engineering team for specialized gain calibration data, custom mounting requirements, or technical support regarding large-scale UHF measurement setups.
