Description & Specification

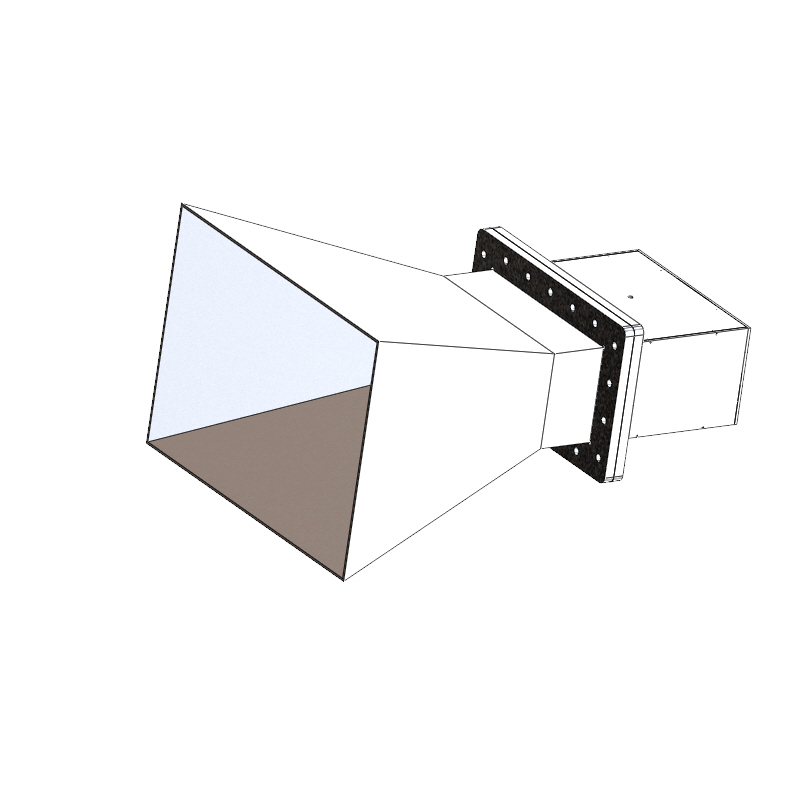

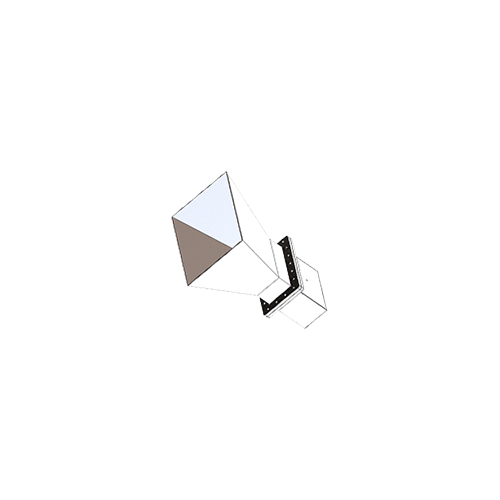

HS-975-UDR-10A-NF WR-975 Standard Gain Horn Antenna
750 - 1150 MHz | 10 dBi | Precision RF Measurement
The HS-975-UDR-10A-NF is a high-performance WR-975 Waveguide Horn Antenna specifically engineered for precision measurements and mission-critical surveillance within the 750 MHz to 1150 MHz range. Optimized for Signal Defense systems and professional communication dominance, it ensures consistent 10 dBi gain and exceptional stability. Precision-machined with a standardized waveguide interface, it serves as an essential radiator for EMI/EMC testing, antenna calibration, and professional Signal Security infrastructure.
Electrical & RF Performance
| Frequency Range | 750 MHz - 1150 MHz |
| Waveguide Standard | WR-975 |
| Standard Gain | 10 dBi |
| 3dB Beamwidth (H/E) | 29° / 27° |
| Polarization | Linear (Vertical or Horizontal) |
Mechanical & Physical

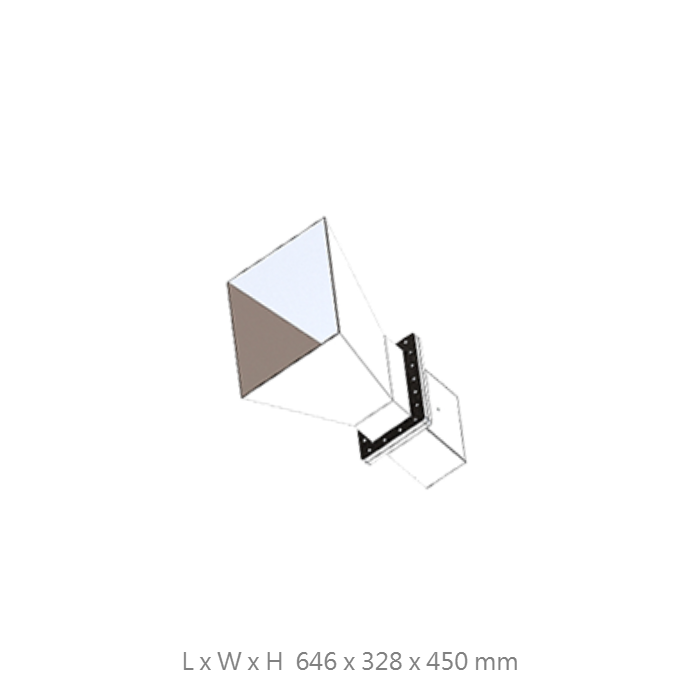

| Dimensions | 328 x 450 x 646 mm |
| Weight | 9.6 kg |
| Connector Type | N-Female (Stainless Steel SUS-303) |
WR-975 Waveguide Precision
Utilizes a standardized WR-975 interface to ensure low-loss propagation and superior signal integrity for mission-critical RF measurement environments.
Superior Signal Security
Engineered for high-durability and unwavering stability, providing a reliable reference standard for advanced Signal Defense operations.
Stainless Steel Interconnect
Equipped with a precision-machined SUS-303 N-Female connector to prevent oxidation and ensure stable impedance during professional field deployments.
Controlled Directional Focus
Provides a precise 29° horizontal and 27° vertical beamwidth, optimized for antenna pattern measurements and tactical surveillance.
Contact FT-RF Engineering Division
Contact us for specialized gain configurations, alternative connector types, or integrated mounting adapters for tactical dominance.
