Description & Specification

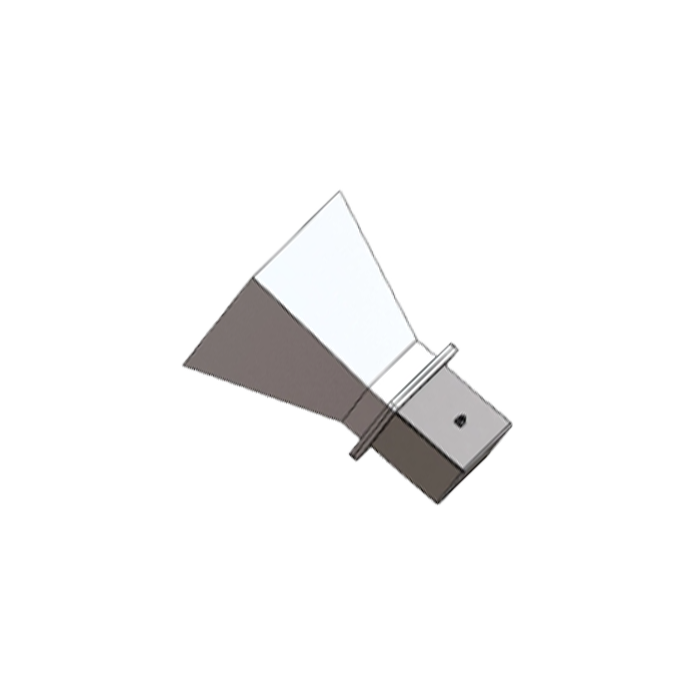

Standard Gain Horn Antenna (WR-1150)
This high-precision Standard Gain Horn Antenna is professionally engineered for the UHF band spectrum, operating from 640 MHz to 980 MHz. Utilizing a massive WR-1150 waveguide structure, this antenna delivers a stable 10 dBi nominal gain and exceptional Signal Integrity. Equipped with a robust UDR flange and a high-power 7/16-Female connector, it is specifically designed for Signal Defense, radar detection, and spectrum monitoring. Proudly Made in Taiwan by FT-RF, this industrial-grade antenna ensures predictable radiation patterns and repeatable results for professional EMI/EMC testing and wireless communication environments.
Technical Specifications
| Frequency Range | 640 MHz - 980 MHz (UHF Band) |
| Waveguide Size | WR-1150 (EIA Standard) |
| Nominal Gain | 10 dBi |
| V.S.W.R | Low VSWR Design |
| Beamwidth (-3dB) | Horz. 42° / Vert. 40° |
| Connector / Flange | 7/16-Female / UDR |

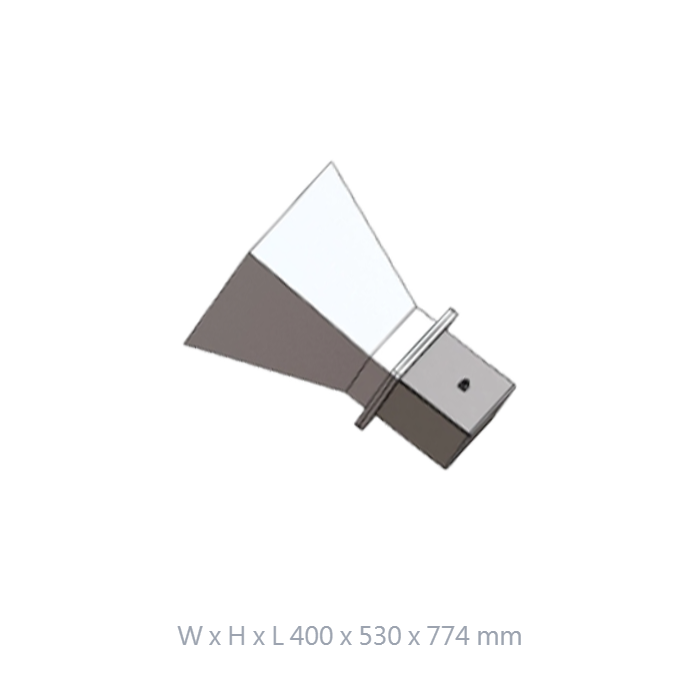

| Dimensions (WxHxL) | 400 x 530 x 774 mm |
| Weight | 12000 g (12 kg) |
Professional Tactical Features
UHF Band Signal Integrity
Optimized for the 640-980 MHz range to ensure high Signal Integrity and stable power transition for mission-critical communication.
Industrial Grade WR-1150 Build
Precisely machined from high-conductivity aluminum to handle heavy-duty applications, providing stable electrical performance and structural longevity.
High Power 7/16-Female Interface
Equipped with a robust 7/16-Female connector to support high-power inputs, ideal for long-range Signal Security and radar detection systems.
Standard UDR Integration
Features a standardized UDR flange for secure mechanical mounting and repeatable results in professional spectrum monitoring and EMI testing.
