Description & Specification

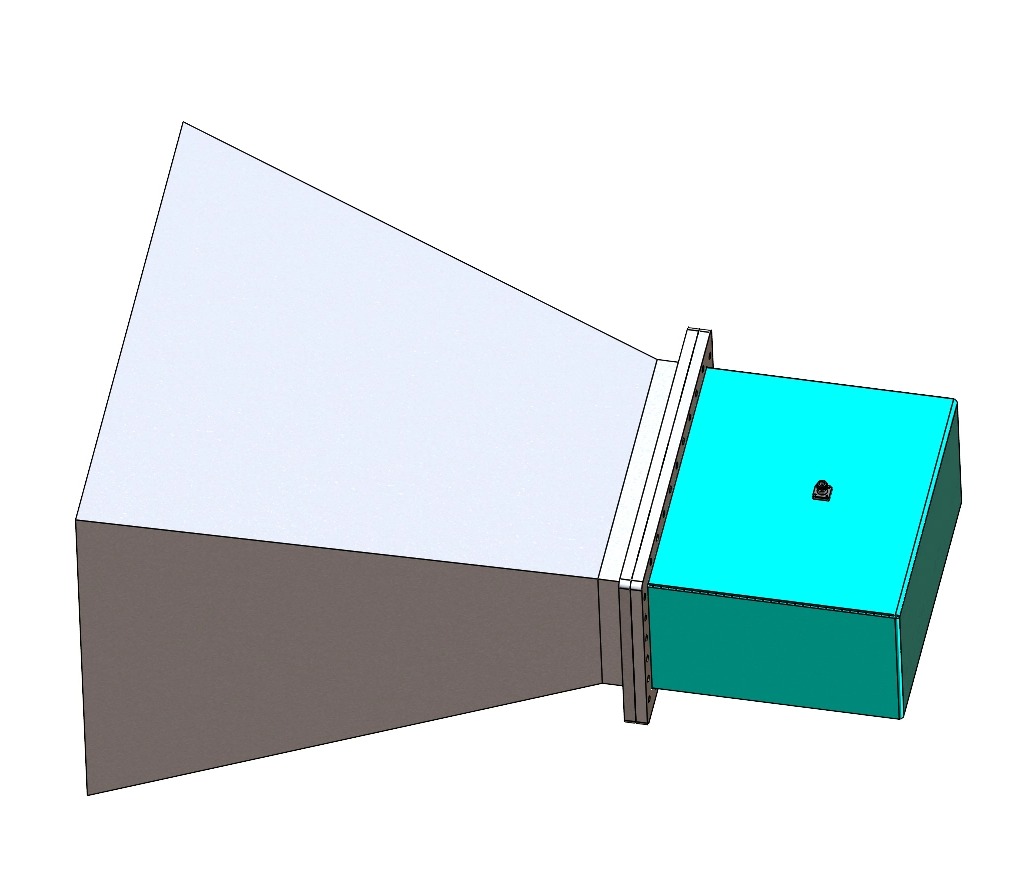

HS-1800-UDR-10A-NF WR1800 Standard Gain Horn Antenna
410 - 620 MHz | 1800W High Power | Waterproof Industrial Grade
The HS-1800-UDR-10A-NF is a high-precision WR1800 Standard Gain Horn Antenna designed for lower frequency microwave and UHF applications. Operating between 410 MHz and 620 MHz, it delivers a stable 10 dBi gain, making it an essential tool for EMI/EMC testing and securing absolute signal integrity. This robust aluminum antenna features a UDR flange and N-Female connector, supporting high power levels up to 1800W. With a waterproof structure and customizable options, it ensures reliability in both laboratory and field environments.
Electrical & RF Performance
| Frequency Range | 410 MHz - 620 MHz |
| Waveguide Interface | WR1800 |
| Nominal Gain | 10 dBi |
| Max Power Handling | 1800 Watts (CW) |
| Beamwidth (H/E) | 54° / 54° |
Mechanical & Physical

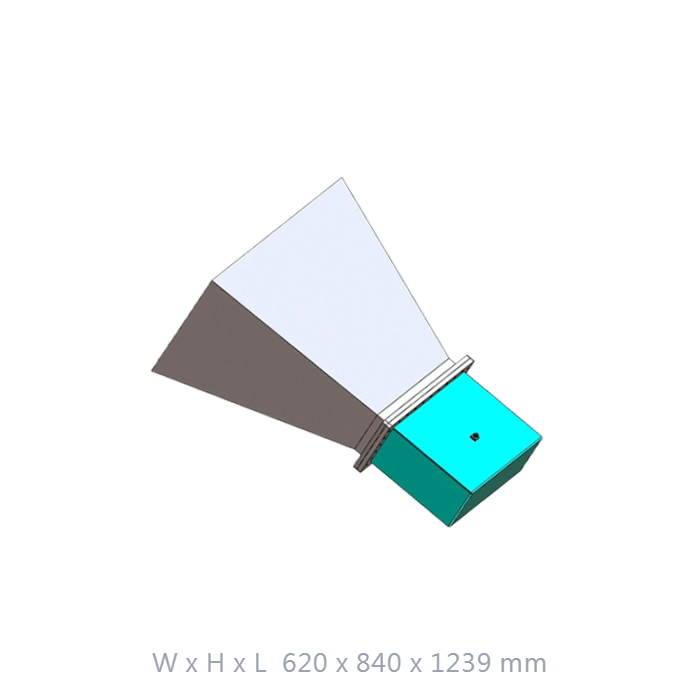

| Dimensions | 620 x 840 x 1239 mm |
| Weight | 27 kg |
| Connector Type | N-Female (Precision) |
| Protection | Waterproof Structure |
International Standard Compliance
Meets stringent global standards for waveguide dimensions and electrical performance in EMI/EMC environments, ensuring uncompromised signal integrity.
All-Weather Reliability
Engineered with a robust waterproof structure and industrial-grade materials, making it suitable for demanding outdoor or long-term field deployments.
High Power Performance
Safely manages up to 1800W of continuous power, providing stability for high-intensity RF applications.
Flexible Tactical Integration
Compatible with PTZ tracking systems and designed for easy integration with standard tripods for professional field usage.
Contact FT-RF Engineering Division
Contact our engineering team for specialized gain calibration reports, custom mechanical mounting solutions, or technical data for large-scale radar sub-systems.
