WI-2100-UDR-10 Standard Gain Horn Antenna
350 MHz to 530 MHz | 10 dBi Gain | WR2100 Waveguide
The WI-2100-UDR-10 is a high-performance WR2100 Standard Gain Horn Antenna specifically engineered for long-wavelength microwave and radar applications. Operating within the 350 MHz to 530 MHz range, it provides a stable 10 dBi gain and exceptional power handling up to 3000W. Constructed from high-grade aluminum with a UDR flange and N-Female connector, this antenna is the premier choice for Radar Detection Systems, Spectrum Monitoring, and EMI testing where precision and high power endurance are paramount.
Technical Specifications
Electrical Specifications
[Image of WR2100 waveguide dimensions and horn antenna radiation pattern]| Frequency Range | 350 MHz - 530 MHz |
| Waveguide Size | EIA WR2100 |
| Gain | 10 dBi |
| H-plane Beamwidth (-3dB) | 54° |
| E-plane Beamwidth (-3dB) | 54° |
| Maximum Power Handling | 3000 W |
| Waveguide Flange | UDR |
| Connector | N-Female |
Mechanical & Environmental Specifications

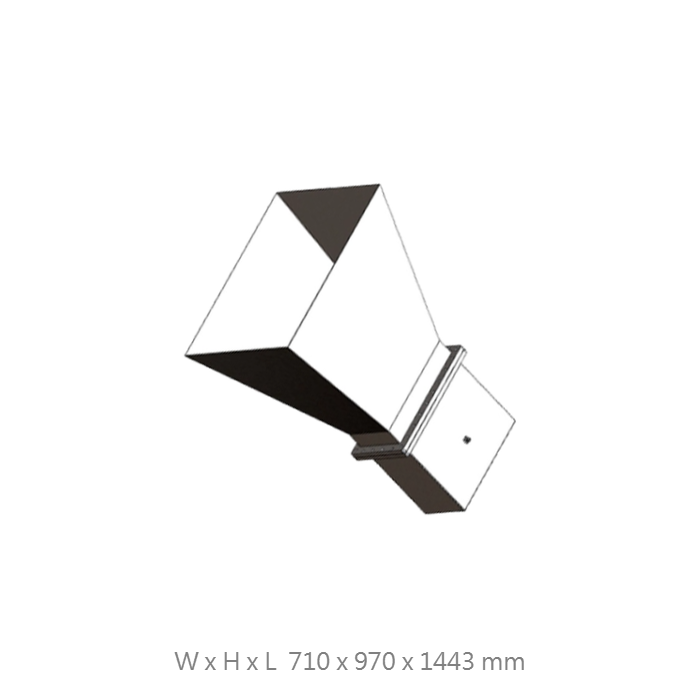

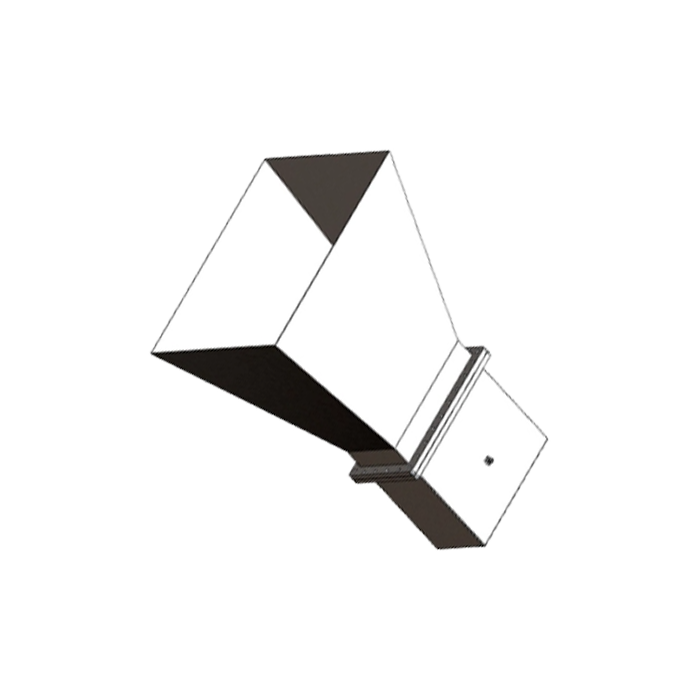

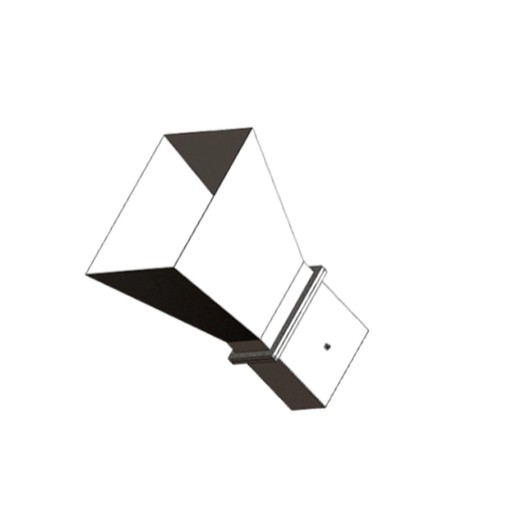

[Image of WI-2100-UDR-10 standard gain horn antenna mechanical drawing]| Dimensions (W x H x L) | 710 x 970 x 1443 mm |
| Antenna Weight | 37,000 g (37 kg) |
| Material | High-Grade Aluminum |
| Operating Environment | Indoor / Laboratory / Field Test |
| Manufacturing | Made in Taiwan |
Key Features
Optimized Low-Frequency Range
Specifically tuned for 350-530MHz, ideal for early-warning radar systems and spectrum surveillance.
Specifically tuned for 350-530MHz, ideal for early-warning radar systems and spectrum surveillance.
Extreme Power Endurance
Safely manages up to 3000W of power, providing superior stability for high-intensity EMI/EMC testing.
Safely manages up to 3000W of power, providing superior stability for high-intensity EMI/EMC testing.
Precision Beam Pattern
Balanced 54° beamwidth in both E and H planes ensures highly accurate directional antenna measurements.
Balanced 54° beamwidth in both E and H planes ensures highly accurate directional antenna measurements.
Robust Aluminum Build
Heavy-duty 37kg construction using 6061 Aluminum ensures mechanical integrity and low thermal expansion.
Heavy-duty 37kg construction using 6061 Aluminum ensures mechanical integrity and low thermal expansion.
Standardized UDR Flange
Features a universal UDR waveguide interface for secure and high-fidelity system integration.
Features a universal UDR waveguide interface for secure and high-fidelity system integration.
Taiwan Engineering Excellence
Precision manufactured in Taiwan to meet stringent industrial and military RF measurement standards.
Precision manufactured in Taiwan to meet stringent industrial and military RF measurement standards.
