Description & Specification

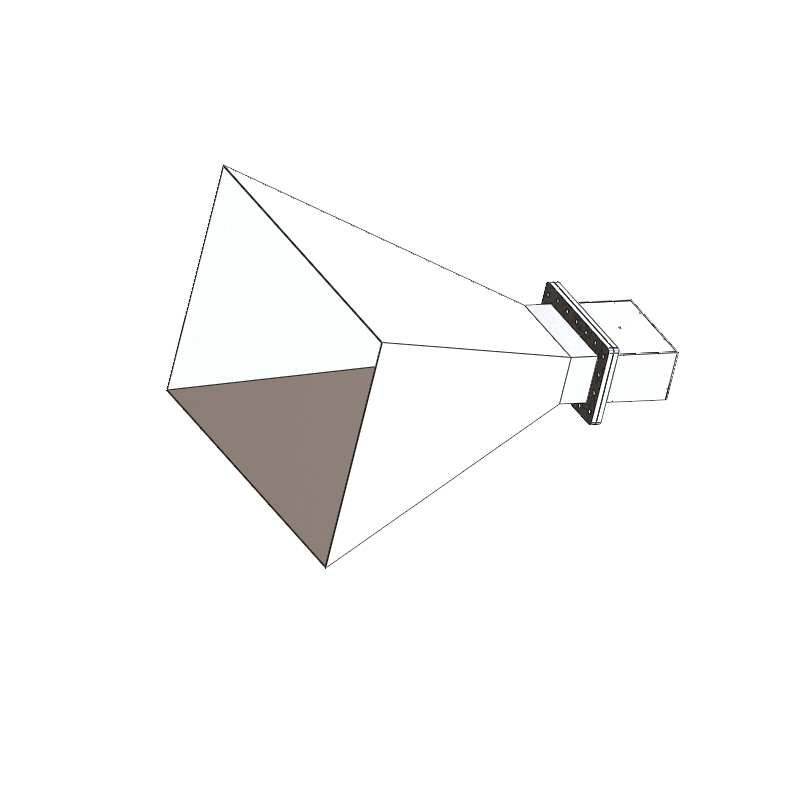

WR-975 Standard Gain Horn Antenna
Model: HS-975-UDR-15A-NF | 750 - 1150 MHz | 15 dBi | 1800W Max
The HS-975-UDR-15A-NF is a high-performance WR-975 Waveguide Horn Antenna specifically engineered for precision measurements and high-power operations within the 750 MHz to 1150 MHz range. Optimized for Signal Defense systems and professional communication dominance, it ensures consistent 15 dBi gain and low VSWR. Its robust 1800W power handling and controlled beamwidth make it an essential radiator for EMI/EMC testing, antenna calibration, and professional Signal Security infrastructure.
Electrical & RF Performance
| Waveguide Standard | WR-975 |
| Frequency Range | 750 MHz - 1150 MHz |
| Standard Gain | 15 dBi |
| Maximum Power Handling | 1800 Watts |
| 3dB Beamwidth (H/E Plane) | 29° / 27° |
| Polarization | Linear (Vertical or Horizontal) |
Mechanical & Physical Specs

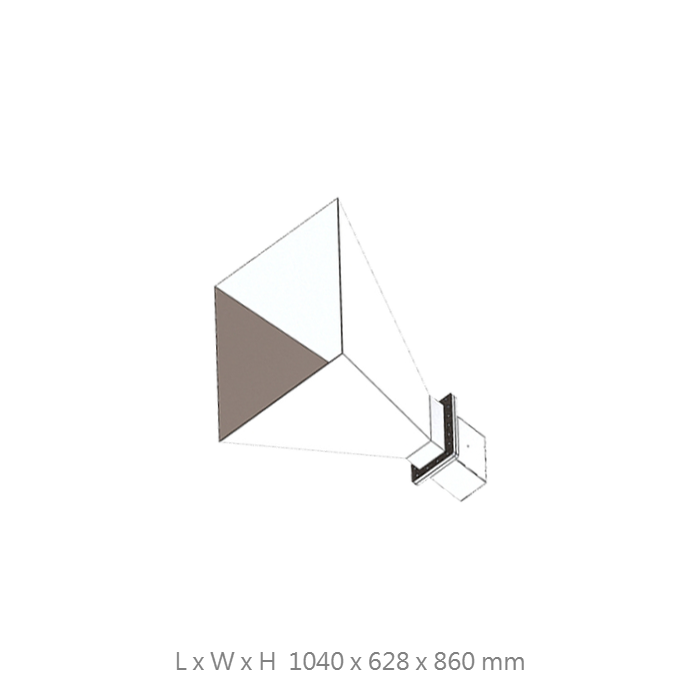

| Dimensions (WxHxL) | 628 x 860 x 1040 mm |
| Net Weight (N.W.) | 18 KG |
| Connector Type | Stainless Steel N-Female |
| Manufacturing Origin | Taiwan Design & Made in Taiwan |
High-Power Signal Integrity
Engineered to handle up to 1800 Watts continuous power, ensuring unwavering stability and interference mitigation in professional Signal Defense operations.
WR-975 Waveguide Precision
Features a standardized WR-975 waveguide interface to ensure low-loss propagation and superior mechanical survival in outdoor field environments.
Optimized Beam Focus
Provides a precise 29° horizontal and 27° vertical beamwidth, ideal for localized Signal Security protection and antenna pattern measurements.
Rugged Structural Build
Manufactured with high-durability materials and stainless steel connectors to withstand mechanical stress in field-deployed mobile platforms.
Get a Quote / Custom Antenna Solutions
Contact us for specialized gain configurations, alternative connector types, or integrated mounting adapters.
