320-490 MHz WR-2300 Standard Gain Waveguide Horn Antenna
Industrial Grade | 10 dBi Gain | 3000W High Power Handling
This Industrial Grade waveguide horn antenna is precision-engineered to provide maximum Signal Integrity in professional EMI/EMC testing and laboratory gain measurements. Covering the 320 MHz to 490 MHz frequency range with a stable 10 dBi gain and an exceptionally low V.S.W.R of 1.25, it delivers high-fidelity performance for critical Signal Management applications. Built for extreme conditions, this antenna handles up to 3000W maximum power and represents the highest standards of Taiwan-based RF excellence.
Technical Specifications
Electrical & RF Performance
| Frequency Range | 320 MHz - 490 MHz |
| Nominal Gain | 10 dBi |
| V.S.W.R (Max) | 1.25 : 1 |
| -3dB Beamwidth (H/E Plane) | 54° / 54° |
| Maximum Power Handling | 3000 Watts (CW) |
| Impedance | 50 Ohm |
Mechanical & Interface Data
| Waveguide Standard | WR-2300 (R4) |
| Waveguide Flange | UDR (Square) |
| Connector Type | N-Female (Precision) |

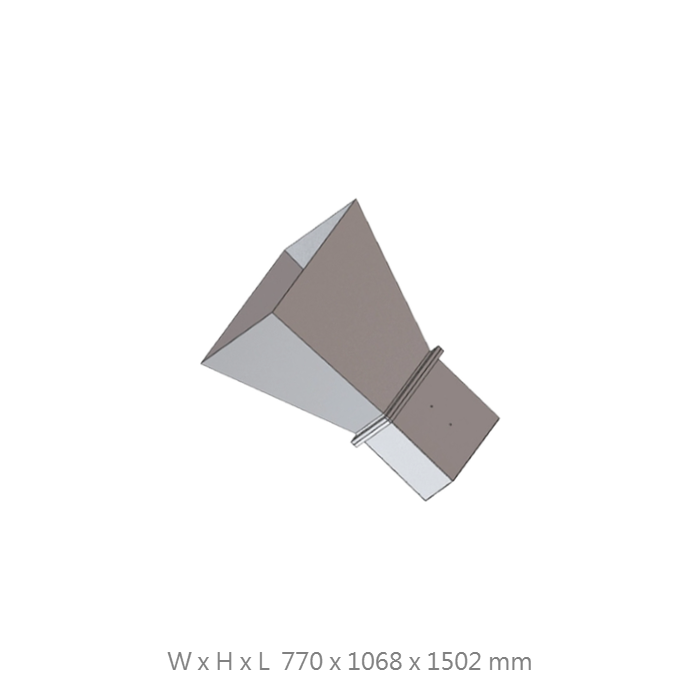

| Dimensions (W x H x L) | 770 x 1068 x 1502 mm |
| Weight | 54000 g (Rugged Build) |
| Manufacturing Origin | Made in Taiwan (FT-RF) |
Professional Tactical Features
Superior Signal Integrity
Specifically optimized for EMI/EMC profiling with high power overhead and low V.S.W.R to ensure absolute measurement accuracy in professional test environments.
Industrial Grade Durability
Rugged, heavy-duty construction with high-grade materials, suitable for permanent antenna mounting, heavy tripod installations, and long-term site deployment.
Customizable Signal Management
Tactical-ready platform supporting optional waterproof structures, specialized PTZ control integration, and custom color coating to meet specific mission requirements.
High Power Efficiency
Engineered to reliably handle 3000W of continuous power while maintaining structural and electrical integrity during high-intensity laboratory operations.
Inquire About Professional Horn Solutions
Contact our engineering team for specialized gain calibration reports, custom mechanical integration, or technical support regarding large-scale RF measurement setups.
