410 MHz to 620 MHz WR-1800 Standard Gain Horn Antenna
Model: HS-1800-UDR-10A-716 | 10 dBi Gain | 3000W High Power

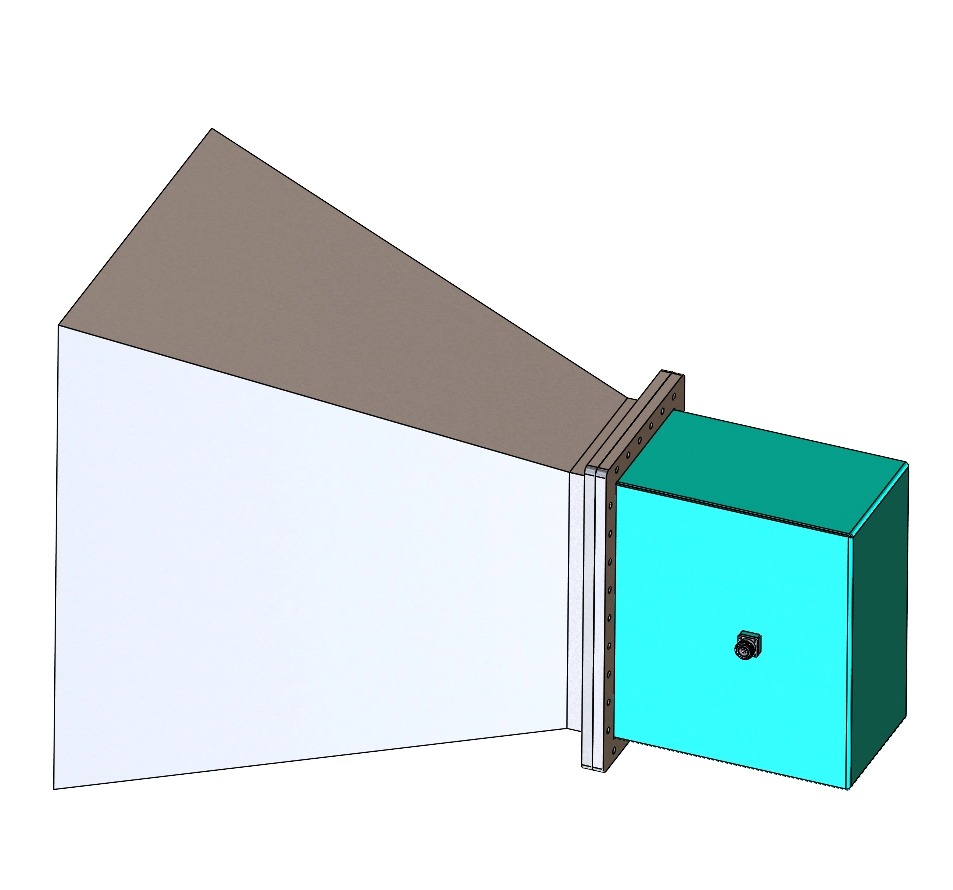

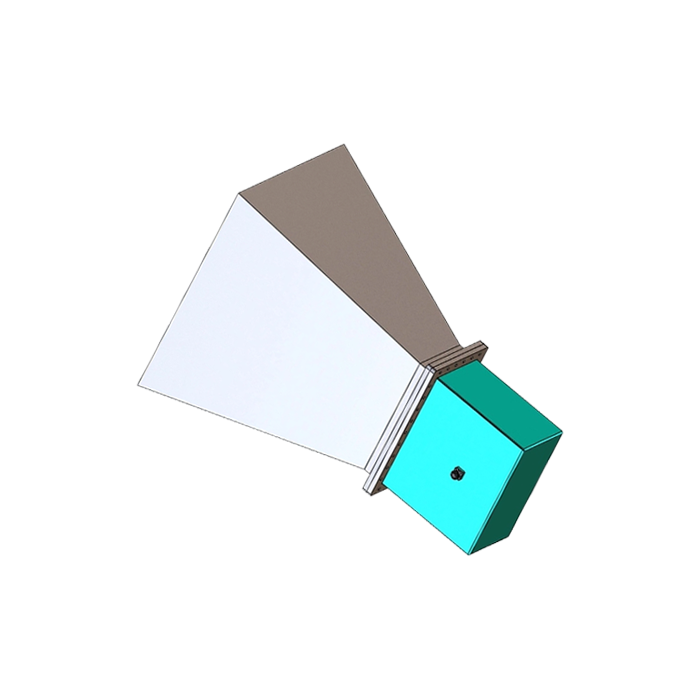

The HS-1800-UDR-10A-716 is a high-performance WR-1800 Waveguide Horn Antenna professionally engineered for high-power applications. Delivering a stable 10 dBi gain across the 410 MHz to 620 MHz spectrum, it handles intensive continuous power loads up to 3000 Watts (CW). Precision-manufactured from aerospace-grade aluminum with a standard UDR Waveguide Flange and high-fidelity 7/16-Female connector, this antenna ensures unwavering Signal Integrity and thermal stability for advanced Signal Defense operations and high-intensity laboratory EMI/EMC testing.
Technical Specifications
Electrical & RF Performance
| Frequency Range | 410 MHz to 620 MHz |
| Waveguide Standard | WR-1800 / WG5 / R5 |
| Nominal Gain | 10 dBi |
| V.S.W.R (Max) | 1.25 : 1 |
| -3dB Beamwidth (H/E Plane) | 54° / 54° |
| Maximum Power Handling | 3000 Watts (CW) |
| Impedance | 50 Ohm |
Mechanical & Material

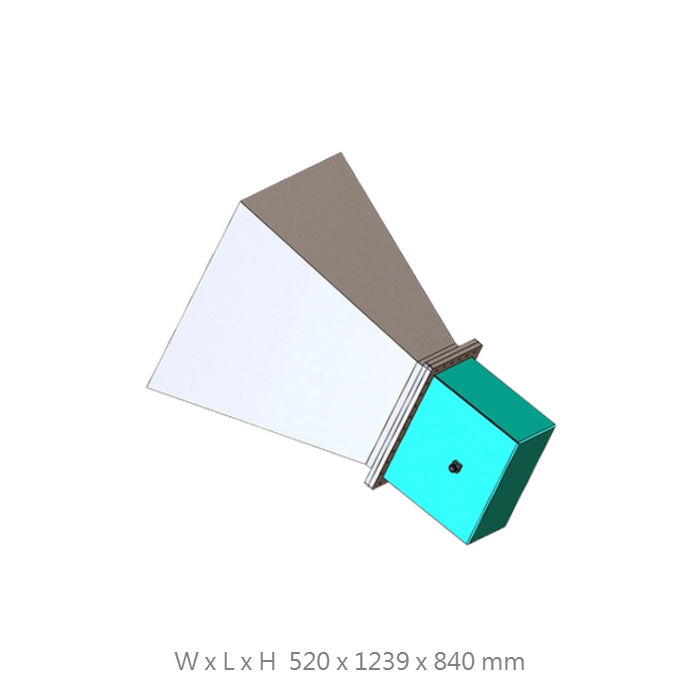

| Dimensions (W x H x L) | 620 x 840 x 1239 mm |
| Net Weight | 27.0 kg (Professional Series) |
| Waveguide Flange | UDR Style Flange |
| Body Material | High-Grade Aerospace Aluminum Alloy |
| Connector Interface | 7/16-Female (DIN Type) |
| Design & Origin | Taiwan Design / Made in Taiwan (FT-RF) |
Key Tactical & Lab Features
3000W High-Power Capacity
Engineered to handle rigorous continuous power levels, providing a robust radiator for intensive Signal Security operations and immunity testing.
Optimized UHF Architecture
Precise WR-1800 geometry ensures minimal return loss and stable radiation patterns across the 410-620 MHz spectrum for accurate calibration.
Aerospace-Grade Thermal Build
Constructed from premium aluminum alloy to ensure superior heat dissipation and structural rigidity in field-deployed Signal Defense platforms.
Consolidated Performance Data
Supported by comprehensive calibration databases for accurate system integration and repeatable, traceable measurement results.
Request a Professional Quote
Contact our engineering team to obtain individual calibration certificates, VSWR plots, or technical support regarding high-power structural mounting.
