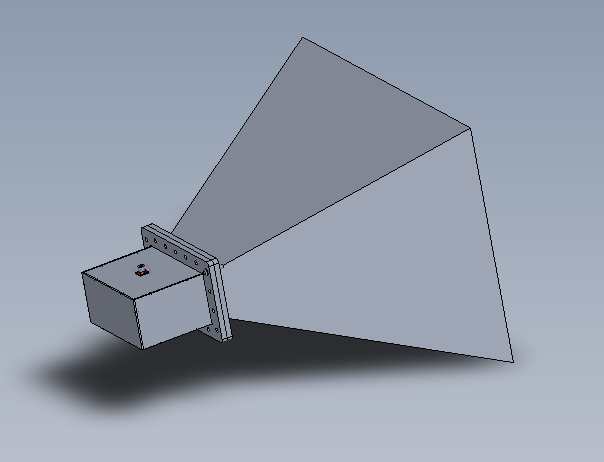

WI-975-A1-15 Standard Gain Horn Antenna
750 MHz to 1120 MHz | 15 dBi High Gain | WR-975 Waveguide
The WI-975-A1-15 (Model No. HS-97515A-SF) is a high-precision Standard Gain Waveguide Horn Antenna professionally engineered by Fei Teng Wireless Technology Co., Ltd. (FT-RF). Operating within the 750 MHz to 1120 MHz frequency range, it delivers a stable directional gain of 15 dBi. Crafted in Taiwan, this antenna utilizes a WR-975 waveguide styling and is equipped with a premium WC-975-A1-NF coaxial adapter featuring a high-integrity Stainless Steel SMA-Female connector. It is an essential tool for high-accuracy UHF and L-band microwave measurements, radar system calibration, and wireless communication testing.
Technical Specifications
Electrical Specifications
| Frequency Range | 750 MHz - 1120 MHz |
| Gain | 15 dBi |
| -3dB Beam-width (Horizontal) | 29° |
| -3dB Beam-width (Vertical) | 27° |
| Polarization | Vertical or Horizontal |
| Impedance | 50 Ohm |
| Connector | Stainless Steel SMA-Female |
Mechanical Specifications
| Waveguide Size | WR-975 |
| Material | Aluminum Alloy / Stainless Steel Connector |
| Coaxial Adapter Model | WC-975-A1-NF |
| Origin | Taiwan Design, Made in Taiwan |
Key Features
UHF/L-Band Specialization
Specifically optimized for the 750 - 1120 MHz spectrum, providing high accuracy for radar and satellite communication testing.
Specifically optimized for the 750 - 1120 MHz spectrum, providing high accuracy for radar and satellite communication testing.
Superior 15 dBi Gain
Delivers a reliable high-gain profile, making it a premier reference antenna for precise laboratory measurements.
Delivers a reliable high-gain profile, making it a premier reference antenna for precise laboratory measurements.
Stainless Steel Connector
Equipped with a high-grade stainless steel SMA-Female connector for improved wear resistance and RF integrity.
Equipped with a high-grade stainless steel SMA-Female connector for improved wear resistance and RF integrity.
Stable Directional Performance
Engineered for uniform gain and balanced beamwidths (29° Horz / 27° Vert) across the operating bandwidth.
Engineered for uniform gain and balanced beamwidths (29° Horz / 27° Vert) across the operating bandwidth.
Rugged Construction
Manufactured using high-quality aluminum alloy to ensure mechanical stability and lightweight durability.
Manufactured using high-quality aluminum alloy to ensure mechanical stability and lightweight durability.
Taiwan Engineering
Precision designed and manufactured in Taiwan to meet the highest industrial RF testing standards.
Precision designed and manufactured in Taiwan to meet the highest industrial RF testing standards.
Contact Us
For pricing, data sheets, or technical support regarding the WI-975-A1-15, please contact us:
