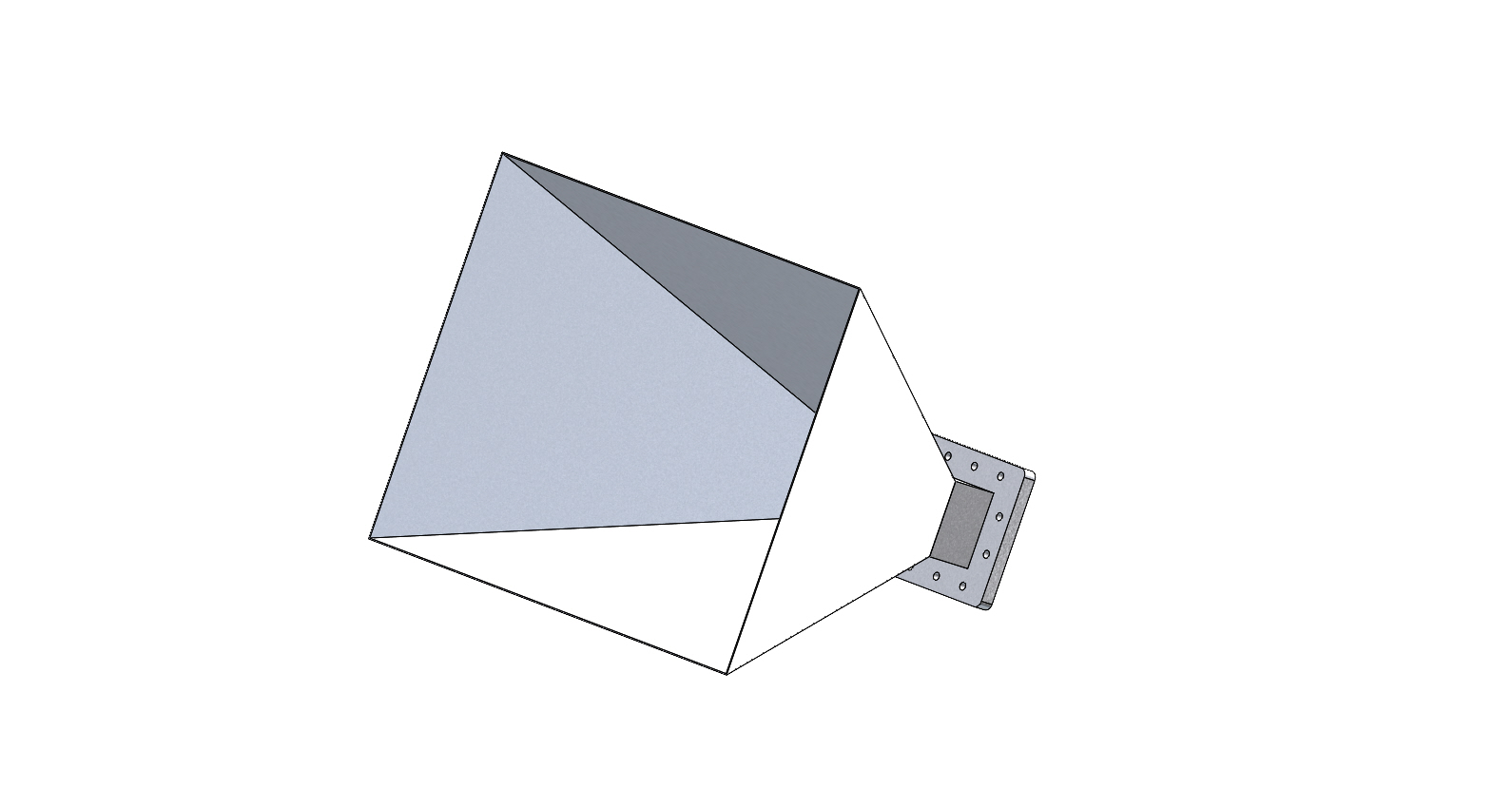

WR-770 Standard Gain Waveguide Horn Antenna
Model: WI-770-UDR-15 | 0.97 - 1.45 GHz | 15 dBi | 3000W
The WI-770-UDR-15 is a high-power Waveguide Horn Antenna professionally engineered for precision measurement and high-intensity RF operations within the 0.97 GHz to 1.45 GHz (L-Band) spectrum. Precision-manufactured from high-grade aluminum and featuring a standard UDR Waveguide Flange, it manages extreme thermal power loads up to 3000 Watts. This model ensures exceptional Signal Integrity and stable directional gain, making it an essential radiator for mission-critical Signal Defense, antenna calibration, and long-range transmitter deployments.
Technical Specifications
Electrical & RF Performance
| Waveguide Standard | WR-770 |
| Frequency Range | 0.97 to 1.45 GHz |
| Standard Gain | 15 dBi |
| Maximum Power Handling | 3000 Watts |
| -3dB Beamwidth (H / E Plane) | 19° / 20° |
Mechanical & Physical Specs

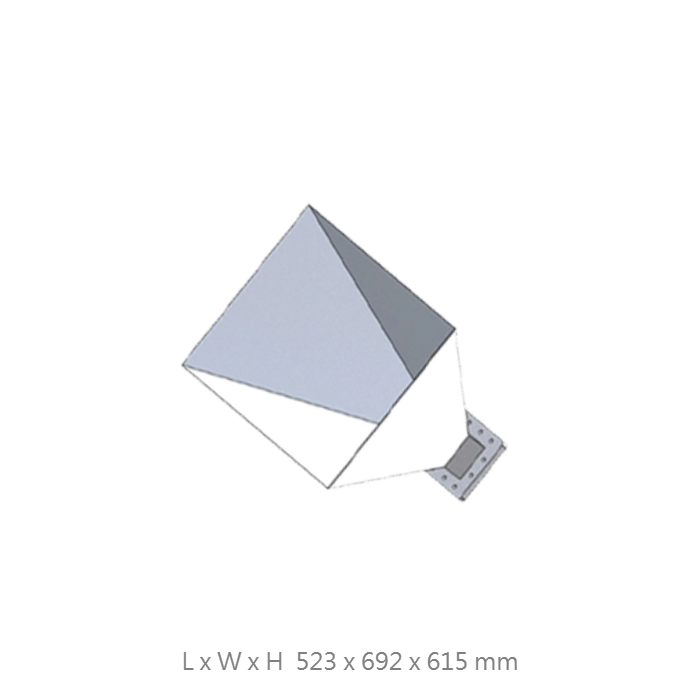

| Dimensions (LxWxH) | 523 x 692 x 615 mm |
| Net Weight | 6000 g (6.0 kg) |
| Waveguide Flange | UDR Style |
| Material | High-Grade Aluminum |
| Origin | Made in Taiwan (FT-RF) |
Key Tactical Features
3000W High-Power Domination
Specifically engineered to handle massive continuous power loads, providing a robust radiator for high-intensity laboratory testing and signal dominance operations.
High-Gain Focused Pattern
Delivers a focused 15 dBi gain profile with narrow beamwidths (19°/20°), ideal for long-range calibration and advanced microwave measurements.
L-Band Signal Integrity
Optimized for the 0.97-1.45 GHz spectrum, ensuring low loss and stable performance for professional communication and protection networks.
Precision Aluminum Build
Weighing 6kg, this large-scale antenna provides exceptional structural rigidity while remaining durable for long-term laboratory or tactical range use.
