Description & Specification

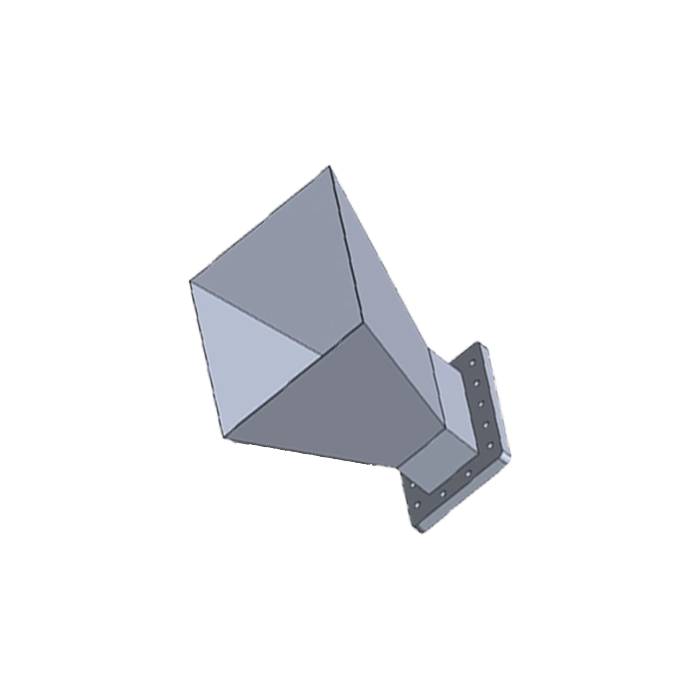

WR-770 Standard Gain Waveguide Horn Antenna
Model: WI-770-UDR-10 | 0.97 - 1.45 GHz | 10 dBi | 3000W
The WI-770-UDR-10 is a high-power Waveguide Horn Antenna professionally engineered for precision measurement and high-intensity RF operations within the 0.97 GHz to 1.45 GHz (L-Band) spectrum. Precision-manufactured from high-grade aluminum with a standard UDR Waveguide Flange, it manages extreme power loads up to 3000 Watts. This model ensures exceptional Signal Integrity and stability, making it an essential component for EMI/EMC Testing, antenna calibration, and advanced Signal Defense infrastructure.
Technical Specifications
Electrical & RF Performance
| Waveguide Standard | WR-770 |
| Frequency Range | 0.97 to 1.45 GHz |
| Standard Gain | 10 dBi |
| Maximum Power Handling | 3000 Watts |
| -3dB Beamwidth (H / E Plane) | 58° / 56° |
Mechanical & Physical Specs
| Dimensions (LxWxH) | 290 x 390 x 392 mm |
| Net Weight | 3300 g (3.3 kg) |
| Waveguide Flange | UDR Style |
| Material | High-Grade Aluminum |
| Origin | Made in Taiwan (FT-RF) |
Key Tactical Features
3000W High-Power Capacity
Specifically engineered to handle massive power loads, providing a robust radiator for high-intensity laboratory testing and signal dominance operations.
L-Band Signal Security
Optimized for the 0.97-1.45 GHz spectrum, supporting advanced signal management and interference mitigation in professional RF networks.
Superior Signal Integrity
The precision aluminum construction ensures low return loss and consistent gain profile across the entire operating frequency range.
Standardized UDR Interface
Equipped with a standard UDR waveguide flange for secure mechanical coupling and minimal signal leakage in mission-critical systems.
