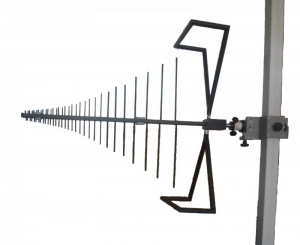

Description & Specification
Applications:
- 30 MHz to 3GHz
- General Antenna Testing, EMC/EMI pre-compliance test antennas
- Radar Cross Section
- Wireless
Features
- High Power 1KW (Cont)
- DC Short lightning protection
- Low VSWR
- Uniform Gain
- 6061 Aluminum metal alloy
- Stainless Steel N-female
- Very high gain over the full frequency range.
- Meets latest EMI/EMC standards up to 3GHz.
Electrical Specifications
|
Frequency Range |
30MHz - 3000MHz |
|
V.S.W.R |
30Mhz-50Mhz 50.0 : 1 50Mhz-200Mhz 14.0 : 1 200Mhz-3Ghz 2.2 : 1 |
|
Antenna Type |
Log |
|
Radiation |
Directional |
|
Gain |
3-11 dBi |
|
Antenna Factor |
24 - 45 dB/m |
|
Polarization |
Vertical or Horizontal |
|
Maximum Power |
500 Watts |
|
Vertical Beam-width |
30Mhz-250Mhz >=120∘ |
|
Horizontal Beam-width |
30Mhz-250Mhz >=65∘ |
|
Impedance |
50 Ohm |
|
Connector |
N-Female |

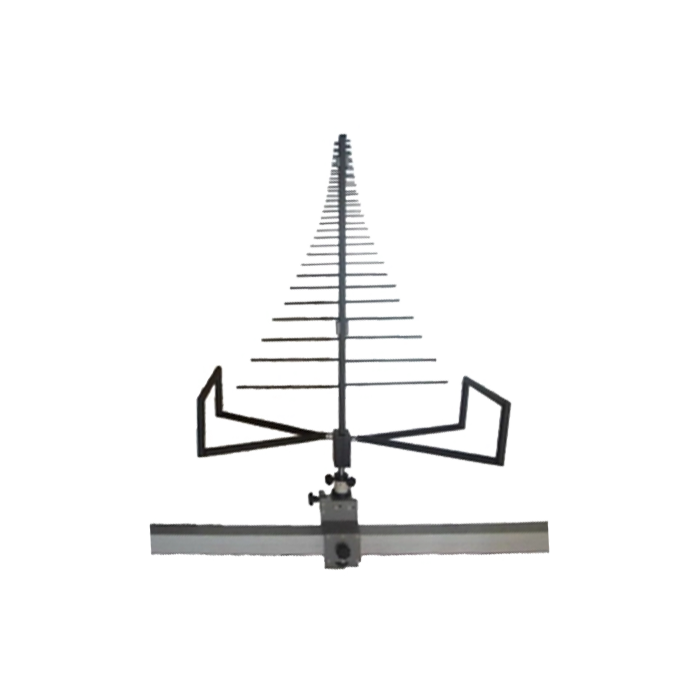

Mechanical Specifications
|

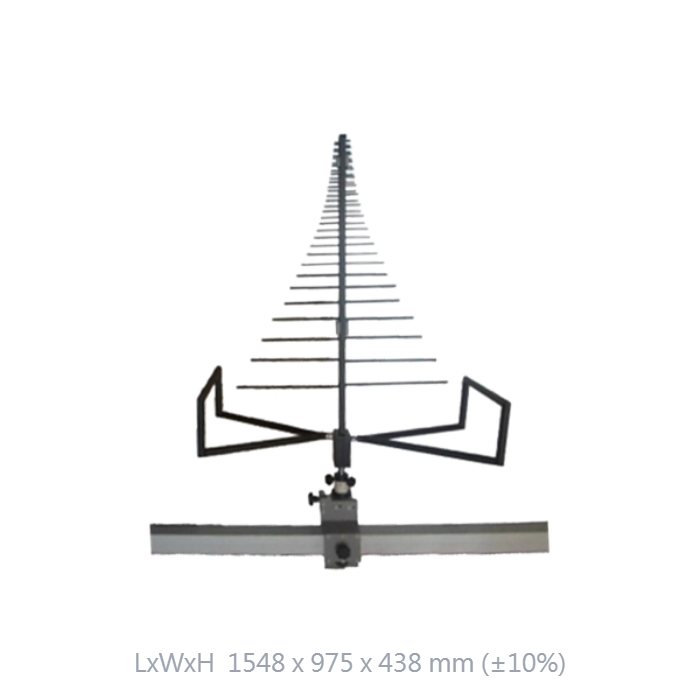

Length (MAX) |
1548 mm(+-10%) |
|
Diameter (MAX) |
975 x 438 mm(+-10%) |
|
Antenna Weight (G.W) |
5200 g |
|
Application |
Indoor / Outdoor |
|
Storage Temperature |
-40 to +80 |
|
Operating Temperature |
-40 to +60 |
|
Operating Humidity |
10%~90% non-condensing |
|
Storage Humidity |
5%~90% non-condensing |
|
Safety, Emission and other |
RoHS,FCC,CE,ISO |
