Description & Specification

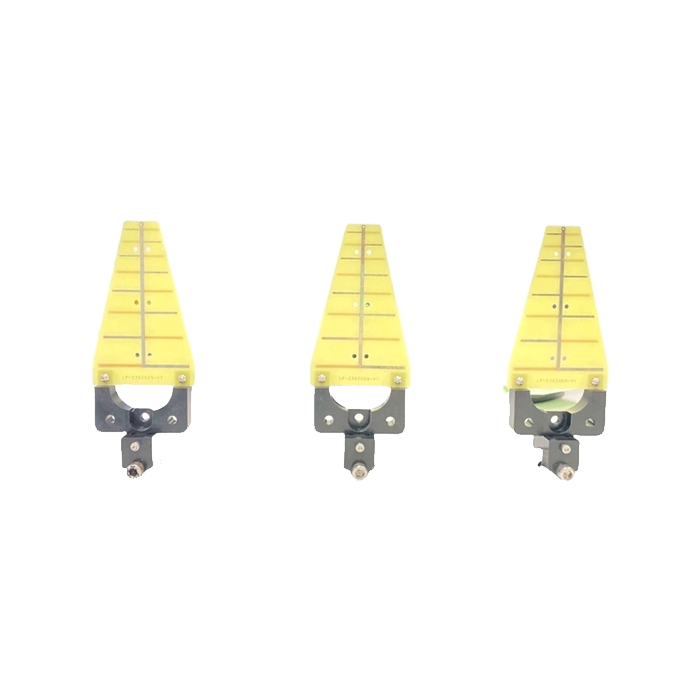

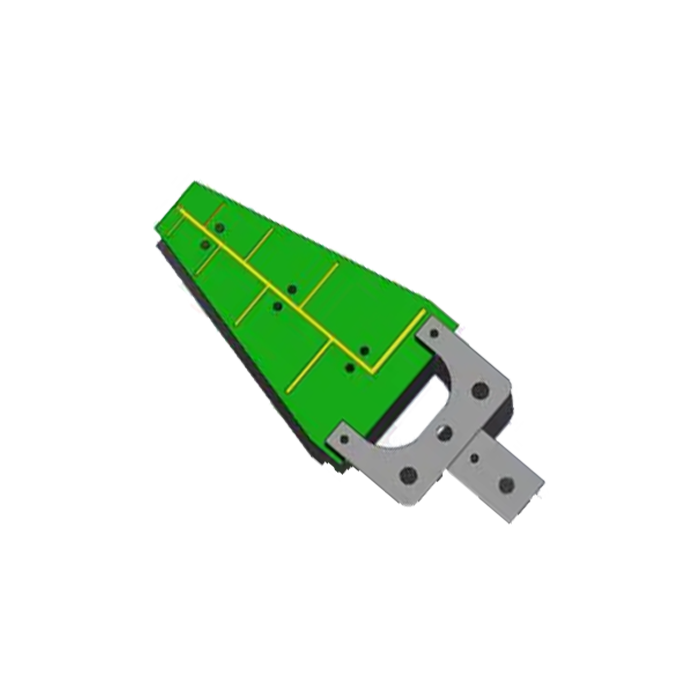

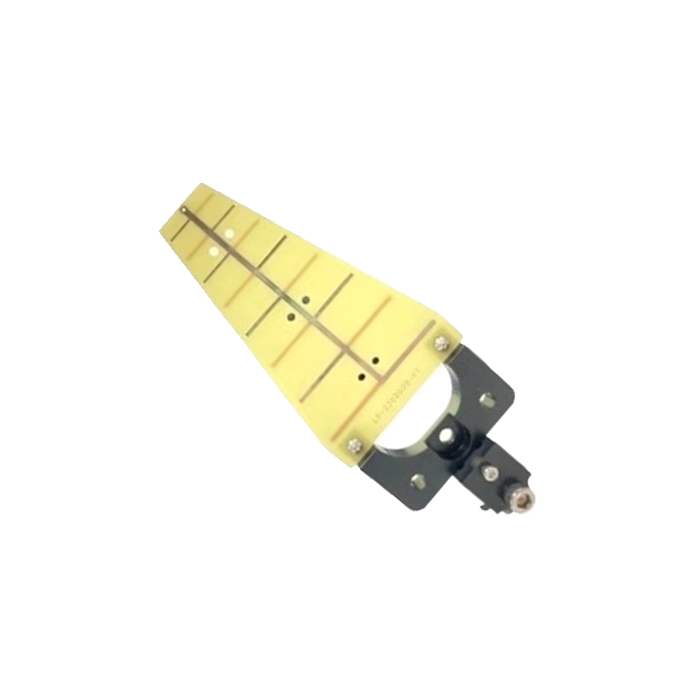

LP-2362G09-PCB Wideband Log-Periodic Antenna
2.3 GHz - 6.2 GHz | Directional PCB Radiator | Ultra-Lightweight 10g
The LP-2362G09-PCB is a professional-grade PCB Log Antenna engineered for high-bandwidth versatility across the 2.3 GHz to 6.2 GHz spectrum. Utilizing precision-etched dipole elements on a specialized substrate, it delivers consistent directional gain and low VSWR throughout its operational range. Ideal for Signal Defense, airborne tactical links, and integrated RF monitoring, its ultra-compact 66x105mm form factor allows for seamless integration into portable hardware where space and weight are critical constraints.
Core Technical Specifications
| Model Number | LP-2362G09-PCB |
| Antenna Type | PCB Log-Periodic Dipole Array (LPDA) |
| Frequency Range | 2.3 GHz to 6.2 GHz |
| Dimensions (LxWxH) | 66 x 10 x 105 mm |
| Net Weight (N.W.) | 10 g |
| Substrate Material | High-Frequency RF Grade PCB |
Key Tactical Features
Wideband Dominance
Covers a massive frequency range from 2.3GHz to 6.2GHz, supporting multiple protocols including 2.4/5.8GHz Wi-Fi and tactical S/C bands.
Ultra-Lightweight Integration
Weighing only 10g, this antenna is optimized for weight-sensitive applications such as small UAVs and hand-held protection operations hardware.
Superior Signal Integrity
The log-periodic design ensures uniform performance and stable radiation patterns across the entire bandwidth for mission-critical monitoring.
Compact Low-Profile Design
The 10mm thickness and flat PCB structure facilitate flush mounting and internal housing within compact RF enclosures.
Get a Quote / Custom Wideband Solutions
Contact our engineering team for gain plots, radiation patterns, or specialized connector mounting requirements.
