WR-75 Standard Gain Horn Antenna with N-Type Adapter
Model: HS-075-UBR-15-NF | 10.0 - 15.0 GHz | 15 dBi | 250W
The HS-075-UBR-15-NF is a high-precision Ku-Band Standard Gain Waveguide Horn Antenna expertly integrated with a low-loss waveguide-to-coaxial adapter, engineered and manufactured by Fei Teng Wireless Technology Co., Ltd. (FT-RF). Operating across the microwave spectrum within the continuous 10.0 GHz to 15.0 GHz frequency range, this premium system delivers a highly consistent directional nominal gain of 15 dBi. Featuring a standardized UBR 120 (M3922/70-004 compatible) waveguide flange mating face paired with a precision stainless steel N-Female coaxial interface connector, it ensures flawless structural impedance integration and ultra-low-loss power transfer. Safely managing continuous wave power loads up to 250 Watts (CW), this radiator is precision structured from high-grade aluminum alloy in Taiwan, yielding a lightweight 130g configuration footprint paired with a maximum V.S.W.R threshold of 1.25 : 1. It stands as an essential instrument for high-fidelity laboratory EMI/EMC testing, automated antenna gain calibration ranges, and mission-critical field deployments where superior Signal Integrity is paramount.
Electrical & RF Performance
| Frequency Range Class | 10.0 GHz to 15.0 GHz (Continuous Ku-Band Spectral Optimization) |
| Waveguide Standard Size | EIA WR-75 / R120 Geometry Layout |
| Nominal Gain Baseline | 15 dBi |
| V.S.W.R Profile (Max) | 1.25 : 1 (Precision Minimal Reflection Performance) |
| Maximum Power Handling | 250 Watts (CW Continuous Wave Limit) |
| -3dB Beamwidth (H-Plane / E-Plane) | 32° / 31° |
| Nominal System Impedance | 50 Ohm |
Mechanical & Physical Specs

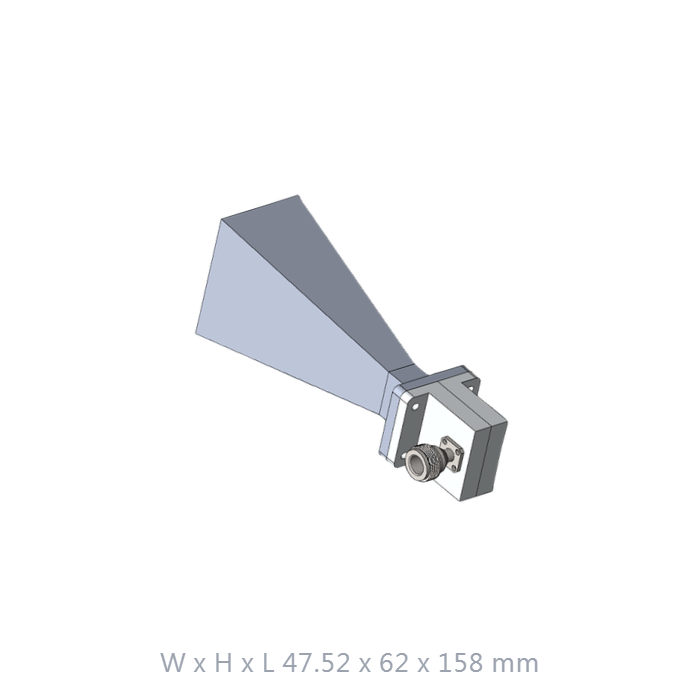

| Physical Dimensions (W x H x L) | 47.52 x 62 x 158 mm |
| Antenna Net Weight Profile | 130 g (Precision Lightweight Design) |
| Waveguide Flange Interface | UBR 120 (M3922/70-004 Standard Compatible) Layout Face |
| Coaxial Connector Type | N-Female (Precision Stainless Steel / SUS Architecture) |
| Structural Body Material | High-Grade Structural Aluminum Alloy |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF Professional Grade) |
Uniform Gain & Pattern Control
Optimized for the 10.0-15.0 GHz band, delivering the gain flatness and boresight accuracy required for high-fidelity antenna calibration and laboratory testing.
Heavy-Duty SUS Interface
Equipped with a high-durability stainless steel N-Female connector, providing reliable electrical contact and structural wear resistance for repeated long-cycle usages.
Lightweight Aluminum Build
Weighing only 130g, this compact horn antenna ensures minimal load on precision laboratory positioners while maintaining high mechanical structural strength.
Customizable Infrastructure Ready
Fully adaptable architectural framework with advanced options for waterproof builds, automated PTZ control functions, and specialized mounting designs to meet specific outdoor tactical requirements.
Contact FT-RF Engineering Team
Contact our technical engineering division today to request official quote sheets, individual certified radiation calibration sheets, specialized PTZ control options, or customized outdoor mounting interfaces.
