Description & Specification

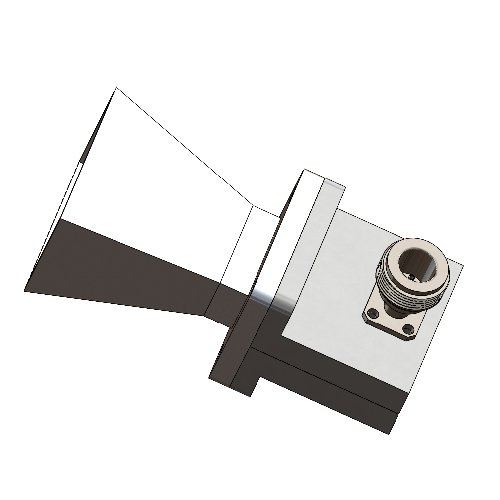

X/Ku-Band Standard Gain Horn
WR-75 Waveguide | 10 GHz – 15 GHz | 10 dBi
The HS-075-UBR-10-NF is a high-precision standard gain horn antenna professionally engineered for broadband microwave measurements and laboratory calibration. Operating across the 10 GHz to 15 GHz frequency range, it features a standardized WR-75 waveguide interface with UBR flange compatibility. Delivering a stable 10 dBi gain and uniform radiation patterns, this antenna is an essential tool for Signal Integrity verification, antenna gain measurements, and professional EMI/EMC testing where industrial-grade accuracy and structural reliability are paramount.
Technical Specifications
Electrical RF Performance
[Image of standard gain horn antenna radiation pattern]
| Frequency Range | 10 GHz - 15 GHz |
| Antenna Type | Standard Gain Horn |
| Nominal Gain | 10 dBi |
| V.S.W.R | 1.25 : 1 (Typical) |
| -3dB Beamwidth | H-Plane: 54° | E-Plane: 54° |
| Maximum Power Handling | 300 Watts |
Mechanical & Interface Data
| Connector Type | N-Female (Stainless Steel / SUS) |
| Waveguide / Flange | WR-75 / UBR 120 (M3922/70-004/005) |

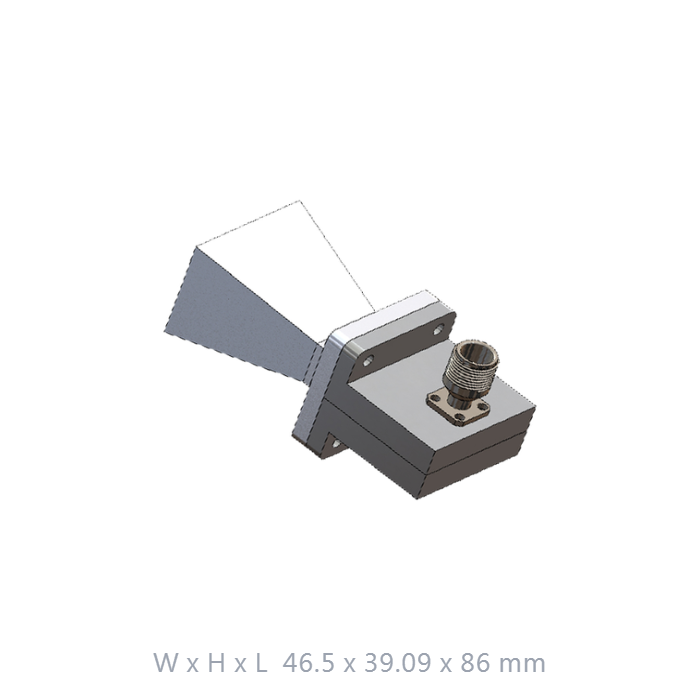

| Dimensions (W x H x L) | 46.5 x 39 x 86 mm |
| Net Weight | 120 g |
| Material Finish | Industrial Grade Aluminum Alloy |
| Manufacturing Origin | Taiwan Design & Made in Taiwan |
Professional Tactical Features
X/Ku-Band Precision Integrity
Designed specifically for the 10-15 GHz spectrum, providing highly stable electrical performance and minimal losses for critical Signal Integrity measurements.
Industrial SUS Interface
Equipped with a precision stainless steel (SUS) N-Female connector to ensure reliable mating cycles and standardized connectivity with professional RF test equipment.
Robust Structural Design
Compact aluminum alloy construction (46.5x39x86mm) ensures exceptional mechanical rigidity and thermal stability during continuous laboratory duty cycles.
Custom Engineering Flexibility
Available for advanced modifications including waterproof structures, PTZ control integration, tripod mounting, and specialized color finishes.
Inquire About Custom Solutions
