Description & Specification

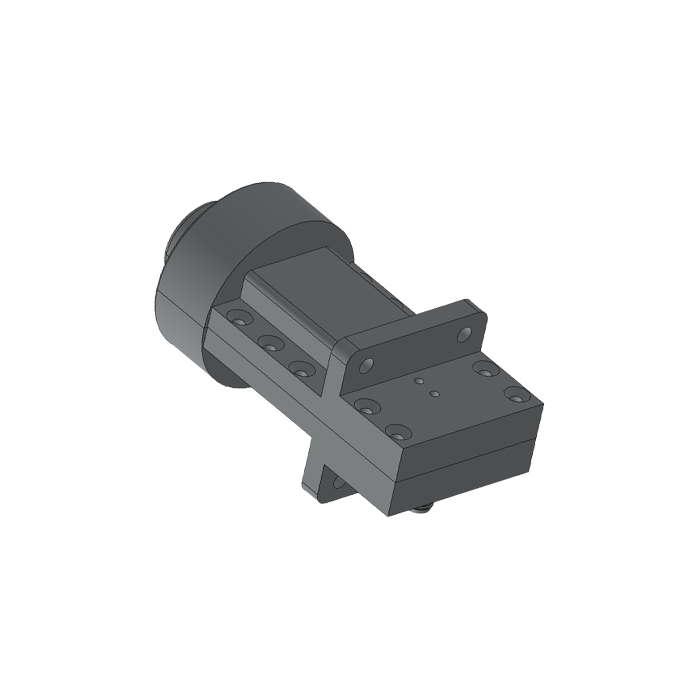

WR-75 Standard Gain Feed Horn Antenna
Model: HS-075-UBR-10T-SF | 10.0 - 15.0 GHz | 10 dBi | 300W
The HS-075-UBR-10T-SF is a high-precision Feed Horn Antenna professionally engineered for the WR-75 waveguide standard. Operating within the 10.0 GHz to 15.0 GHz Ku-Band spectrum, this antenna system integrates a low-loss transition to a high-durability SMA-Female interface. Designed for uniform gain and low VSWR (1.25), it serves as an ideal primary radiator for reflector antennas or as a standalone unit for EMI/EMC Testing and antenna gain measurements, ensuring superior Signal Integrity in demanding RF environments.
Electrical & RF Performance
| Waveguide Standard | WR-75 (R120) |
| Frequency Range | 10.0 GHz to 15.0 GHz |
| Standard Gain | 10 dBi |
| Maximum Power Handling | 300 Watts (CW) |
| V.S.W.R (Max) | 1.25 : 1 |
| -3dB Beamwidth (H / E Plane) | 42° / 42° |
Mechanical & Physical Specs

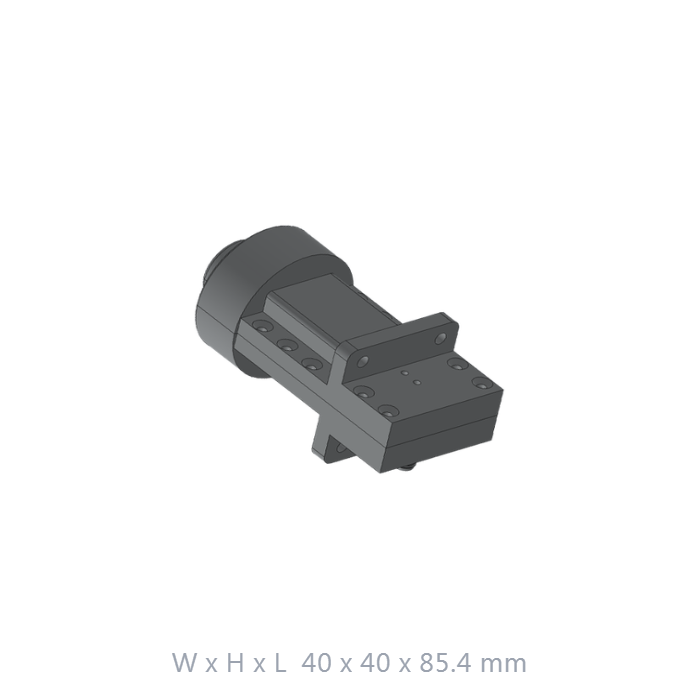

| Dimensions (WxHxL) | 40 x 40 x 85.4 mm |
| Net Weight | 120 g |
| Waveguide Flange | UBR Style |
| Coaxial Connector | SMA-Female |
| Material | High-Grade Aluminium |
| Origin | Made in Taiwan (FT-RF) |
Ku-Band Pattern Control
Optimized for the 10.0-15.0 GHz band, delivering symmetrical 42° beamwidths and gain flatness required for precision antenna calibration and feed applications.
300W Power Capacity
Designed to handle up to 300W continuous power, providing a stable and reliable radiator for high-intensity laboratory testing and tactical signal protection.
Compact & Lightweight Build
Weighing only 120g, this compact horn antenna ensures minimal load on precision laboratory positioners while maintaining superior structural rigidity.
Customizable Infrastructure
Available with options for waterproof structures, PTZ control functions, and specialized tripod mounting to meet specific field or research requirements.
Get a Quote / Custom RF Solutions
Contact us for specialized PTZ control, waterproof builds, or custom mounting interfaces.
