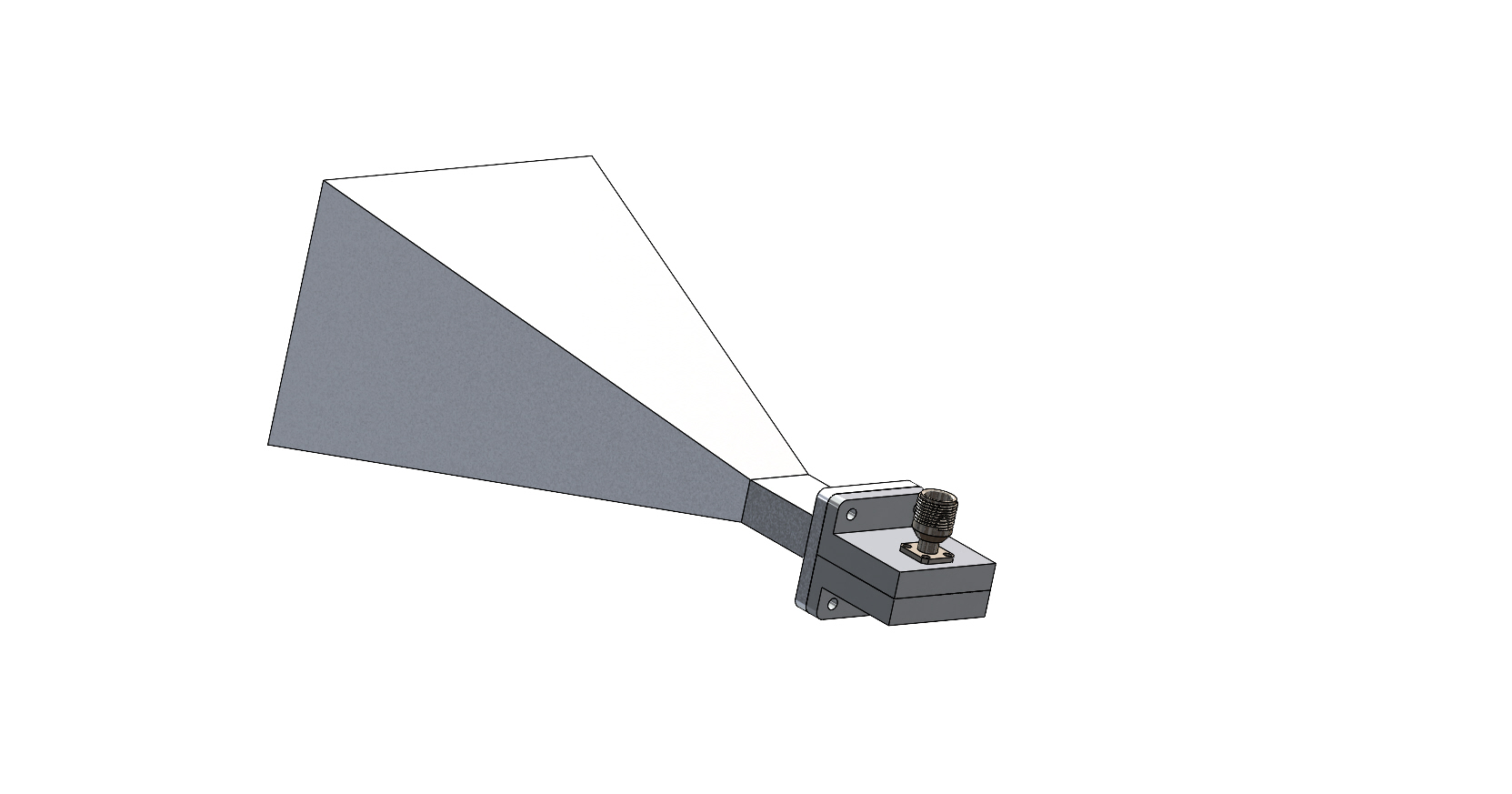

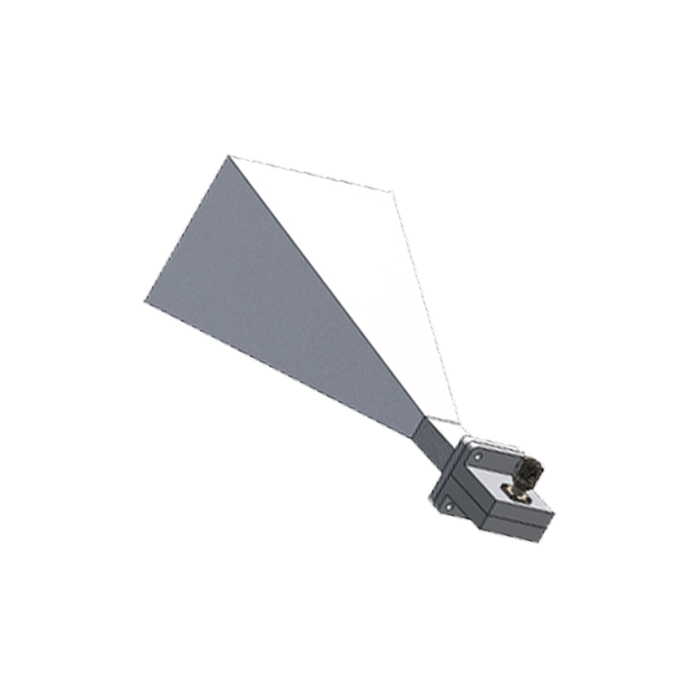

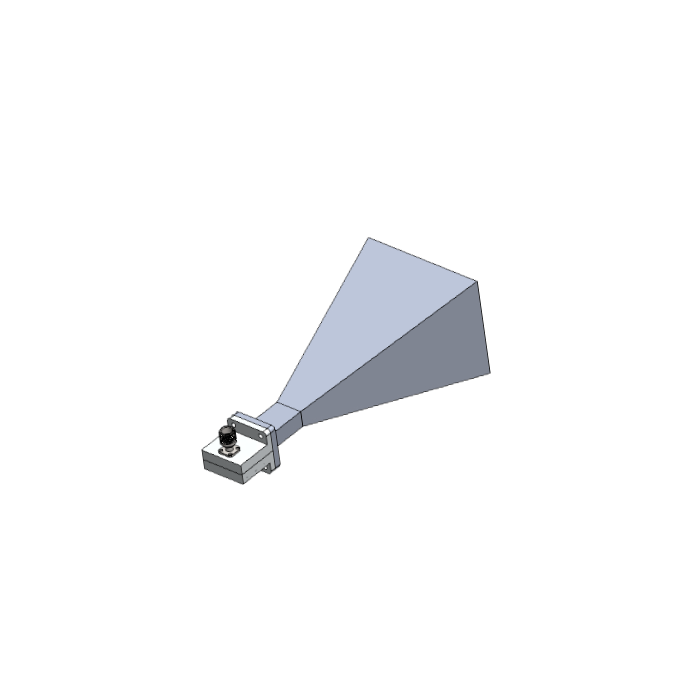

| Frequency Range Class | 10 GHz - 15 GHz (Continuous Ku-Band Spectral Optimization) |
| Waveguide Standard Size | EIA WR-75 (WG17 / R120) Geometry Layout |
| Nominal Gain Baseline | 20 dBi |
| V.S.W.R Profile (Max) | 1.25 : 1 (Precision Minimal Reflection Performance) |
| Maximum Power Handling | 250 Watts (CW Continuous Wave Limit) |
| -3dB Beamwidth (H-Plane / E-Plane) | 18° / 19° |
| Nominal System Impedance | 50 Ohm |

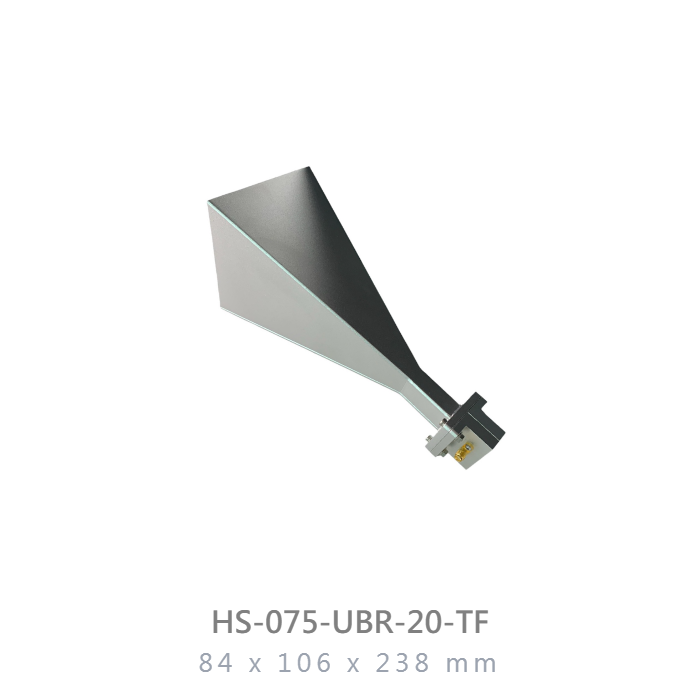

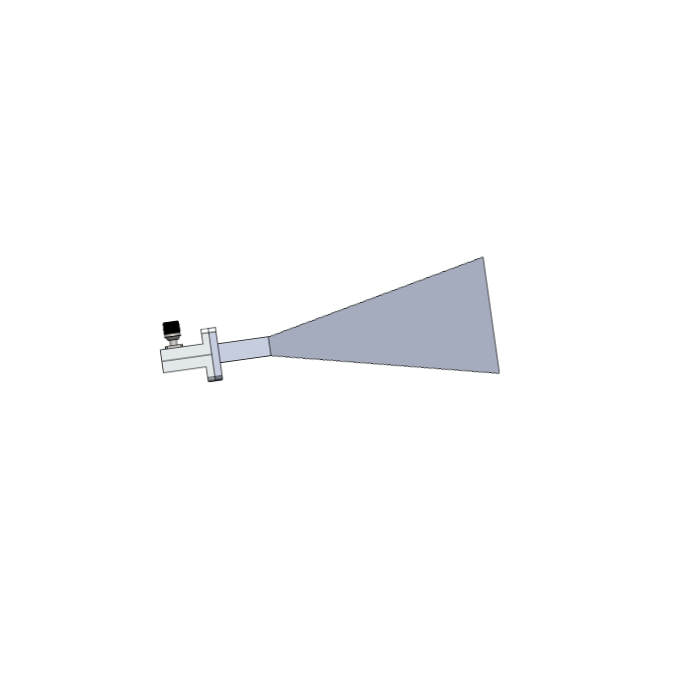

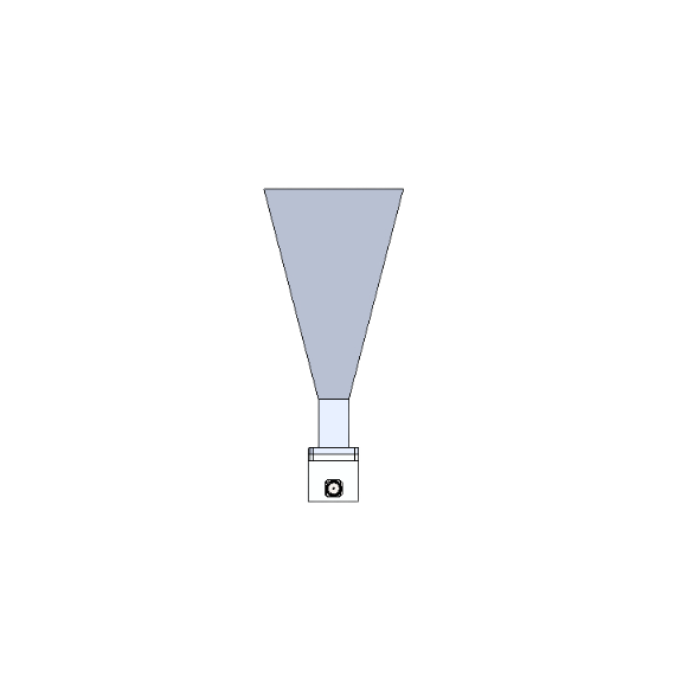

| Physical Dimensions (W x H x L) | 84 x 106 x 238 mm |
| Antenna Net Weight Profile | 180 g (Precision Lightweight Design) |
| Waveguide Flange Interface | UBR 120 (M3922/70-004/005 Standard Compatible) Layout Face |
| Connector Interface Type | SMA-Female (Precision Stainless Steel SUS Architecture) |
| Structural Body Material | High-Grade Structural Aluminum Alloy |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF Professional Grade) |

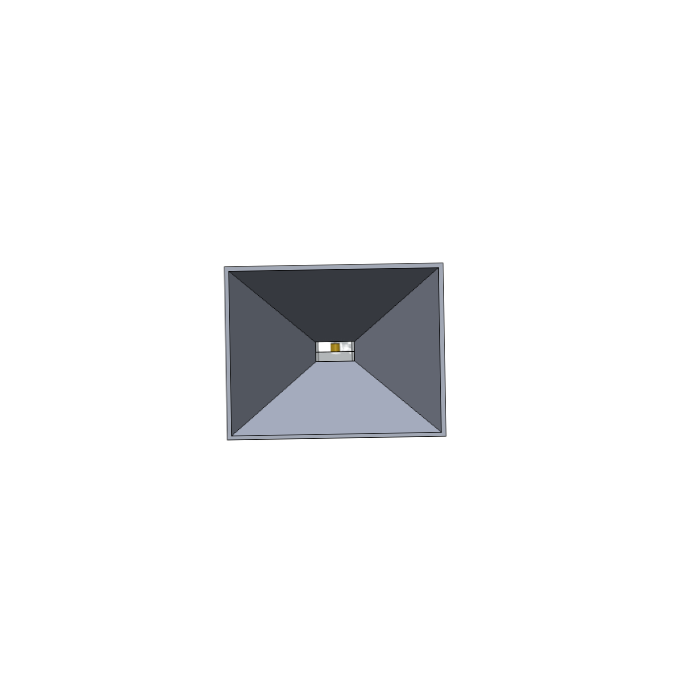

Optimized internal transition geometry ensures minimal signal reflection and ultra-low insertion loss across the entire Ku-Band spectrum for repeatable laboratory results.
Equipped with a high-durability stainless steel SMA connector to provide repeatable mechanical coupling and superior electrical stability in demanding field environments.
Engineered to support advanced Signal Defense infrastructure, providing a highly reliable reference radiator for interference mitigation and professional signal management.
Fully compliant with international waveguide standards for secure, low-leakage mechanical integration into existing professional microwave sub-systems and test fixtures.
Contact our technical engineering division today to request official quote sheets, individual certified calibration data, VSWR plots, or customized waveguide flange requirements.
