Description & Specification

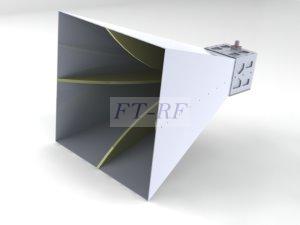

HQ-04M08G-NF Quad-Ridged Horn Antenna
Dual Polarization Broadband Antenna | 400MHz to 8GHz Coverage
The HQ-04M08G-NF is a state-of-the-art Quad-Ridged Broadband Horn Antenna designed for advanced RF measurement applications requiring simultaneous dual polarization. Covering an expansive frequency range from 400MHz to 8GHz, it allows for vertical/horizontal or ±45° polarization measurements in a single unit. Constructed from high-durability 6061 Aluminum alloy, it offers exceptional gain and beamwidth stability, making it an essential tool for complex EMI/EMC profiling and satellite communications research.
Technical Specifications
Electrical Specifications
[Image of quad-ridged broadband horn antenna dual-polarization radiation pattern]| Frequency Range | 400 MHz - 8 GHz |
| Antenna Type | Dual Polarization Quad-Ridged Horn |
| Gain | 3 dBi - 18 dBi |
| -3dB Beam-width | 17° - 65° |
| Polarization | Vertical & Horizontal / ± 45° |
| V.S.W.R | Low VSWR (Optimized) |
| Impedance | 50 Ohm |
| Connector | N-Female (Stainless Steel) |
Mechanical & Environmental Specifications
[Image of HQ-04M08G-NF quad-ridged horn antenna mechanical dimensions diagram]| Dimensions (L x W x H) | 588 x 368 x 368 mm |
| Net Weight (N.W.) | 5.5 kg |
| Material | 6061 Aluminum Alloy |
| Design & Manufacturing | Taiwan Design, Made in Taiwan |
| Styling | Dual Polarization Ridged Horn |
Key Features
Dual Polarization Support
Simultaneously handles multiple polarizations, reducing test time and setup complexity.
Simultaneously handles multiple polarizations, reducing test time and setup complexity.
Ultra-Broadband Response
Continuously covers from 400MHz to 8GHz, effectively spanning UHF to C-band.
Continuously covers from 400MHz to 8GHz, effectively spanning UHF to C-band.
DC Short Lightning Protection
Integrated lightning protection design safeguards high-value measurement hardware from electrical transients.
Integrated lightning protection design safeguards high-value measurement hardware from electrical transients.
Superior Directional Gain
Features a progressive gain up to 18 dBi, optimized for far-field and microwave measurements.
Features a progressive gain up to 18 dBi, optimized for far-field and microwave measurements.
High RF Integrity
Utilizes stainless steel connectors and 6061 Aluminum for reliable, long-term performance in laboratory settings.
Utilizes stainless steel connectors and 6061 Aluminum for reliable, long-term performance in laboratory settings.
Consolidated Database
Performance is backed by a consolidated performance database for accurate calibration and data analysis.
Performance is backed by a consolidated performance database for accurate calibration and data analysis.
Contact Us
For pricing, custom data sheets, or technical support regarding the HQ-04M08G-NF, please contact us:
Email: info-tw@ft168.com.twNew Products
