WC-112-UBR-NF Waveguide to Coaxial Adapter
X-Band Precision Transition | High-Power WR-112 Standard | 7.05 GHz – 10.0 GHz

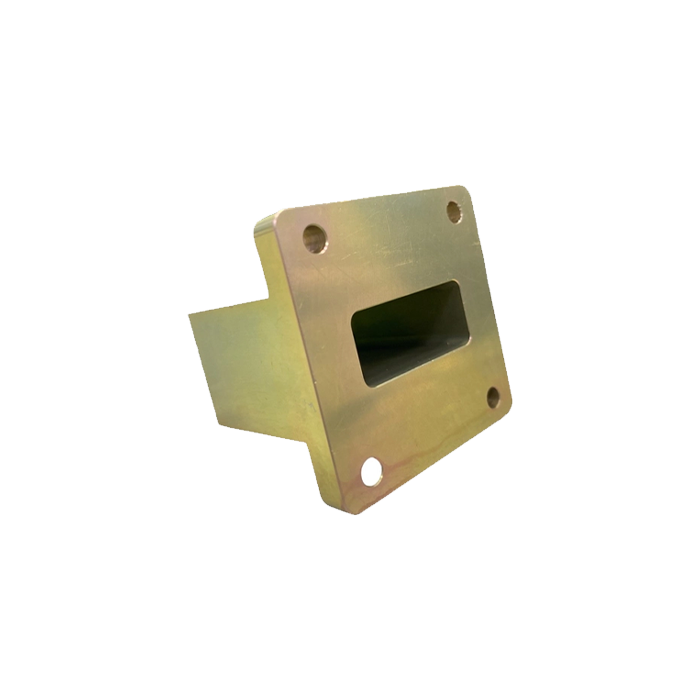

The WC-112-UBR-NF is a high-performance Waveguide to Coaxial Adapter professionally engineered for the WR-112 standard. Operating within the 7.05 GHz to 10.0 GHz spectrum (X-Band), this precision component ensures an ultra-low-loss transition for superior Signal Integrity. Featuring a high-durability Stainless Steel N-Female interface and a standardized UBR flange, it is the primary choice for integrating HS-112 series standard gain horn antennas into advanced radar, satellite communications, and laboratory measurement systems. Expertly manufactured in Taiwan, it is built to meet the most demanding industrial and scientific calibration benchmarks.
Electrical RF Performance
| Frequency Range | 7.05 to 10.0 GHz (X-Band) |
| V.S.W.R (Max) | 1.3 : 1 |
| Maximum Power Handling | 300 Watts (CW) |
| Impedance | 50 Ohm |
Mechanical & Interface Data
| Waveguide Standard | WR-112 / R84 / WG15 |
| Waveguide Flange | UBR Style (Universal) |
| Coaxial Connector Type | N-Female (Stainless Steel / SUS) |

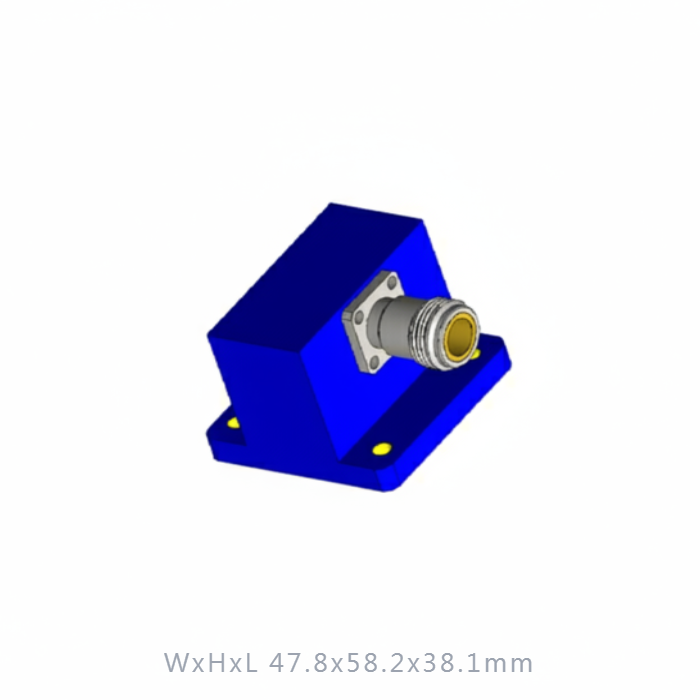

| Dimensions (W x H x L) | 47.8 x 58.2 x 38.1 mm |
| Net Weight | 110 g |
| Body Material | High-Grade Machined Aluminum |
| Manufacturing Origin | Taiwan Design / Made in Taiwan (FT-RF) |
X-Band Precision Transition
Optimized for the 7.05-10.0 GHz range, providing the robust low-loss transition geometry required for professional radar link stability and high-fidelity signal management.
Antenna System Core
Specifically designed to interface with WR112 standard gain horn antennas, ensuring consistent boresight accuracy and electromagnetic pattern stability across the entire band.
Taiwanese Engineering Excellence
Precision-manufactured in Taiwan with rigorous quality control, providing reliable phase stability and enduring laboratory-grade consistency.
Heavy-Duty SUS Interface
Equipped with a high-durability stainless steel N-Type connector, ensuring reliable electrical contact and superior structural wear resistance for repeated field deployments.
Inquire About Professional Waveguide Solutions
Contact our engineering team to obtain individual V.S.W.R plots, customized flange drilling, or alternative waveguide adapter designs.
