WR-28 Standard Gain Waveguide Horn Antenna 26.5GHz to 40GHz, 10dbi, K-Female connector, UBR Waveguide flange

WR-28 Standard Gain Waveguide Horn Antenna 26.5GHz to 40GHz, 10dbi, K-Female connector, UBR Waveguide flange

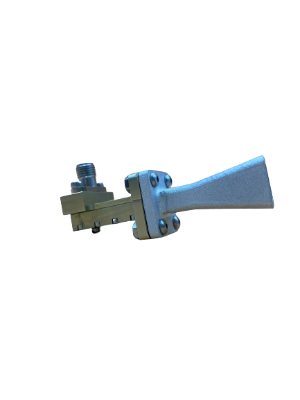

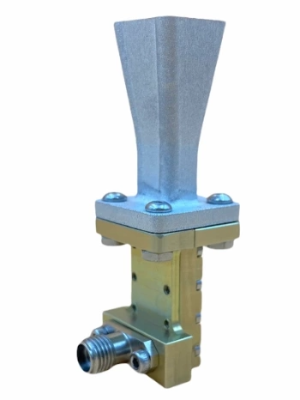

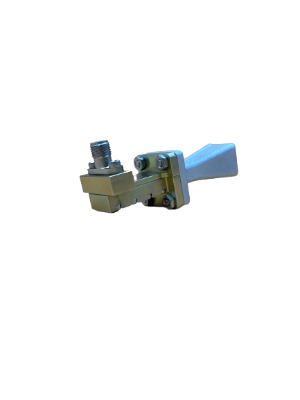

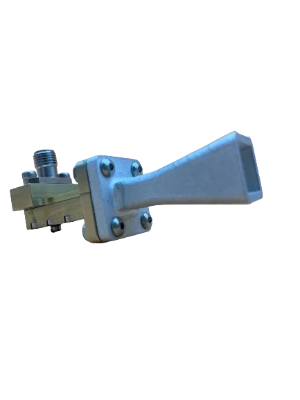

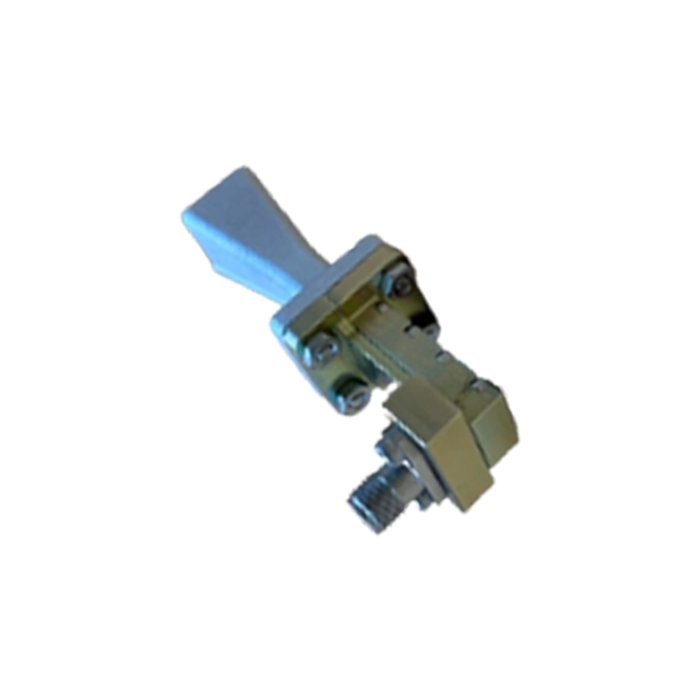

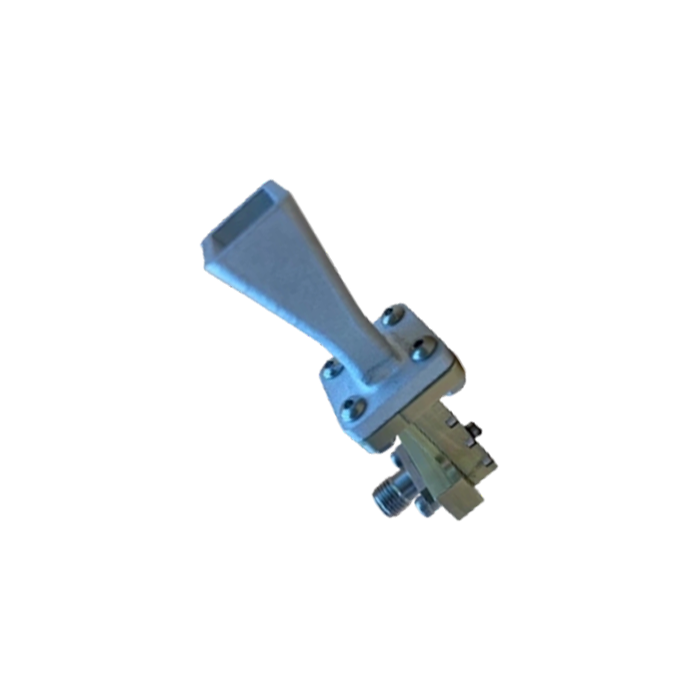

Model No: HS-028-UBR-10A-KF

Product Datasheet: Download

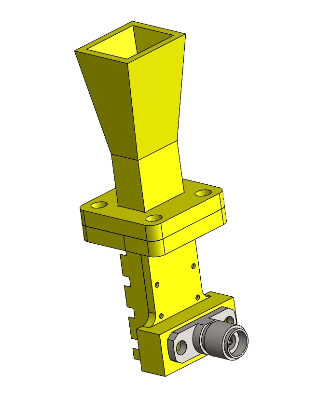

Mechanical Drawing: Download

  • Waveguide Type: WR-28
  • Frequency: 26.5GHz to 40GHz
  • Waveguide Coaxial Adapter Model: WC-28-UBR-A1-KF
  • Waveguide input Model: WI-28-UBR-10
  • Connector:K-Female
  • V.S.W.R: 1.25
  • Gain: 10 dBi
  • Wieght(g):20

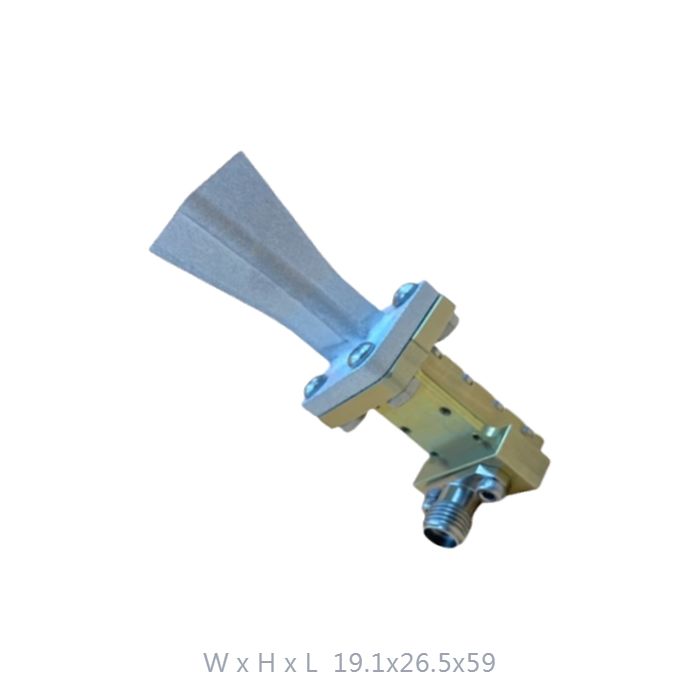

  • Size(mm): 19.1x26.5x59
Quantity:
INQUIRY

  • Description

  • Specifications

Applications:

  • EMI/EMC testing, direction finding, surveillance, and antenna gain measurements.
  • Calibration devices that measure the gain of other antennas

Features:

  • Uniform Gain
  • Aluminum metal alloy
  • Consolidated performance database
  • Stainless steel 2.92mm-Female

Custom design: (Please contact us: info-tw@ft168.com.tw)

  • Waterproof structure
  • PTZ Controlling function
  • Tripod or antenna mounting design
  • Customize Color

Electrical Specifications

Frequency Range

26.5GHz to 40GHz

V.S.W.R

<1.5:1

Antenna Type

Standard Gain Horn

Radiation

Directional

Gain

10dBi

Polarization

Vertical or horizontal

Maximum Input Power

250W

Vertical Beamwidth

30 deg

Horizontal Beamwidth

42 deg

Impedance

50 Ohm

Waveguide Coaxial Adapter

 WC-28-UBR-A1-KF

Connector

2.92mm-Female

2.4mm-Female (Custom)

Mechanical Specs

Antenna Weight (N.W)

0.015kg

Application

Indoor

Material

Aluminum

Wind Survival

Greater than 150MPH

Storage Temperature

-40 to +80

Operating Temperature

-40 to +60

Operating Humidity

10%~90% non-condensing

Storage Humidity

5%~90% non-condensing

Safety, Emission and other

RoHS
