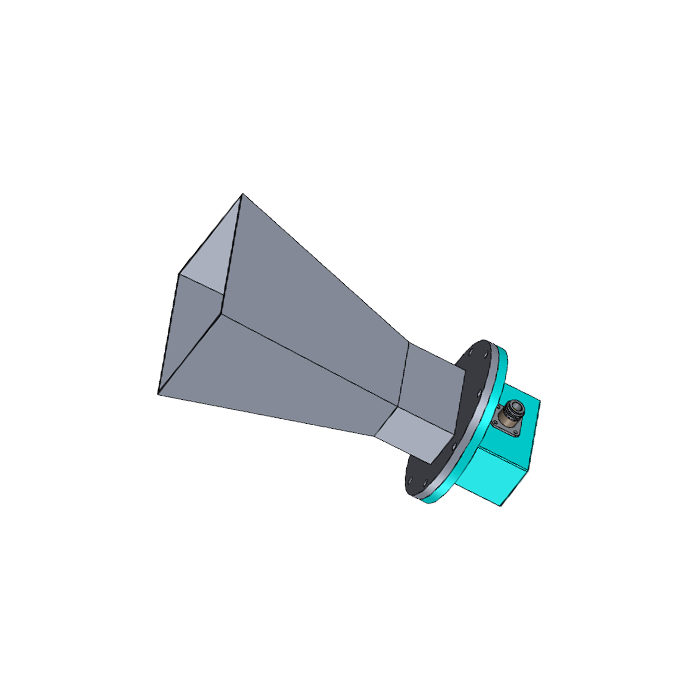

HS-284-UAR-10A-NF Wide-Beam Horn Antenna
S-Band Wide-Beam Horn Antenna | WR-284 Waveguide / UAR Flange | 2.6 - 3.95 GHz
The HS-284-UAR-10A-NF is a high-performance S-band broad-beam horn antenna professionally engineered by Fei Teng Wireless Technology Co., Ltd. (FT-RF). Operating seamlessly within the 2.6 GHz to 3.95 GHz frequency spectrum, it is expertly tailored to deliver a stable and continuous 10 dBi gain profile alongside a symmetrical 56-degree radiation pattern. Built with a highly precise aerospace-grade aluminum core structure in Taiwan, it features an integration of the standardized WR-284 waveguide layout with a UAR flange configuration. Serving as an exceptional solution for broad-area RF monitoring, electromagnetic compatibility (EMC) pre-compliance procedures, and field test deployments, this antenna contains strict structural tolerances and long-term durability metrics under moderate power operations up to 300W CW.
Electrical & Antenna Performance
| Frequency Range (GHz) | 2.6 - 3.95 GHz |
| Antenna Gain (Typical) | 10 dBi |
| V.S.W.R, Max | 1.25 : 1 |
| 3dB Beamwidth (H-Plane / E-Plane) | 56 Degrees / 56 Degrees (Symmetrical S-Band Profile) |
| Peak Power Handling, CW, (W) | 300 Watts |
| Polarization / Design Style | Linear / Symmetrical Wide Radiation Profile |
Mechanical & Interface Specifications
| Connector Interface | N-Female (Premium Stainless Steel Assembly) |
| Waveguide Size / Flange Style | EIA WR-284 / Standard UAR Configuration |

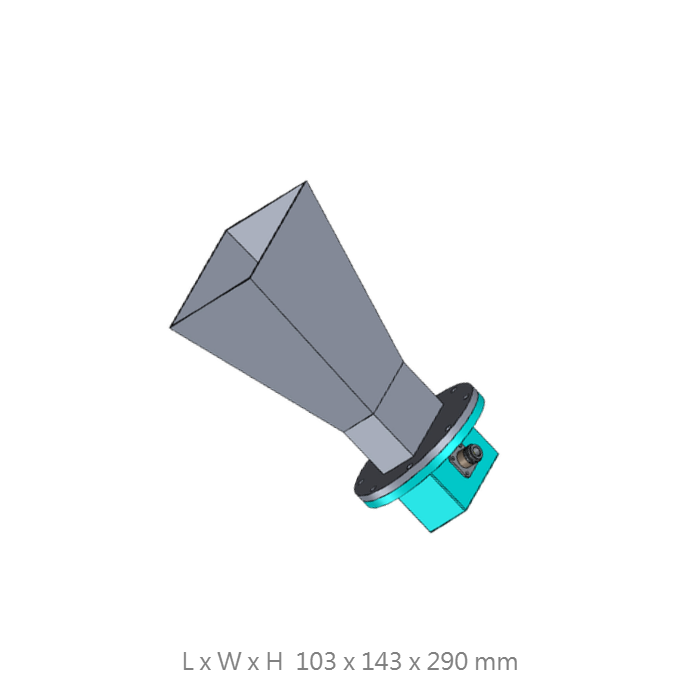

| Physical Outline Dimensions | 103 x 143 x 290 mm |
| Net Weight | 0.098 kg (98 g Ultra-Lightweight Configuration) |
| Body Material Synergy | Aerospace-Grade Aluminum Core Structure |
| Manufacturing Origin | Made in Taiwan (FT-RF) |
| Compliance / Custom Options | RoHS Compliant / Specialized ISO Calibration & Mounting Brackets Available |
56 Degree Symmetrical Coverage
Optimized radiation profile ensures consistent signal illumination over a wide field, perfect for broad spectrum monitoring and EMC pre-compliance testing.
Ultra-Lightweight Engineering
At only 98 grams, this antenna provides exceptional performance in a compact, aerospace-grade aluminum body, ideal for portable measurement setups.
Superior Material Synergy
Combines a premium aluminum body with a stainless steel connector for maximum mechanical cycle life and stable signal integrity in tactical environments.
Stable 10 dBi Antenna Gain
Delivers repeatable gain control across the entire 2.6 GHz to 3.95 GHz spectrum, ensuring precision in calibration laboratories and tracking matrices.
EMAIL CONTACT
For custom brackets, high-power connector variations, or specific calibration requirements, contact our engineering team.
