HS-284-UAR-15E-NF Sector Horn Antenna
S-Band Monitoring | 80° Wide Horizontal Sector | Professional RF Grade
The HS-284-UAR-15E-NF is a high-precision S-band standard gain horn antenna engineered for the 2.6 GHz to 3.95 GHz frequency range. Featuring a specialized 80° wide horizontal sector pattern and a narrow 12° E-plane beamwidth, it provides the focused radiation envelope necessary for precision Radar calibration, Signal Security monitoring, and high-precision EMC testing. Built with robust aluminum alloy and stainless steel connectors, it ensures long-term structural and electrical integrity.
Electrical & RF Performance
| Frequency Range | 2.6 - 3.95 GHz |
| Gain (Typical) | 15 dBi |
| Peak Power (CW) | 300 Watts |
| V.S.W.R (Max) | 1.25 : 1 |
| 3dB Beamwidth (H/E) | 80° / 12° |
| Connector Interface | N-Female (Stainless Steel) |
| Waveguide / Flange | WR-284 / UAR |
Mechanical & Physical

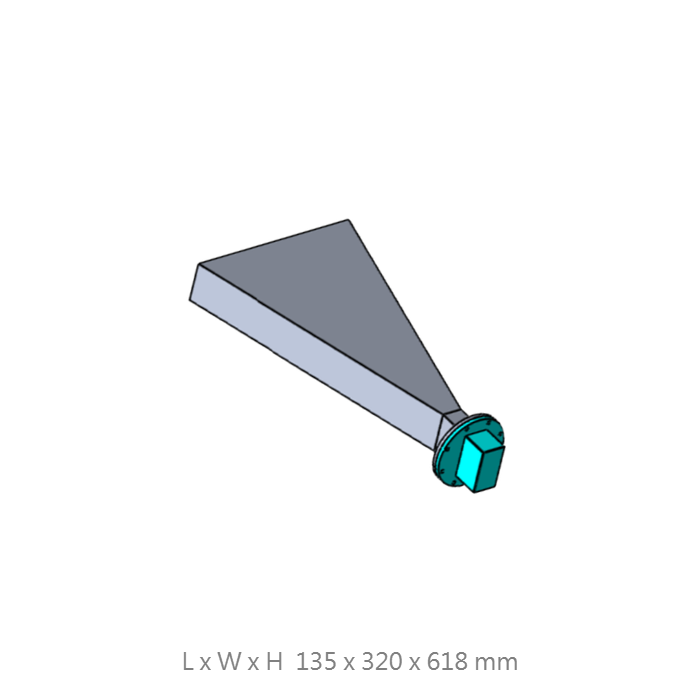

| Dimensions | 135 x 320 x 618 mm |
| Weight | 2200 g |
Sharp E-Plane Directivity
Features a narrow 12° E-plane beamwidth, providing the focused radiation envelope necessary for precision Radar calibration and directional monitoring.
Premium CNC Build
Engineered from premium grade aluminum with a stainless steel connector for high structural rigidity and long-term environmental durability.
Precision Signal Integrity
Maintains exceptionally low VSWR across the full band, ensuring accurate data collection in sensitive measurement and Signal Security environments.
