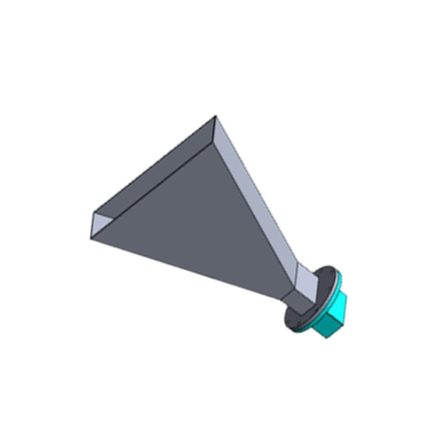

2.6 GHz to 3.95 GHz WR-284 Sectoral Gain Horn Antenna
Model: HS-284-UAR-10E-NF | 10 dBi Gain | 800W Capacity
The HS-284-UAR-10E-NF is a high-performance E-Plane Sectoral Horn Antenna professionally engineered for the 2.6 GHz to 3.95 GHz frequency range. Featuring an ultra-wide 112° horizontal radiation pattern, it provides extensive area coverage making it ideal for tactical monitoring and laboratory RF infrastructure[cite: 124]. Precision-machined from high-grade aluminum, this antenna handles up to 800 Watts of peak power while maintaining superior Signal Integrity for mission-critical measurements[cite: 123, 130].
Technical Specifications
Electrical Performance
| Frequency Range | 2.6 - 3.95 GHz |
| Waveguide Standard | WR-284 / WG10 / R32 |
| Nominal Gain | 10 dBi |
| V.S.W.R (Max) | 1.3 : 1 |
| 3dB Beamwidth (H-Plane) | 112° |
| 3dB Beamwidth (E-Plane) | 28° |
| Maximum Power Handling | 800 Watts (CW) |
| Impedance | 50 Ohm |
Mechanical & Interface Specifications

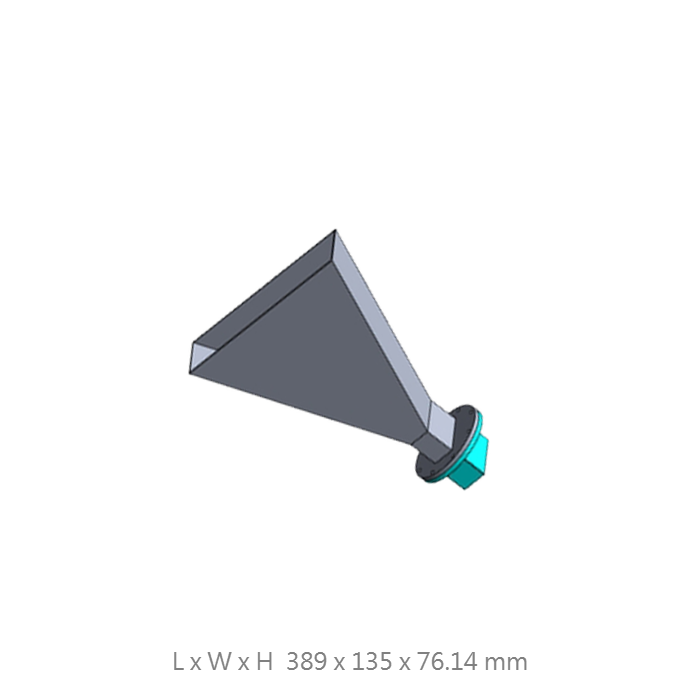

| Dimensions (L x W x H) | 389 x 135 x 76.14 mm |
| Net Weight | 1250 g |
| Waveguide Flange | UAR Compatible |
| Body Material | Aerospace-Grade Aluminum |
| Connector Interface | N-Female (Stainless Steel) |
| Design & Origin | Taiwan Design / Made in Taiwan (FT-RF) |
Industrial Design Highlights
112° Ultra-Wide Sector
Specialized sectoral radiation pattern optimized for broad horizontal area coverage while maintaining precise elevation focus (28°)[cite: 124, 125].
800W Extreme Capacity
Robust aluminum architecture and precision-machined waveguides handle high-power continuous wave (CW) operations with superior thermal stability[cite: 123, 130].
Precision CNC Integrity
CNC-machined from high-grade aluminum to ensure mechanical durability and a stable 10 dBi gain across the entire band[cite: 122, 130].
Consolidated Performance Database
Supported by comprehensive calibration data for accurate system integration and traceable measurement results.
Request a Professional Quote
Customized mounting solutions or specific calibration reports are available upon request to our engineering team.
<
