HS-284-UAR-15A-NF Standard Horn Antenna
S-Band Monitoring | 32° Symmetrical Beam | Professional RF Reference
The HS-284-UAR-15A-NF is a high-precision S-band standard gain horn antenna engineered for the 2.6 GHz to 3.95 GHz frequency range. Featuring a symmetrical 32° radiation pattern in both H and E planes, it provides a stable 15 dBi gain reference essential for laboratory testing, industrial signal monitoring, and EMC/EMI verification. Built with robust aluminum alloy and stainless steel connectors, it ensures high structural rigidity and electrical stability.
Electrical & RF Performance
| Frequency Range | 2.6 - 3.95 GHz |
| Gain (Typical) | 15 dBi |
| Peak Power (CW) | 300 Watts |
| V.S.W.R (Max) | 1.25 : 1 |
| 3dB Beamwidth (H/E) | 32° / 32° |
| Connector Interface | N-Female (Stainless Steel) |
| Waveguide / Flange | WR-284 / UAR |
Mechanical & Physical

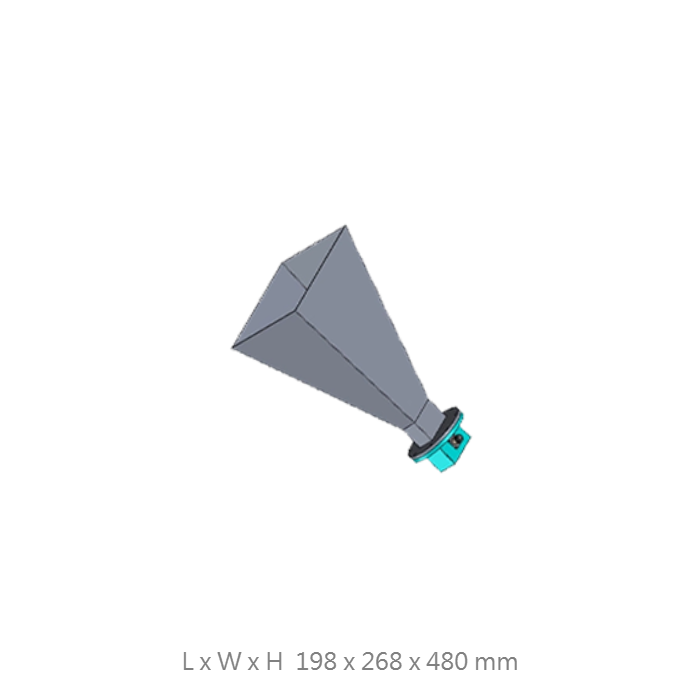

| Dimensions | 198 x 268 x 480 mm |
| Weight | 1800 g |
Balanced Radiation Pattern
Precise 32° symmetrical beamwidth in both H and E planes ensures uniform signal illumination for accurate gain measurement and Radar cross-section testing.
Industrial-Grade Reliability
CNC-machined from premium grade aluminum paired with a rugged stainless steel connector for exceptional structural rigidity and long-term electrical integrity.
Stable Signal Reception
Maintains a consistently low VSWR across the entire S-band, making it the definitive reference standard for microwave signal monitoring and EMC verification.
Contact FT-RF Engineering Division
Contact our engineering team for custom mounting fixtures, calibration certificates, or technical support.
