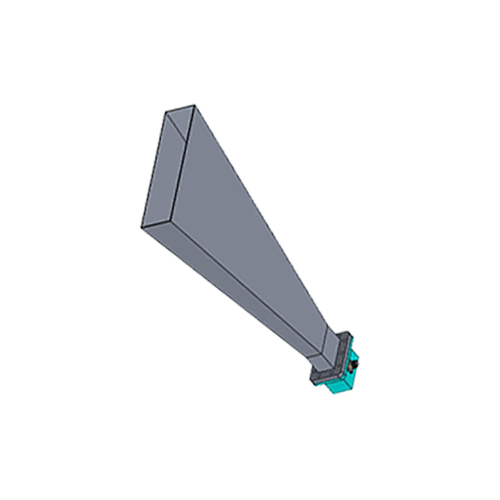

WR284( 2.6GHz to 3.95GHz ) 10dbi H-Plane Sector Standard Waveguide Gain Horn Antenna, Flange: UDR

WR284( 2.6GHz to 3.95GHz ) 10dbi H-Plane Sector Standard Waveguide Gain Horn Antenna, Flange: UDR

Model No: HS-284-UDR-10H-NF

Made in Taiwan
Frequency Range: 2.6 - 3.95 GHz
Gain (Typical): 10 dBi
Peak Power (CW): 360 Watts
Stock:

📐 VIEW DRAWING
=
Quantity:
INQUIRY

  • Description & Specification

High-Frequency S-Band Antennas

HS-284-UDR-10H-NF Wide-Elevation Horn Antenna

Professional WR-284 standard gain horn antenna (2.6 - 3.95 GHz) featuring a specialized 92° E-plane wide-angle profile. Built for altitude monitoring and high-power laboratory RF deployments.

Technical Specifications
Frequency Range 2.6 - 3.95 GHz
Gain (Typical) 10 dBi
Peak Power (CW) 360 Watts
V.S.W.R (Max) 1.3 : 1
3dB Beamwidth (H/E) 28° / 92°
Connector Interface N-Female

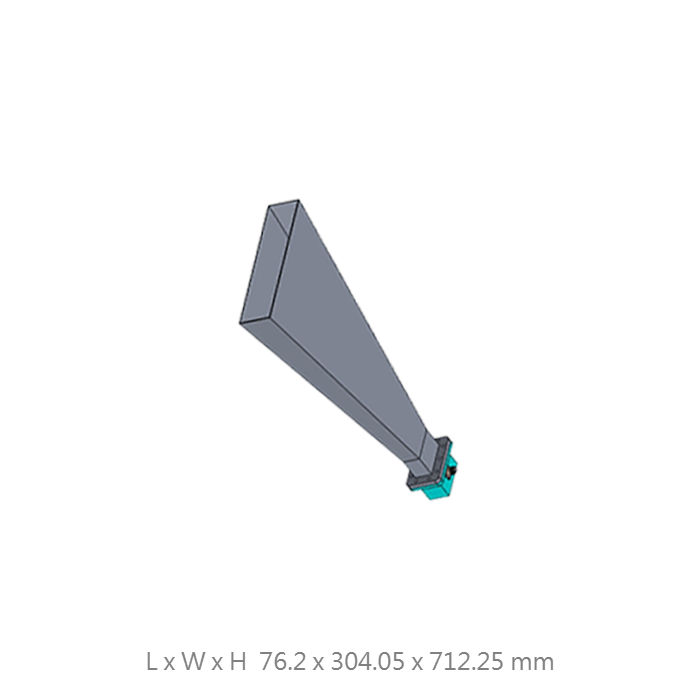

Dimensions / Weight 76.2 x 304.05 x 712.25 mm / 2200g
Design & Performance Features

92° Vertical Sector Coverage

Optimized E-plane radiation pattern provides broad elevation monitoring, reducing the need for multiple antenna arrays in tactical environments.

Aluminum Structural Integrity

CNC-machined from high-grade aluminum alloy to ensure mechanical stability and a stable 10 dBi gain profile across the S-band.

High CW Capacity

Precise waveguide construction handles 360W continuous wave transmission with superior thermal management for long-term deployments.

Custom mounting fixtures or specific calibration certificates are available upon request.
