700 MHz to 6.5 GHz Open Boundary Quad-Ridged Horn Antenna
Model: HR-07M06G06-NF | Dual Polarization | 300W High CW Power

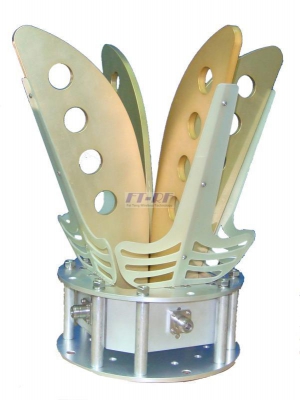

The HR-07M06G06-NF is a high-performance Open Boundary Quad-Ridged Horn Antenna professionally engineered for simultaneous dual-polarized antenna measurements. Crafted from premium 6061 Aluminum alloy with dual stainless steel N-female connectors, it covers the vital spectrum from 700 MHz to 6.5 GHz. Designed and manufactured in Taiwan, this antenna provides exceptional beam stability and uniform gain, making it an essential instrument for 5G Sub-6GHz testing, EMI/EMC profiling, and high-fidelity directional signal monitoring in laboratory environments.
Technical Specifications
Electrical & RF Performance
| Frequency Range | 700 MHz to 6.5 GHz |
| Antenna Type | Open Boundary Quad-Ridged Horn |
| Nominal Gain | 4 dBi to 14 dBi |
| Polarization | Vertical & Horizontal / ±45° |
| V.S.W.R | Low VSWR (Optimized Band Performance) |
| -3dB Beamwidth (Horizontal) | 64° |
| -3dB Beamwidth (Vertical) | 63° |
| Maximum CW Power | 300 Watts |
| Impedance | 50 Ohm |
Mechanical & Construction

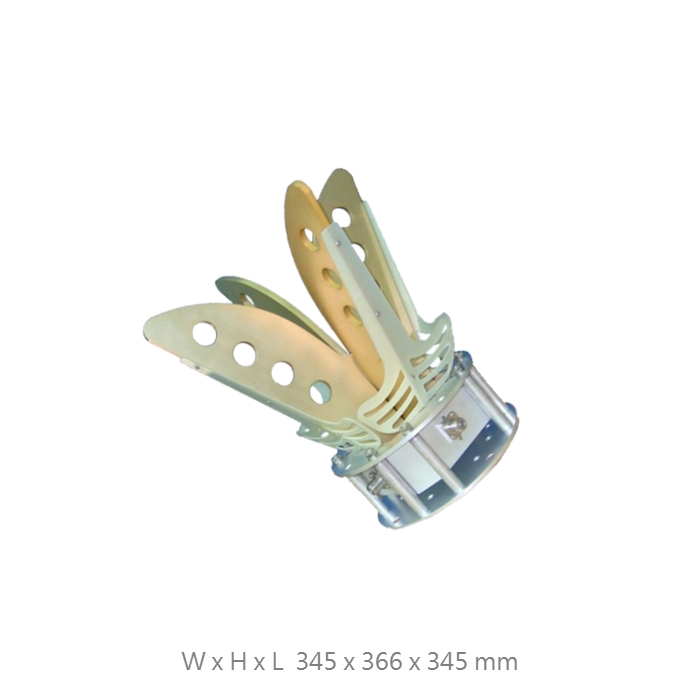

| Dimensions (W x H x L) | 345 x 366 x 345 mm |
| Net Weight | 4.9 kg |
| Body Material | Aerospace-Grade 6061 Aluminum Alloy |
| Connector Interface | Stainless Steel N-Female x 2 |
| Manufacturing Origin | Taiwan Design / Made in Taiwan (FT-RF) |
| Application | Indoor / Laboratory Measurement |
Key Tactical Features
Open Boundary Architecture
Specialized open boundary design reduces structural weight and aerodynamic drag while maintaining high-fidelity broadband radiation patterns for precise ultra-wideband sweeps.
Dual Polarization Capability
Integrated quad-ridged feed allows for the simultaneous capture of orthogonal polarizations, critical for advanced 5G analysis and complex radar profiling.
300W High Power Stability
Robustly machined to reliably handle up to 300W of continuous wave power, providing a stable radiator for high-intensity laboratory and Signal Defense testing.
DC Short Hardware Safety
Features a built-in DC shorted design providing integrated hardware protection to safeguard connected measurement instrumentation and receivers from transient surges.
Request a Professional Quote
Contact our engineering team to obtain individual calibration data, isolation plots, or technical support for 5G measurement sub-systems.
