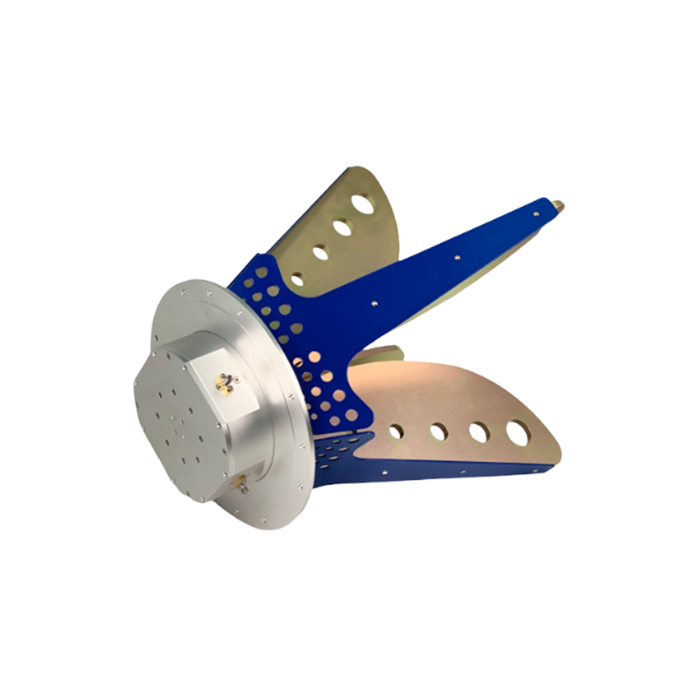

HR-07M12G01-SF Quad-Ridged Horn Antenna
700 MHz - 12 GHz | Dual Polarization | Precision Measurement Grade
The HR-07M12G01-SF is a high-performance Open Boundary Quad-Ridged Horn Antenna professionally engineered for exceptional wideband capabilities across the 700 MHz to 12 GHz spectrum. Optimized for precision measurement, its dual-polarized quad-ridged architecture ensures uniform gain and exceptionally low VSWR across the entire operating range. This antenna is the premier instrument for EMI/EMC testing, Signal Defense research, and high-fidelity measurement labs requiring robust input power handling up to 300 Watts (CW).
Electrical & RF Performance
| Frequency Range | 700 MHz - 12 GHz |
| Antenna Type | Open Boundary Quad-Ridged Horn |
| Nominal Gain | 3 dBi - 14 dBi |
| Max Power Handling | 300 Watts (CW) |
| Polarization | Dual (Vertical/Horizontal/±45°) |
Mechanical & Physical

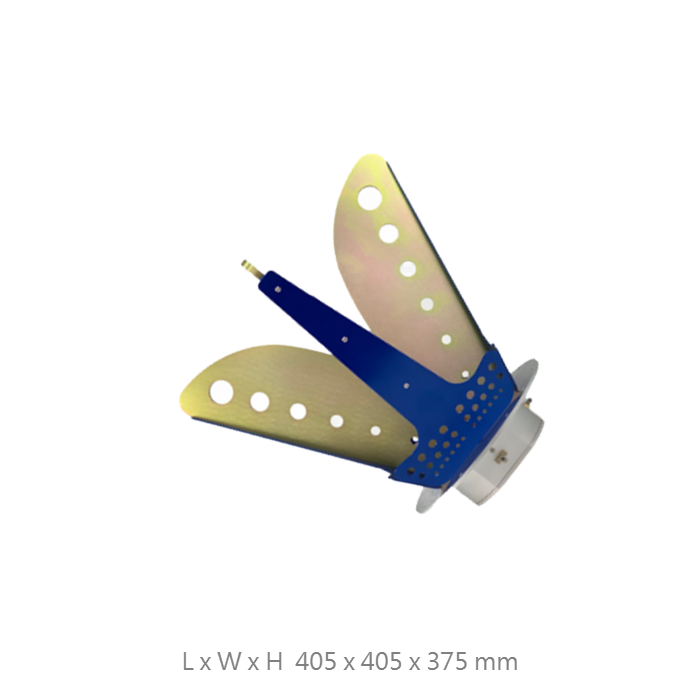

| Dimensions | 405 x 405 x 375 mm |
| Connector Type | SMA-Female (Stainless Steel) |
| Body Material | Aerospace-Grade Machined Aluminum |

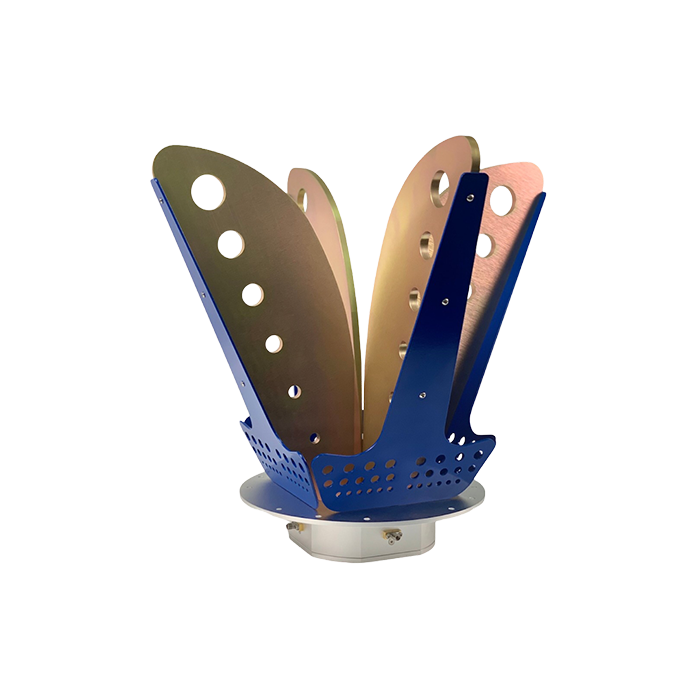

Open Boundary Architecture
Features an advanced open boundary quad-ridged design to minimize structural weight while maintaining maximum boresight accuracy and pattern stability during high-frequency testing.
Superior Signal Integrity
Engineered for high-integrity electromagnetic acquisition, delivering exceptionally low VSWR and stable radiation envelopes required for rigorous laboratory calibration.
Professional EMC Deployment
An essential instrument for EMI/EMC testing infrastructures, supporting multi-band signal management and mission-critical protection operations across a multi-octave range.
Dual-Polarized Versatility
Capable of supporting Vertical, Horizontal, or ±45° polarization states, providing the tactical flexibility needed for complex radar link analysis and advanced research applications.
Contact FT-RF Engineering Division
Contact our engineering team to obtain specialized gain calibration data, custom PTZ integration support, or technical files for broadband surveillance systems.
