Description & Specification

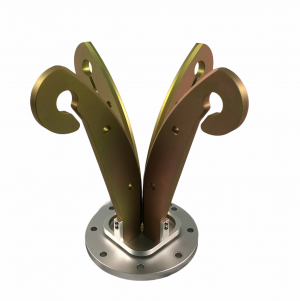

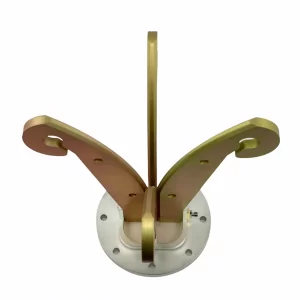

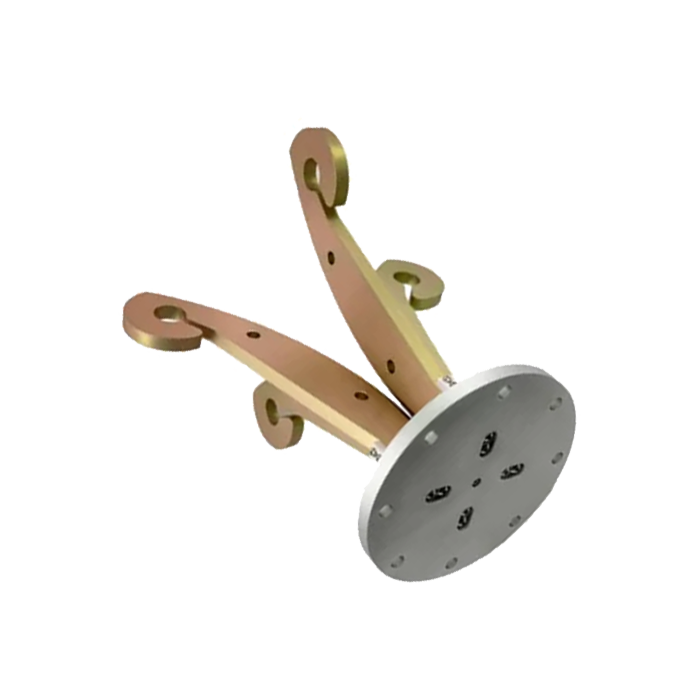

700MHz to 10GHz Open Boundary Quad-Ridged Horn Antenna
Dual Polarization Broadband Antenna | SMA-Female Connector
The 700MHz to 10GHz Open Boundary Quad-Ridged Horn Antenna is a high-performance, lightweight solution for complex broadband measurements. Designed with an open boundary quad-ridged architecture, it supports simultaneous dual polarization (Vertical/Horizontal or ±45°) with uniform gain. Manufactured in Taiwan using 6061 Aluminum and high-conductivity copper, this antenna is perfect for Antenna Measurement, EMC testing, and Ultra-wideband Radar Detection.
Technical Specifications
Electrical Specifications
[Image of open boundary quad-ridged horn antenna radiation pattern characteristics]| Frequency Range | 700 MHz - 10 GHz |
| Antenna Type | Dual Polarization Quad-Ridged Horn |
| V.S.W.R (Avg) | 2.5 : 1 |
| Gain | 0 dBi - 12 dBi |
| Antenna Factor | 23 - 43 dB/m |
| Polarization | Vertical & Horizontal / ± 45° |
| Maximum Power | 50 Watts |
| Vertical Beam-width | 48° |
| Horizontal Beam-width | 56° |
| Impedance | 50 Ohm |
| Connector | SMA-Female |
Mechanical & Environmental Specifications

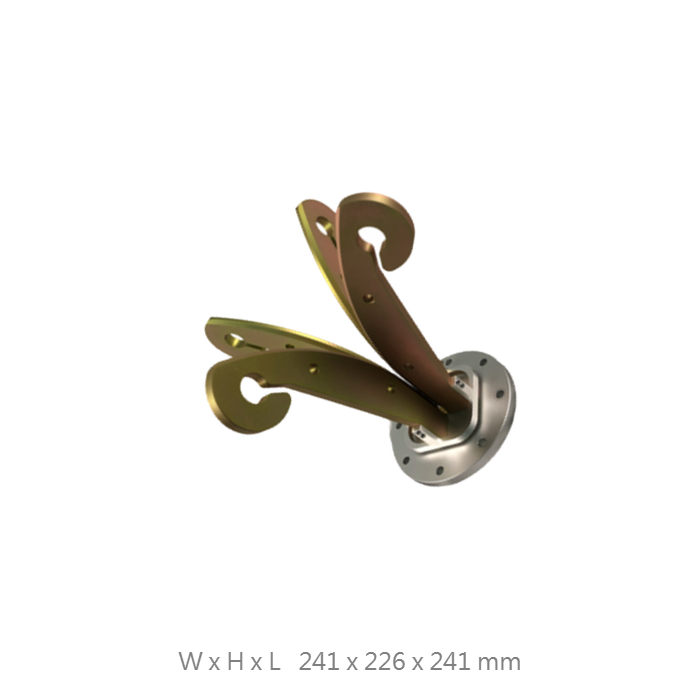

[Image of open boundary quad-ridged horn antenna mechanical dimensions 700MHz-10GHz]| Dimensions (WxHxL) | 241 x 226 x 241 mm |
| Antenna Weight (N.W) | 1.3 kg |
| Material | Aluminum & Copper |
| Mounting Style | Antenna Mounting 8mm Screws |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -20°C to +80°C |
| Compliance | RoHS, WEEE, CE, FCC |
Key Features
Open Boundary Design
Reduces weight and aerodynamic drag while maintaining high-fidelity broadband radiation patterns.
Reduces weight and aerodynamic drag while maintaining high-fidelity broadband radiation patterns.
Dual Polarization Capability
Simultaneously captures orthogonal polarizations, essential for advanced radar and EMC profiling.
Simultaneously captures orthogonal polarizations, essential for advanced radar and EMC profiling.
DC Short Lightning Protection
Built-in design safeguards connected measurement hardware from transient electrical surges.
Built-in design safeguards connected measurement hardware from transient electrical surges.
Lightweight Aluminum Build
Weighing only 1.3kg, it is ideal for portable test setups and height-restricted laboratory environments.
Weighing only 1.3kg, it is ideal for portable test setups and height-restricted laboratory environments.
Stable Beam Consistency
Uniform gain and beam-width ensure repeatable directional data across the 700MHz-10GHz spectrum.
Uniform gain and beam-width ensure repeatable directional data across the 700MHz-10GHz spectrum.
Consolidated Database
Performance is backed by a consolidated database, ensuring reliable calibration for long-term use.
Performance is backed by a consolidated database, ensuring reliable calibration for long-term use.
Contact Us
For pricing, data sheets, or technical support regarding this Open Boundary Horn, please contact us:
