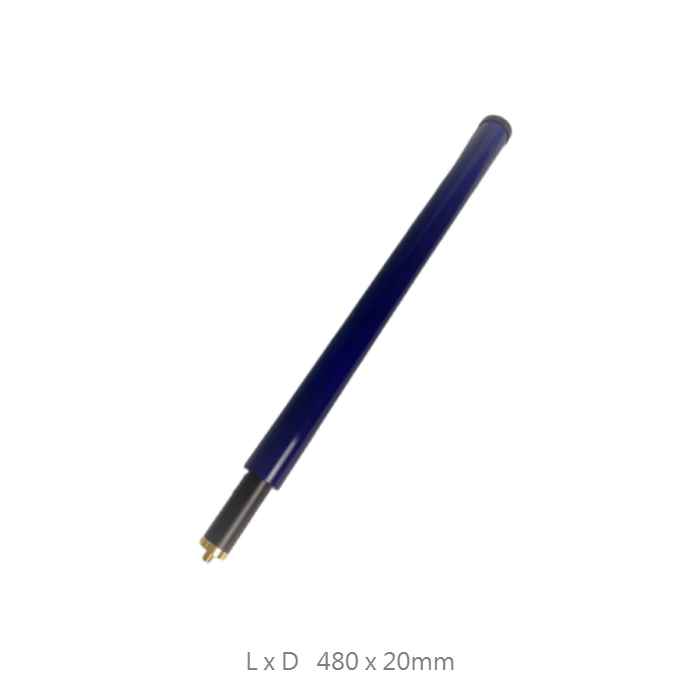

UHF/LTE Precision Reference Antenna
Model: SL-800-SF-V2 | 700 MHz - 900 MHz | CTIA Symmetry Compliant
The SL-800-SF-V2 is a high-performance Collinear Sleeve Dipole radiator specifically engineered for anechoic chamber calibration and OTA testing. Featuring an ultra-precise radiation pattern with roundness differences of less than 0.1dB (up to 870MHz), it serves as the definitive reference for Signal Defense gain measurements. The 1/4 wavelength design and specialized sleeve isolate the feed point from cable contacts, ensuring the Signal Integrity required for mission-critical CTIA ripple test measurements.
Electrical Specifications
| Frequency Range | 700 MHz to 900 MHz |
| Nominal Gain | 2.15 dBi ± 1 dBi |
| V.S.W.R (780MHz - 840MHz) | 1.5 : 1 (Max 3.0 : 1 over full band) |
| Pattern Symmetry (700 - 870MHz) | < 0.1 dB (CTIA +/- 0.1 dB Compliance) |
| Maximum Power Handling | 150 Watts |
| Radiation / Polarization | Omni-Directional / Vertical |
| Beam-width (Horizontal / Vertical) | 360° / 68° |
| Impedance | 50 Ohm |
Mechanical & Environmental Parameters
| Dimensions (Length x Diameter) | 408 mm x 20 mm |
| Net Weight (N.W.) | 207 g |
| Internal Radiator Material | Precision Copper |
| Radome / Mount Material | Fiberglass / PVC & Acrylic |
| Connector Interface | N-Female (Standard) / SMA-Female (Available) |
| Operating Temperature | -20°C to +60°C |
| Compliance Ratings | CE, FCC, RoHS, CTIA |
Key Tactical & Lab Features
CTIA Ripple Test Precision
Engineered to meet strict +/- 0.1 dB symmetry standards, providing the high-level accuracy necessary for OTA chamber reflectivity evaluation.
Interference-Free Design
The 1/4 wavelength sleeve dipole architecture isolates the antenna from the feed cable, preventing pattern distortion and feedpoint interference.
Rugged Structural Integrity
Encased in a high-grade fiberglass radome, the antenna is suitable for both high-precision indoor lab environments and outdoor tactical deployments.
Optimized Range Calibration
Serves as a reliable low-gain reference for calibrating high-frequency monitoring sub-systems and electronic protection equipment.
Get a Quote / Custom Reference Solutions
Contact our engineering team for full calibration data sheets, customized SMA-Female connectors, or specialized mounting adapters.
