Description & Specification

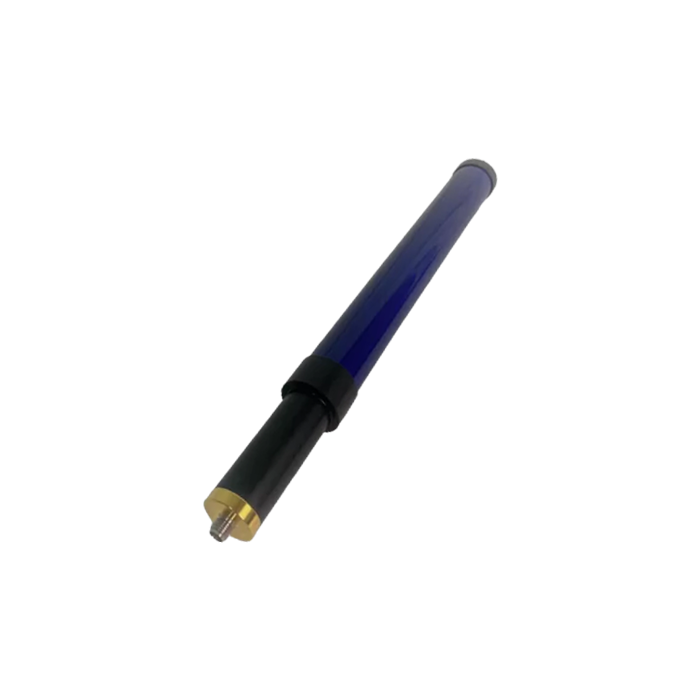

4 GHz Precision Reference Antenna
Model: SL-4000-SF | 3800 MHz - 4200 MHz | CTIA Symmetry Compliant
Technical Specifications
| Frequency Range | 3800 MHz to 4200 MHz |
| Nominal Gain | 2.15 dBi ± 1 dBi |
| Pattern Symmetry | ± 0.1 dB (CTIA Compliance) |

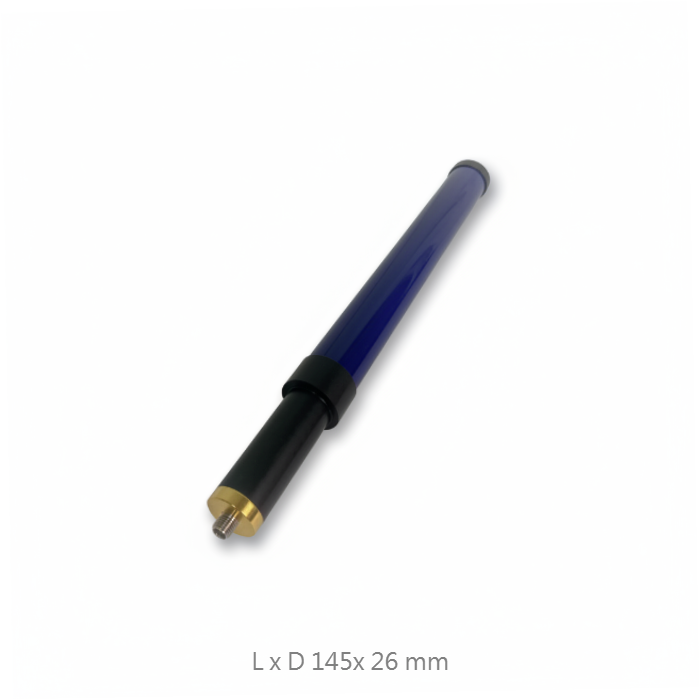

| Dimensions (LxWxH) | 145 x 26 x 26 mm |
| Net Weight (N.W.) | 100 g |
| Standard Connector | SMA-Female (N-Female Available) |
Key Tactical & Engineering Features
CTIA Symmetry Precision
Engineered to meet rigorous +/- 0.1 dB symmetry requirements, providing high-level accuracy for OTA chamber reflectivity evaluation and professional ripple tests.
Feed Point Contact Isolation
The specialized sleeve design prevents the feed cable from interfering with the antenna's effectiveness, ensuring a pure toroidal radiation pattern.
Reference Grade Dominance
Serves as a reliable gain reference and low-gain efficiency standard for calibrating high-frequency tactical monitoring systems and electronic protection equipment.
Ultra-Lightweight Design
Weighing only 100g, its professional aesthetic and compact profile allow for easy integration into precision 3D positioning towers and fiber-optic masts.
