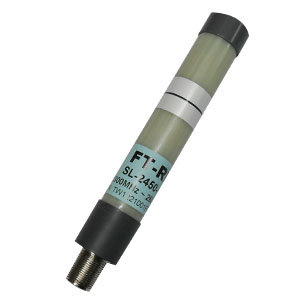

2.4 GHz Precision Reference Antenna
Model: SL-2450-SF | 2300 MHz - 2600 MHz | CTIA Symmetry Compliant
The SL-2450-SF is a high-performance Collinear Sleeve Dipole radiator specifically engineered for anechoic chamber calibration and OTA testing. Featuring an ultra-precise radiation pattern with roundness differences of less than 0.1dB (up to 2500MHz), it serves as the definitive reference for Signal Defense gain measurements. The 1/4 wavelength design and specialized sleeve isolate the feed point from cable contacts, ensuring the Signal Integrity required for mission-critical CTIA ripple test measurements and professional antenna efficiency characterization.
Technical Specifications
| Frequency Range | 2300 MHz to 2600 MHz |
| Nominal Gain | 2.15 dBi ± 1 dBi |
| V.S.W.R (2400MHz - 2500MHz) | 1.5 : 1 (Max 3.0 : 1 over full band) |
| Pattern Symmetry (2300 - 2500MHz) | < 0.1 dB (CTIA Compliance) |
| Maximum Power Handling | 150 Watts |
| Radiation / Polarization | Omni-Directional / Vertical |
| Beam-width (Horizontal / Vertical) | 360° / 68° |
| Impedance | 50 Ohm |
Material & Mechanical Parameters

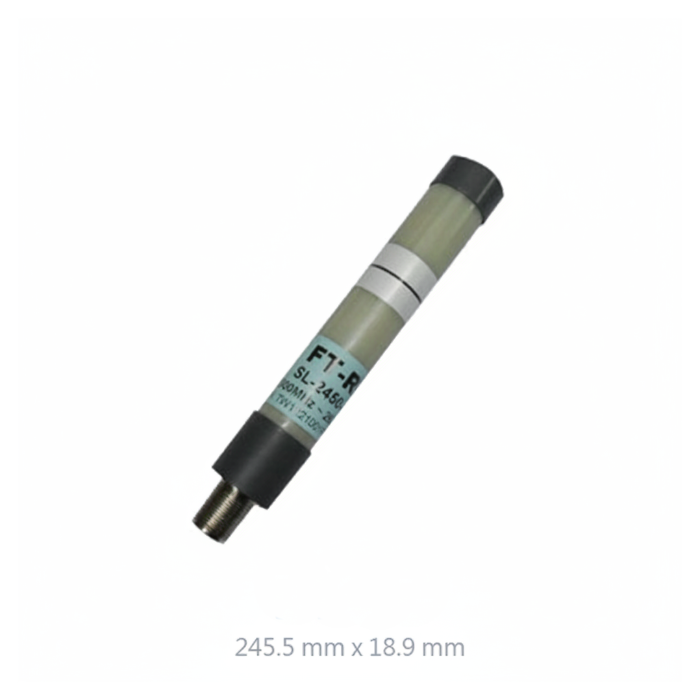

| Dimensions (Length x Diameter) | 245.5 mm x 18.9 mm |
| Net Weight (N.W.) | 160 g |
| Internal Radiator Material | Precision Copper |
| Radome Material | Fiberglass |
| Mount Style | Round 19mm / Hollow 13mm (Acrylic Mount) |
| Connector Interface | SMA-Female (N-Female Available) |
| Operating Temperature | -20°C to +60°C |
| Compliance Ratings | CE, FCC, RoHS, CTIA |
Key Tactical & Engineering Features
CTIA Ripple Test Precision
Engineered to meet strict +/- 0.1 dB symmetry standards, providing the high-level accuracy necessary for OTA chamber reflectivity evaluation.
Interference-Free Architecture
The 1/4 wavelength sleeve dipole design isolates the antenna from the feed cable, preventing pattern distortion and feedpoint interference.
Reference Grade Dominance
Serves as a reliable gain reference and low-gain efficiency standard for calibrating high-frequency monitoring sub-systems.
Rugged Structural Integrity
Encased in a premium fiberglass radome with a lightweight 160g build, suitable for high-precision indoor lab and controlled outdoor environments.
Get a Quote / Custom Reference Solutions
Contact our engineering team for full calibration data sheets, VSWR plots, or specialized mounting hardware requirements.
