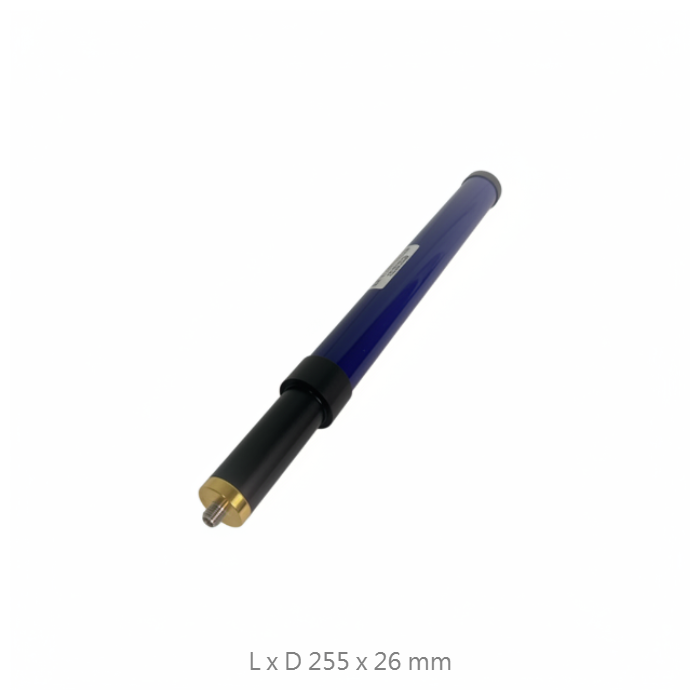

5 GHz Precision Reference Antenna
Model: SL-5300-SF | 4900 MHz - 5400 MHz | CTIA Symmetry Compliant
Technical Specifications
| Frequency Range | 4900 MHz to 5400 MHz |
| Nominal Gain | 2.15 dBi ± 1 dBi |
| Pattern Symmetry | ± 0.1 dB (CTIA Compliance) |
| Dimensions (LxD) | 255 x 26 mm |
| Net Weight (N.W.) | 112 g |
| Standard Connector | SMA-Female / N-Female |
Key Tactical & Engineering Features
CTIA Symmetry Precision
Meets rigorous ± 0.1 dB symmetry standards, providing high-level accuracy for OTA chamber reflectivity evaluation and professional ripple tests.
Feed Point Contact Isolation
The specialized sleeve design prevents the feed cable from interfering with the antenna's effectiveness, ensuring a pure toroidal radiation pattern.
Reference Grade Dominance
Serves as a reliable gain reference and low-gain efficiency standard for calibrating high-frequency tactical monitoring systems.
Lightweight Structural Rigidity
Features a premium fiberglass radome with a professional aesthetic, allowing for easy integration into precision 3D positioning towers.
