Antenna Tripod LM-508
FT-RF Horn Antenna
10 out of
10
-
Description & Specification

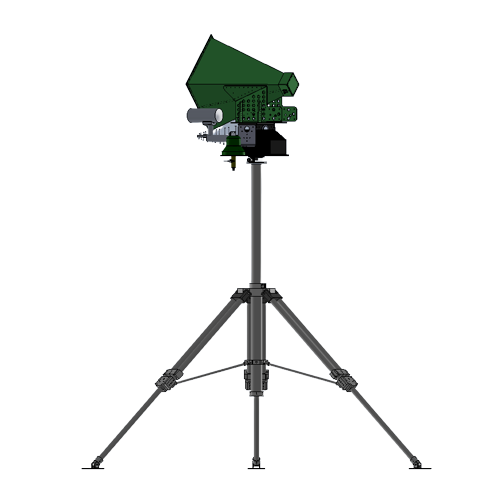

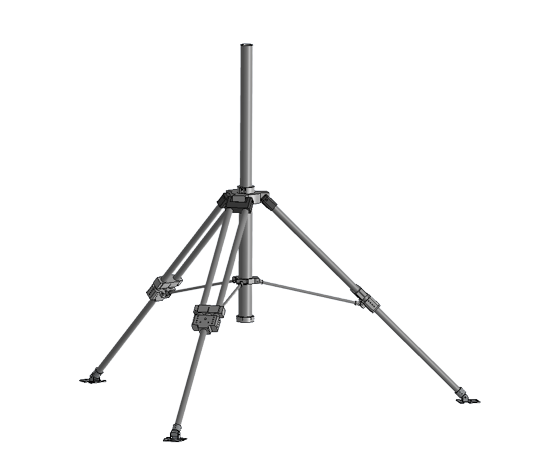

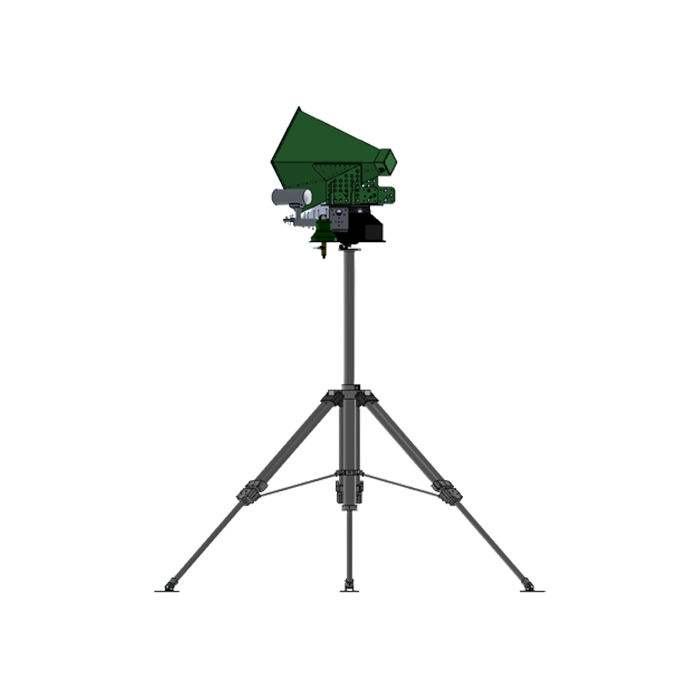

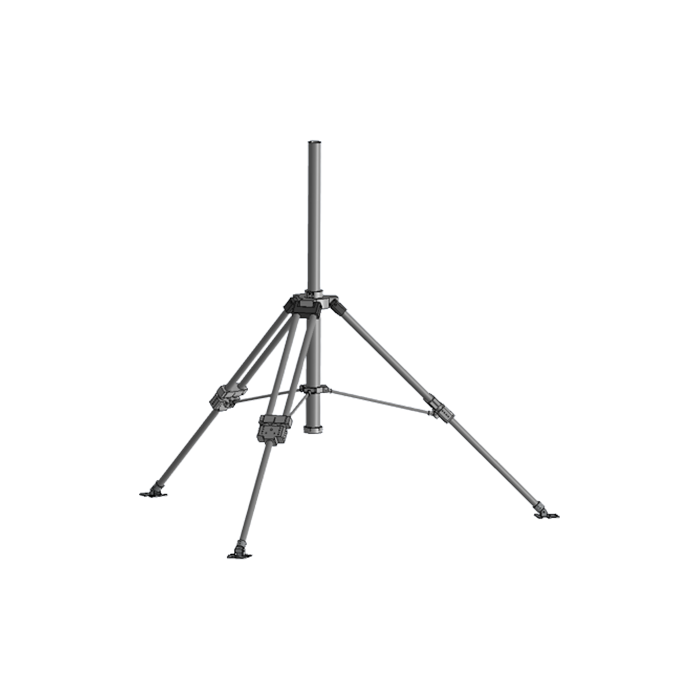

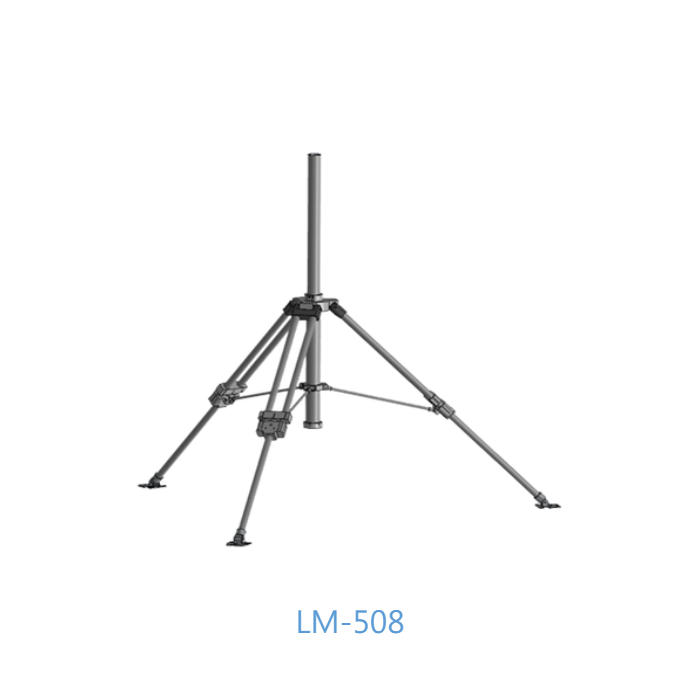

LM-508 Heavy-Duty Glass Fiber Tripod
Tactical Antenna Positioning | 50Kg Payload | Collapsible Design
The LM-508 is a professional-grade tactical antenna tripod engineered and manufactured by Fei Teng Wireless Technology Co., Ltd. (FT-RF) for maximum structural stability in demanding high-frequency RF environments. Constructed from high-strength **Glass Fiber** and high-grade tactical plastic, it provides a sturdy, completely non-metallic platform that effectively eliminates signal distortion and reflection. Designed specifically to support heavy-weight motorized Pan-Tilt units and industrial-scale high-gain antennas, it offers outstanding support with a maximum extract height of **2.5m** and a **50 kg** load capacity. Precision built in **Taiwan**, its collapsible frame layout ensures rapid deployment, quick field calibration, and efficient transportation in tactical vehicles without mechanical drift. It serves as a critical asset for long-range transmitter calibration, electronic warfare validation setups, and advanced microwave field monitoring networks.
General & Structural Parameters
| Maximum Supported Payload | 50 kg (Heavy-Duty Industrial Dominance) |
| Maximum Extract Height | 2.5 m |
| Standard Tripod Height | 2.2 m |
| Material Architecture Composition | High-Strength Glass Fiber & High-Grade Tactical Plastic |
| Tripod Net Weight (N.W) | 12 kg |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF Professional Grade) |
50Kg Heavy-Weight Support
Engineered with a reinforced structural alloy core to support industrial-scale antennas and motorized Pan-Tilt heads without mechanical drift during field or lab deployment.
RF Transparent Construction
The glass fiber construction ensures the tripod is completely non-conductive, protecting pattern signal integrity and field personnel in active microwave zones.
Collapsible Portability
Designed for professional convenience, the LM-508 frame collapses into a compact form factor for efficient storage and rapid transport in deployment vehicles.
Mission-Critical Stability
The sturdy leg design combined with high-friction locking mechanisms provide the unwavering stability required for long-range transmitter calibration and surveillance fields.
Get a Quote / Custom Mounting Solutions
Contact our technical engineering division today to request official quote sheets, specialized mounting plates, active pan-tilt sub-system integration, or technical data regarding environmental survival ratings.
