Antenna Tripod
FT-RF Horn Antenna
10 out of
10
-
Description & Specification

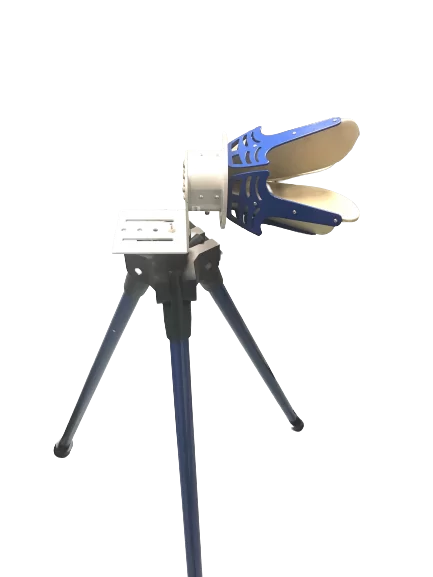

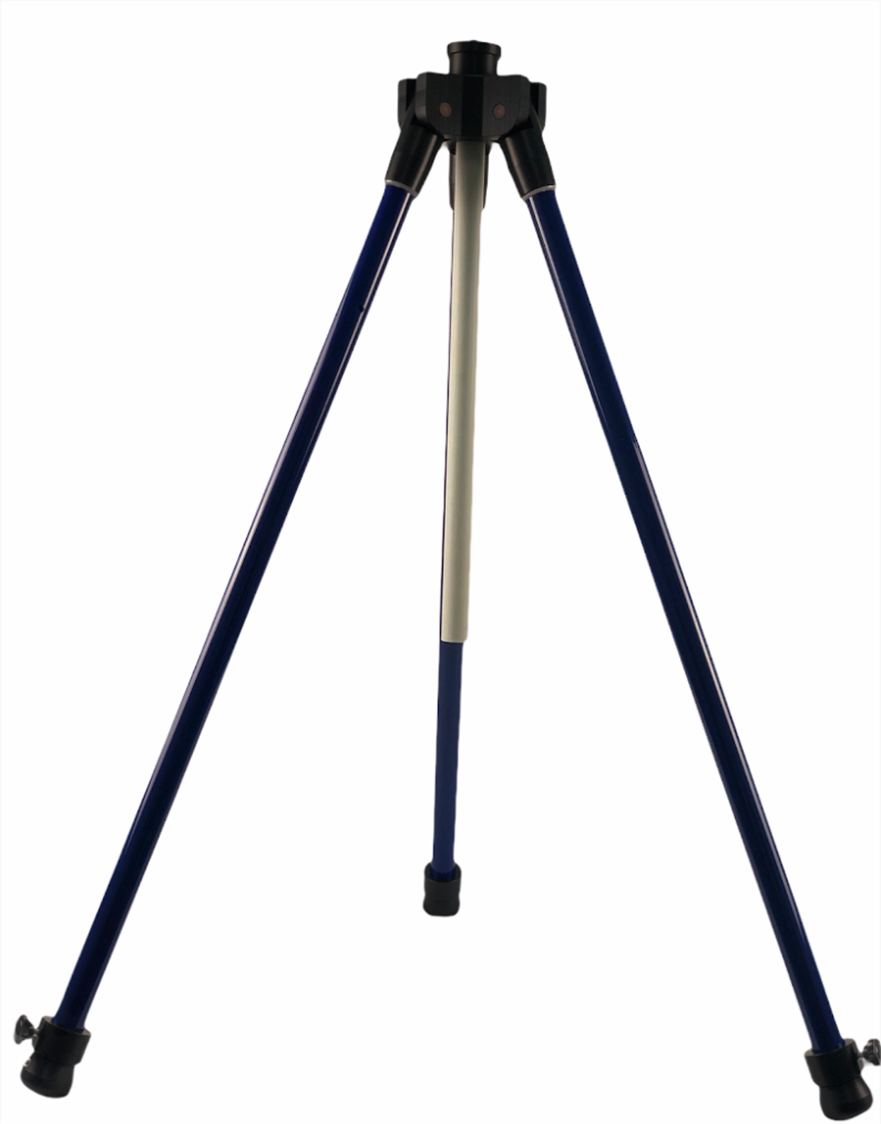

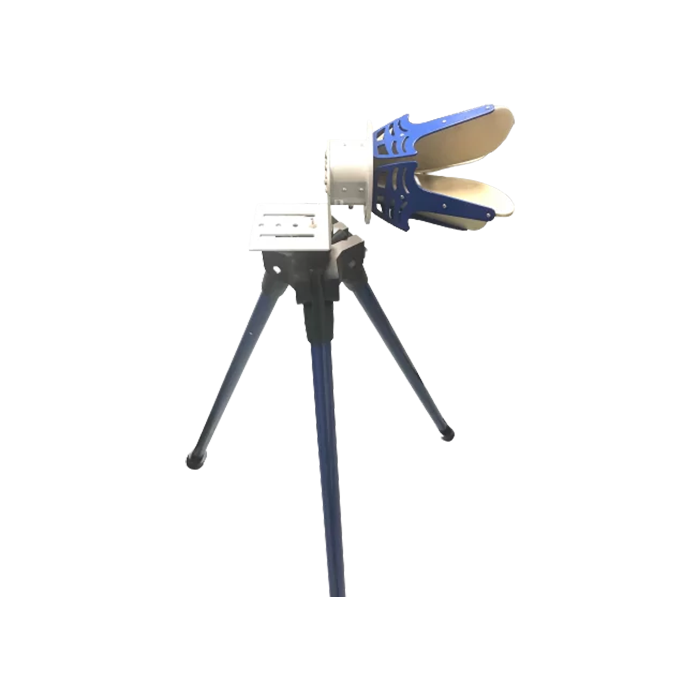

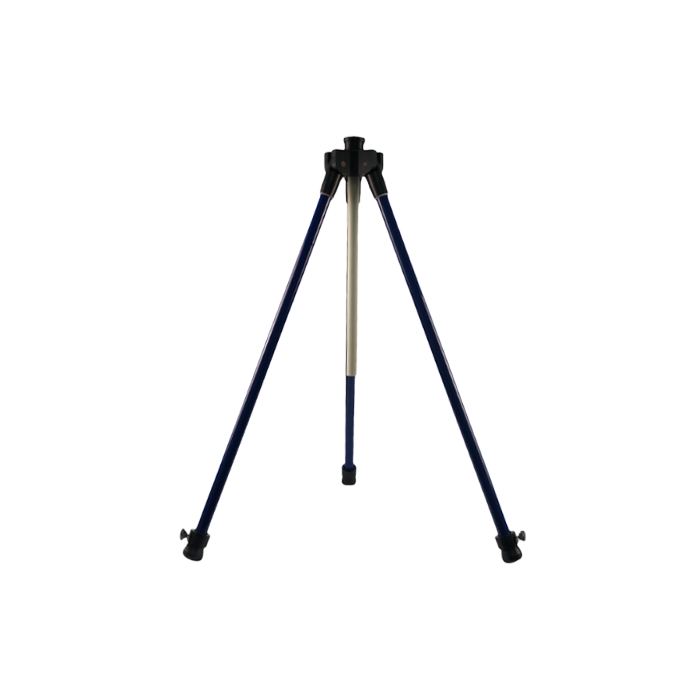

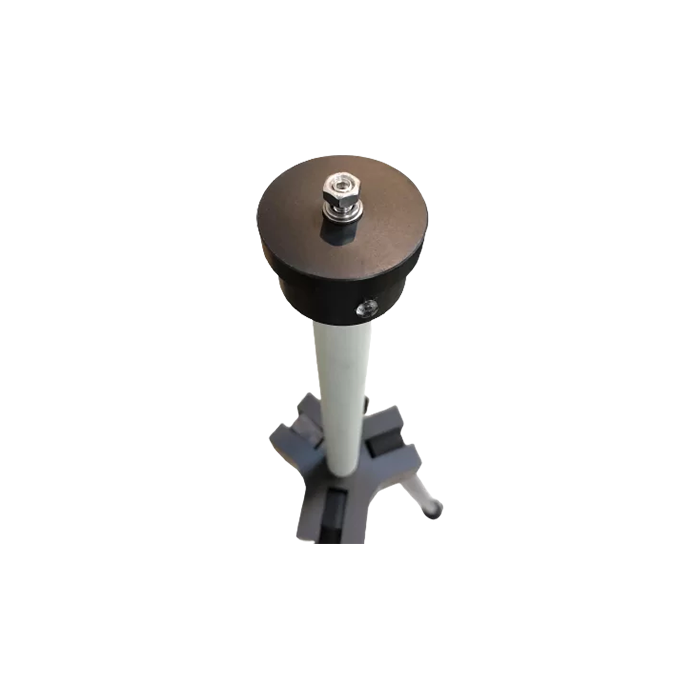

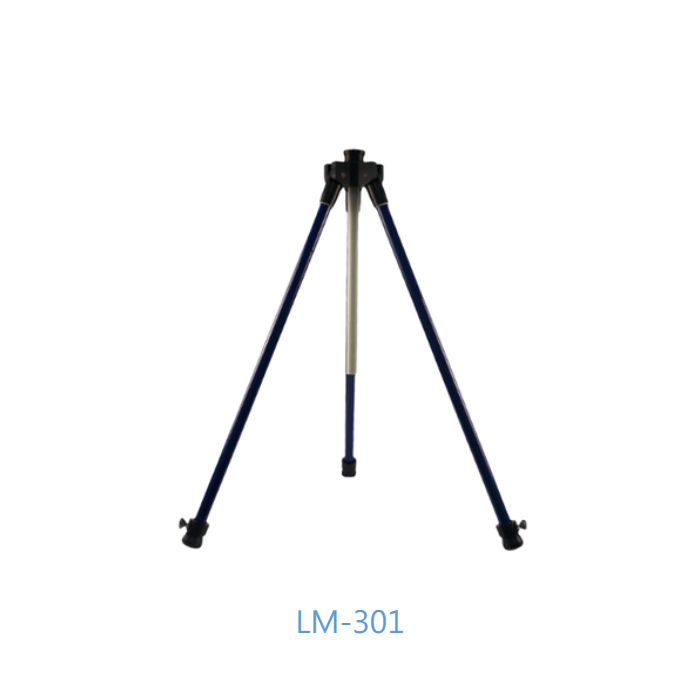

Heavy-Duty Non-Reflective Tripod (Glass Fiber)
EMC Testing Ready | Max Load 22.5 kg | 84.1 cm – 140.5 cm Height Range
FT-RF presents a professional-grade Heavy-Duty Non-Reflective Tripod specifically designed for high-precision antenna mounting, wireless chamber setups, and critical EMC/RF testing environments. Meticulously constructed from high-quality Glass Fiber and high-durability industrial plastics, this entirely non-metallic structure provides a completely non-reflective layout that eliminates signal distortion and scattering parameters. Capable of supporting heavy test instruments and horn antennas up to 22.5 kg, it integrates an easy-to-operate quick height adjustment mechanism spanning 84.1 cm to 140.5 cm. Fully manufactured by FT-RF in Taiwan, this robust 8 kg tripod utilizes a single-motion collapsibility architecture for easy storage and rapid transport across multi-site laboratory and field deployment matrices.
General Specifications
| Material Composition | Glass Fiber and Industrial Plastic (100% Non-Metallic) |
| Maximum Load Capacity | 22.5 kg |
| Interference Profile | Non-Reflective Structure (Ideal for EMC/RF Testing) |
| Application Frameworks | Antenna Mounting, RF Test Setups, Indoor / Outdoor Testing Ready |
Physical Dimensions
| Height Range | 84.1 cm to 140.5 cm |
| Net Weight | 8 kg |
| Storage Mechanism | Single-Motion Collapsibility |
| Manufacturing Origin | Taiwan Design & Manufactured (FT-RF) |
Non-Reflective Material
Constructed entirely from premium Glass Fiber and structural polymer resins to ensure zero electromagnetic interference during highly sensitive anechoic chamber or open-area antenna testing.
Heavy-Duty Capacity

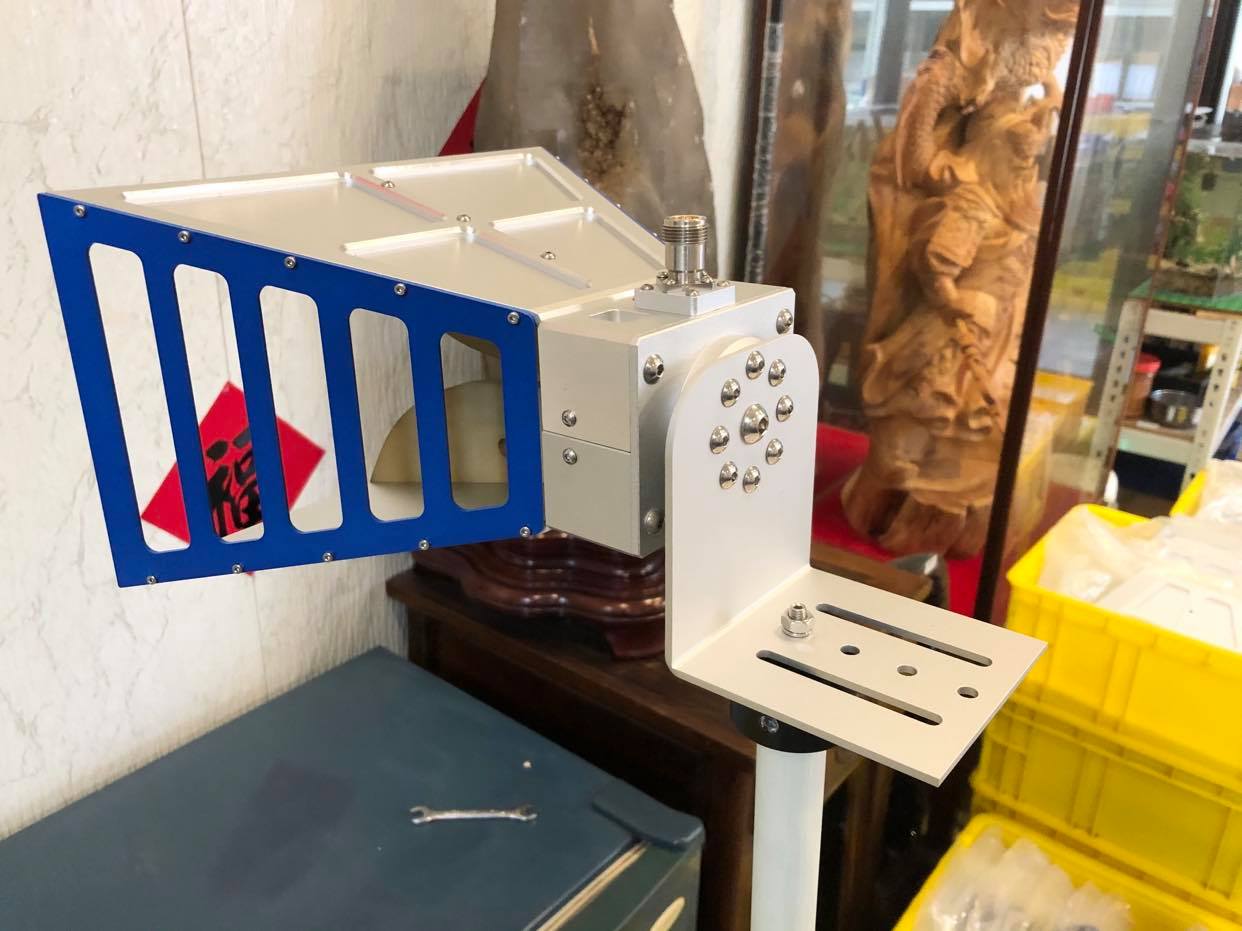

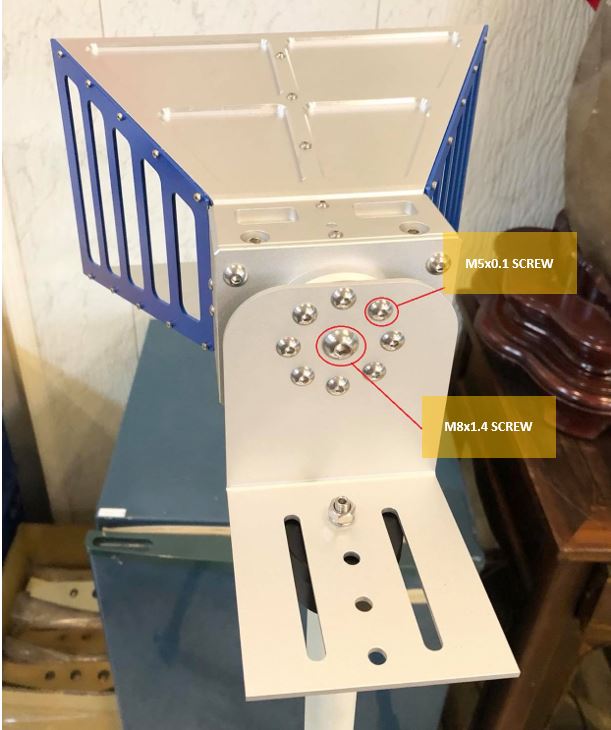

Engineered with cross-braced stability legs to reliably support heavy waveguide payloads and heavy gain horns up to 22.5 kg while maintaining superior centers of gravity.
Taiwanese Engineering Excellence
Precision designed and manufactured in Taiwan under strict industrial quality control standards, ensuring structural rigidity, flatness, and enduring lifespan deployment metrics.
Quick Height Adjustment

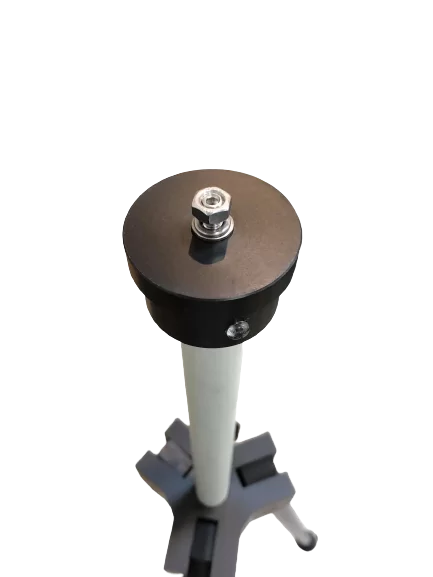

Features an integrated, easy-to-operate locking mechanism for rapid height changes between 84.1 cm and 140.5 cm, allowing for swift alignment shifts on the test floor.
Get a Quote / Bulk Order
Contact our technical engineering team to obtain current pricing, volume availability, custom mounting interfaces, or specialized antenna positioner accessories.
